Entry-Level Hot & Cold End Crushing Machine (EF01)

Name: Entry-Level Hot & Cold End Crushing Machine
Brand: CENGIZLER
SKU: EF01
Availability: InStock

Artisan_EndForging_Craft

Artistic_EndForging_Sculpture

Crafted_EndForging_Creations

Crafted_Forging_Machine_Design

Creative_EndForging_Process

Creative_Forging_Aesthetics

Creative_Forging_Process

Elegant_Forging_Designs

EndForging_Craftsmanship

As the first and simplest model in our end-forging lineup, this entry-level end crushing machine gives workshops an affordable way to get started with fishtail end crushing without the higher cost of our larger multi-function units, while still delivering the reliability workshops need for daily production. It stands out as a genuine hot and cold end crushing machine, capable of crushing cold material up to 8 mm thick and hot material up to 12 mm thick on the same unit, which means a single machine can cover both cold-working jobs during the day and hot-forging work whenever the shop's furnace is already running, rather than needing two separate machines split by material temperature.

⚙️ ECCENTRIC MOLD DESIGN

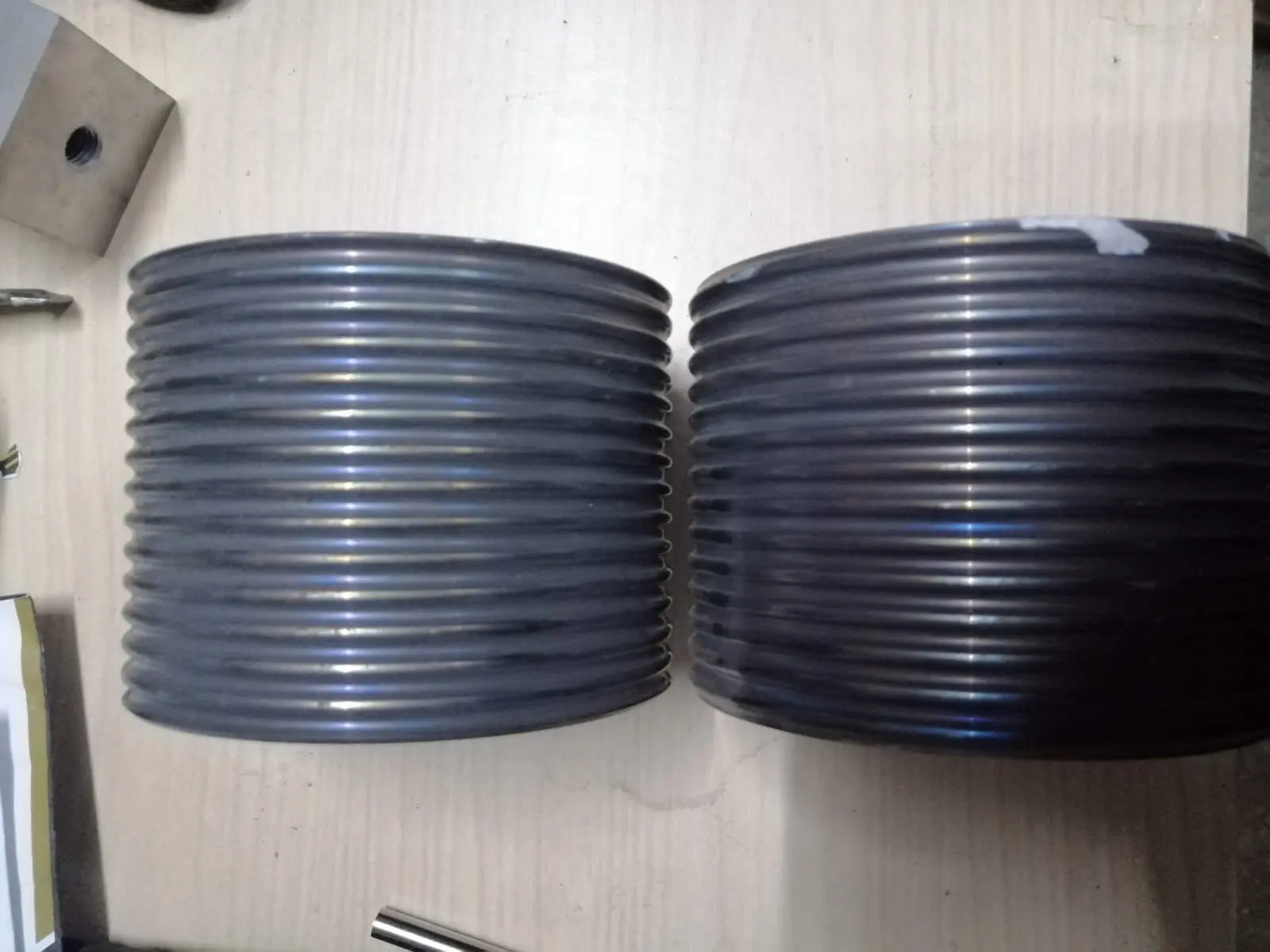

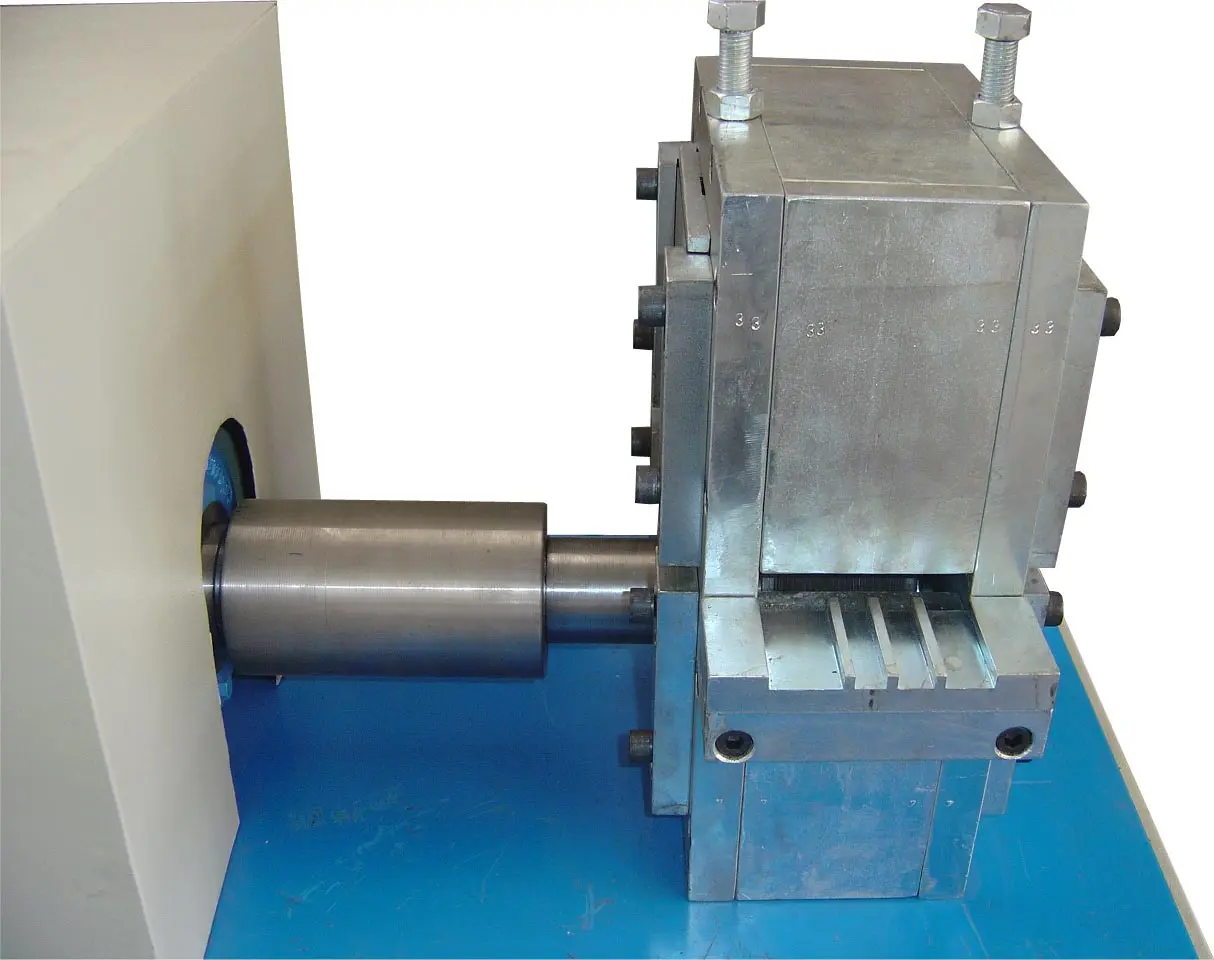

Unlike a conventional basic end forging machine, this eccentric mold end forging machine uses a redesigned cam-mounted mold rather than a fixed die, letting you use almost the entire surface of the mold instead of wearing out one small contact point.

♻️ LONGER MOLD LIFE

When the point where the two molds meet eventually wears down, this long-life mold forging machine only needs the cam holding the mold rotated or replaced — not an entirely new mold — cutting ongoing tooling costs significantly.

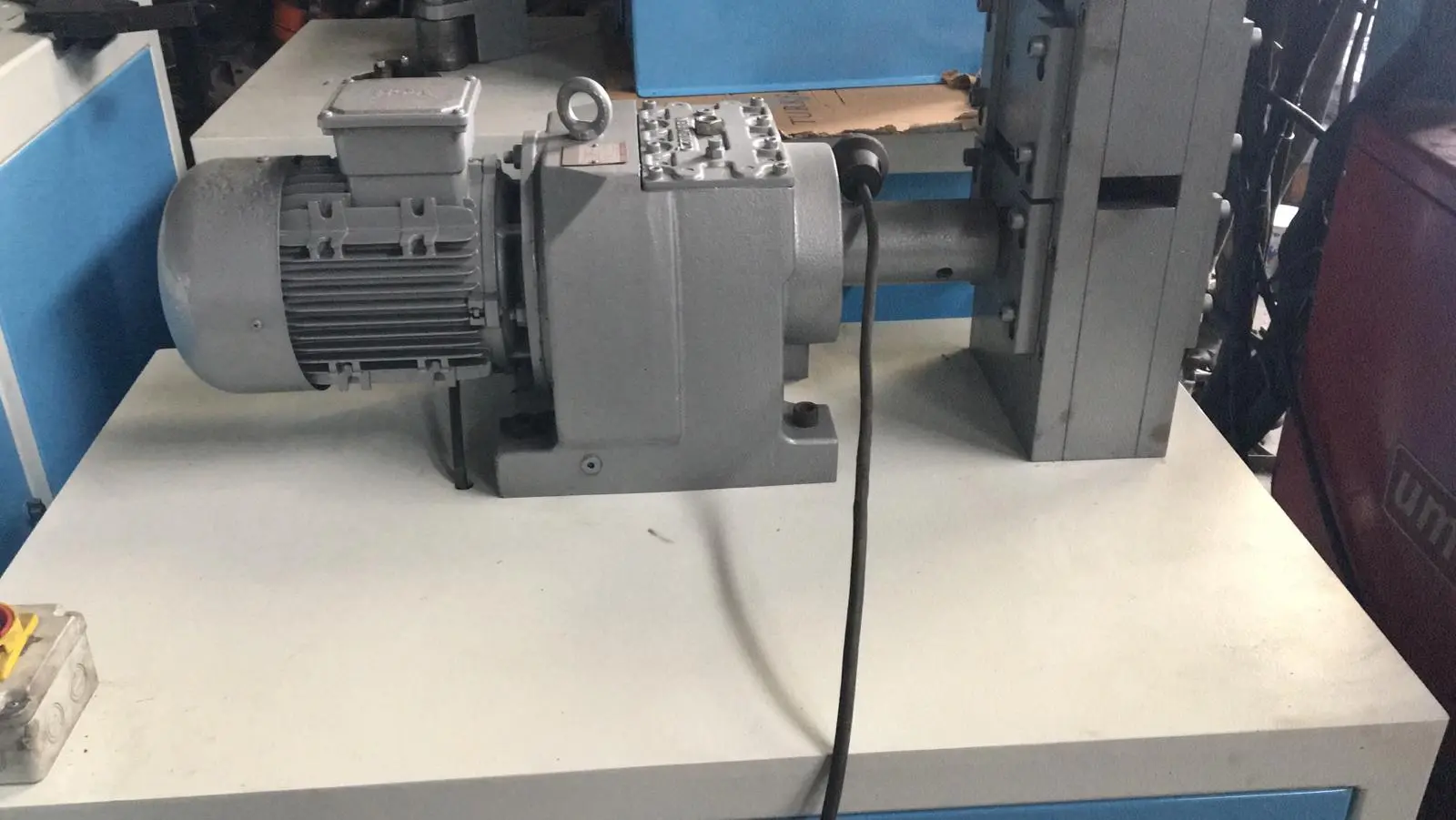

Built as a dependable cold and hot iron forging machine with a 4 kW, 32 RPM motor and weighing 450 kg, this is the machine many of our customers choose first when adding end-forging capability to their workshop, before scaling up to our multi-function models as production volume grows.

📞 Looking for an affordable entry point into end crushing machines? Contact us for pricing and specifications.

Machine EF01

Motor	380 Volt - 3 Phase - 4 kW - 32 Revolutions/minute
Dimensions (Width x Length x Height cm.)	117 x 78 x 120 cm
Weight kg	450kg
Maximum Material Thickness mm	Hot 12mm, Cold 8mm
Maximum Material Width mm	30mm
Operations that can be done with the machine	Edge Bending
Use of Hot Cold Material	Hot or Cold Iron
Warranty	Our product is under company warranty for 12 months from the date of delivery. Electrical components and the motor are not covered by the warranty. When necessary, Cengizler Machinery Company sends a technician to solve the problems. The customer is responsible for the technician's travel, accommodation, meals, daily allowance, and the transportation cost of the necessary spare parts.
Payment	%50 deposit, %50 before delivery
Delivery Conditions	Mersin Factory

The 4 Key Advantages of the Tip Crushing Machine (EF01).
✔ 1.2344 made in Germany Raw Materials
✔ There are four wedge channels on the mold, allowing you to interchange the surpassing sections of the mold.
✔ It can operate both in cold and hot conditions.
✔ You can crush thick irons thanks to the 4 kW motor and reducer.

Why Should You Chose This Product?
✔ Heat-treated, long-lasting molds.
✔ The emergency button is available in our machine for emergency situations.
✔ Adjustable track depth.
✔ We manufacture steel box for transportation, ensuring that your machinery remains undamaged during shipment.

The Most Popular Machine in Turkey. 4 Reasons
✔ Educational and Consulting Services: We provide training and consultancy services to customers for the correct and effective use of our products.
✔ We are proud: Our machines are operating in more than 50 countries.
✔ Professional After-Sales Support and Service: We offer after-sales support and service to our customers.
✔ The machine you purchase is covered by our companys warranty for 12 months.

Top 100 Best Selling Machines Chosen by Customers

✔ User-Friendly Design, Saving Time and Energy!
✔ While our products provide high quality and reliability, we offer our customers economical solutions with competitive prices.
✔ Hundreds of references worldwide. And happy customers :)
✔ Affordable Spare Parts Service, Even if the Warranty Period Expires, We Still Support You!

"Order now to turn your dream wrought iron designs into reality and add a new dimension to your art!"
