Basic Hydraulic Press (CK01 - 8TON)

Artisanal_Iron_Hydraulic_Press_Machine

Artisanal_Iron_Press_Molds_Machine

Artistic_Hydraulic_Craftsmanship_Machine

Artistic_Wrought_Hydraulic_Press_Machine

Artistic_Wrought_Hydraulic_Press_Moulder

Bu_Dynamic_Wrought_Hydraulic_Press_Machine

Crafted_Hydraulic_Press_Molds_Machine

Crafted_Hydraulic_Press_Work_Machine

Crafted_Wrought_Hydraulic_Press_Machine

Crafted_Wrought_Hydraulic_Press_Molds

Creative_Hydraulic_Press_Machine

Creative_Hydraulic_Press_Molds_Machine

Dynamic_Iron_Precision_Hydraulic_Press

Elegant_Wrought_Hydraulic_Press_Machine

Hydraulic_Press_Aesthetics_Machine

Hydraulic_Press_Bends_and_Forms_Machine

Intricate_Hydraulic_Press_Artistry_Machine

Iron_Hydraulic_Press_Machine_Craft

Iron_Hydraulic_Press_Technology_Machine

Precision_Iron_Press_Molds_Forming_Machine

Precision_Wrought_Hydraulic_Press_Details

Refined_Wrought_Hydraulic_Press_Machine

Unique_Iron_Hydraulic_Press_Creation

Unique_Iron_Hydraulic_Press_Creation_Machine

Wrought_Hydraulic_Press_Design_Machine

Wrought_Hydraulic_Press_Machine_Molds

ferforje_cumba_makinasi

swich

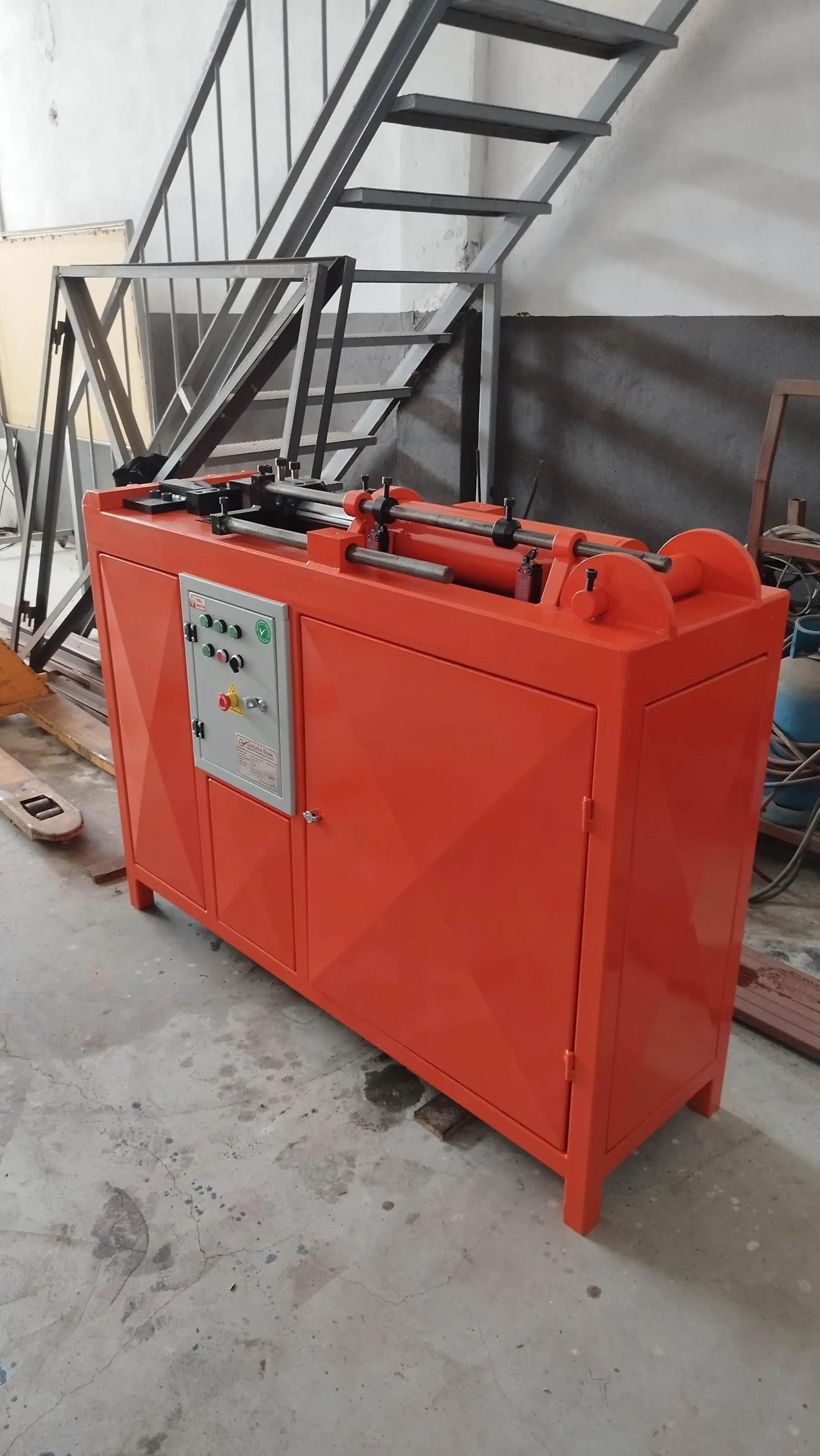

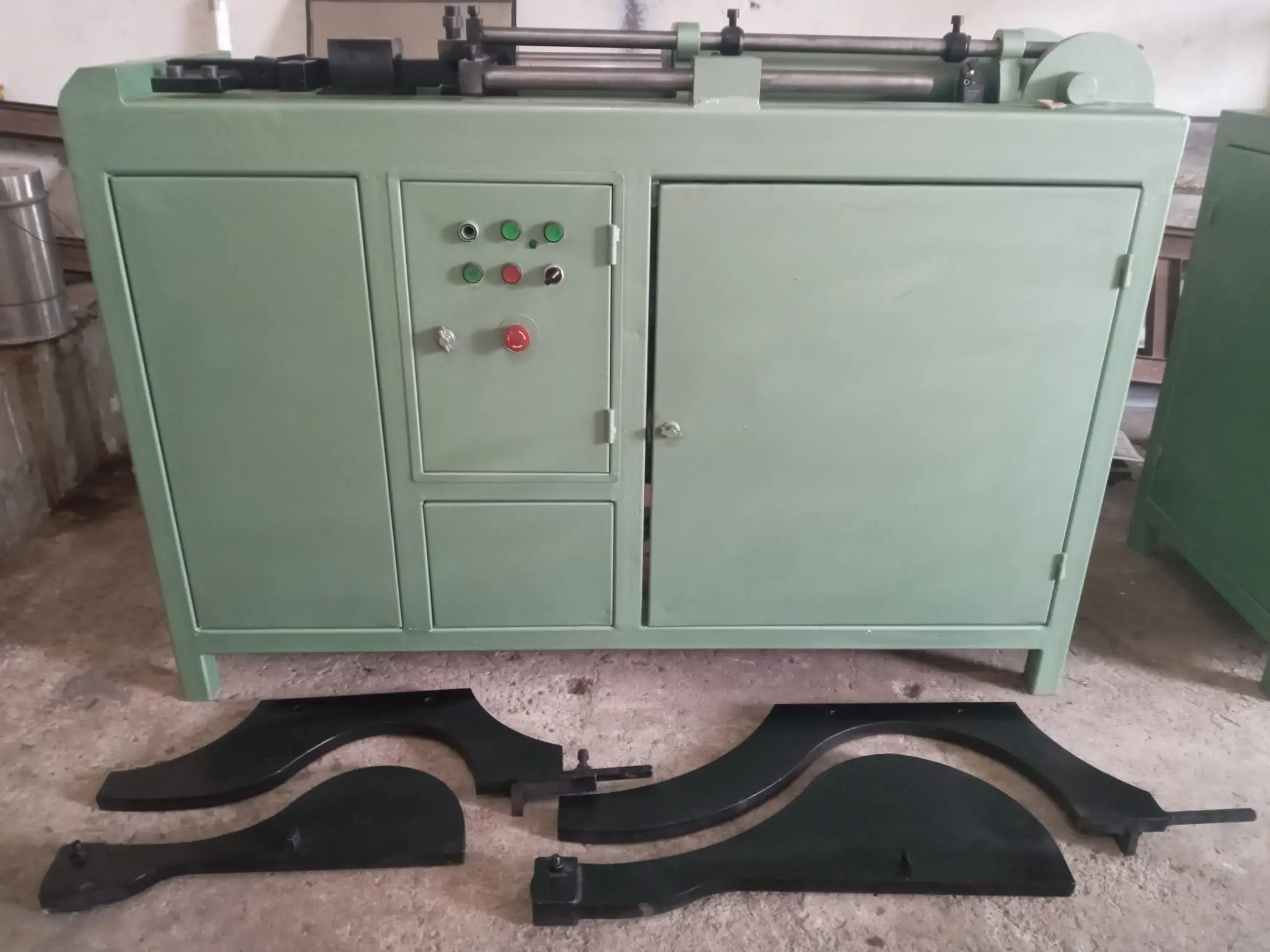

The machine is a horizontal hydraulic, so with various attachments placed in front of it, many different motifs and bends can be produced. It can bend 5000 pieces of balcony railing per day in 8 hours. It can make 35 cuts per minute. Since the cutting molds are symmetrically designed, all 8 sides can be used, thus extending the cutting life to 8 times. Optionally, wrought iron clamp production molds are additionally offered. When you purchase this machine, a AutoCAD drawing file containing 25 different models will be provided to you free of charge. Switches and therefore strokes can be adjusted.

Machine Details
Code	CK01
Piston(Outer Diameter x Shaft Diameter) - Ton	100mm x 50mm - 8 Ton
Motor	380 Volt 3 Phase 4 KW
Dimensions (Width x Length x Height cm.)	163x53x116cm
Weight	450 kg.

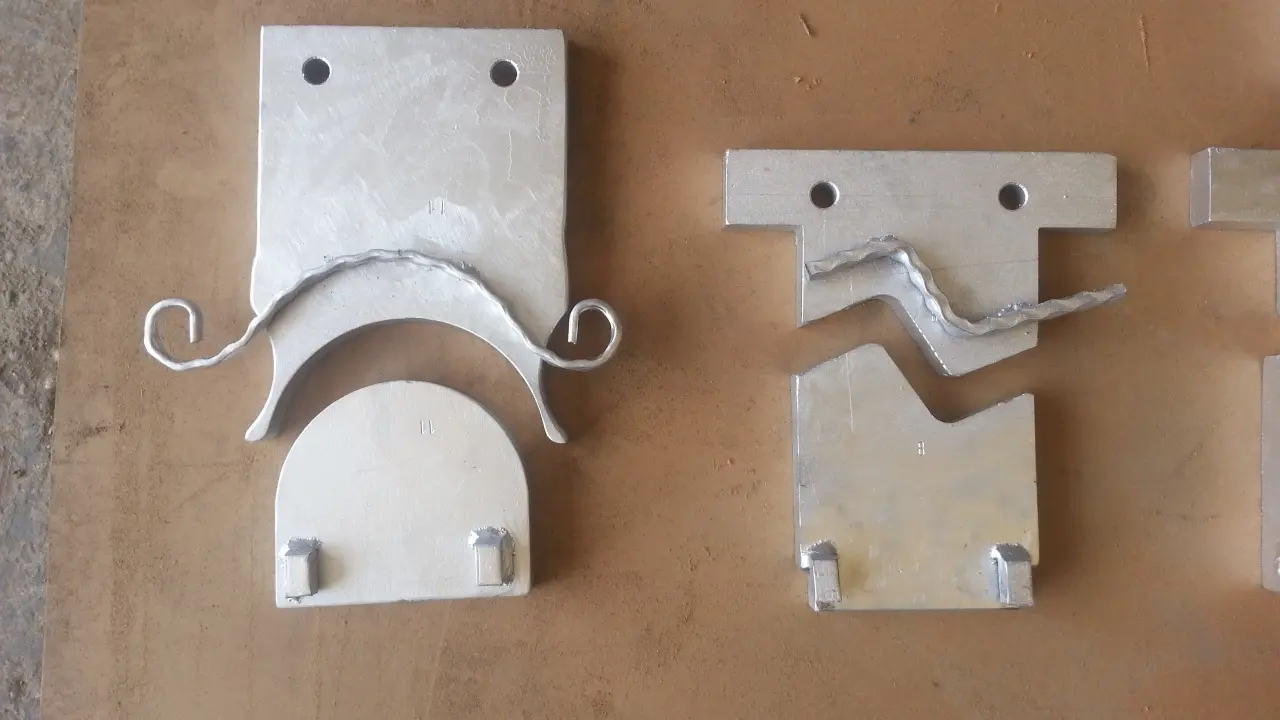

Molds	1 Large Coving Mold 1 Small Coving Mold 1 Blade Smoothing Square Cutting Mold Free Autocad Design File (Plasma Ready 25 Molds) Optional: Clamp Cutting Bending Molds
Maximum Bending Thickness	40mm x 10mm, 25mm x 25mm (Cold)
Maximum Cutting Thickness	40mm x 10mm(Cold)
Production Capacity	5000 Prints / 8hours
Warranty	Our product is under company warranty for 12 months from the delivery date. Electrical components and the motor are not covered by the warranty. When necessary, Cengizler Machinery Company sends a technician to resolve issues. The customer is responsible for the technician's travel, accommodation, meals, daily allowance, and the transportation cost of required spare parts.
Payment	50% Deposit, 50% Prior to Delivery
Delivery Terms	Mersin Factory Delivery

The 4 Important Advantages of the Standard Baluster and Cutting Machine:
✔ The cutting blades can be used on all eight sides.
✔ You can design your own molds.
✔ 25 different plasma cutting ready mold designs are available for free.
✔ You can easily produce clamp strip sheets.

Why Should You Chose This Product?
✔ It will be the essential of your workshop.
✔ The emergency button is available in our machine for emergency situations.
✔ Manual and Automatic Operating Modes
✔ We manufacture steel box for transportation, ensuring that your machinery remains undamaged during shipment.

The Most Popular Machine in Turkey. 4 Reasons
✔ Educational and Consulting Services: We provide training and consultancy services to customers for the correct and effective use of our products.
✔ We are proud: Our machines are operating in more than 50 countries.
✔ Professional After-Sales Support and Service: We offer after-sales support and service to our customers.
✔ The machine you purchase is covered by our companys warranty for 12 months.

Comments from Happy Customers :)
✔ Makine işimi kolaylaştırdı ve sonuçları olumlu yönde etkiledi. Kesinlikle harika bir yatırım oldu! - Fatma Mohamed, Mısır
✔ Makine işimi büyük ölçüde kolaylaştırdı ve sonuçları geliştirdi. Harika bir yatırım oldu! - José da Silva, Brezilya

Top 100 Best Selling Machines Chosen by Customers

✔ User-Friendly Design, Saving Time and Energy!
✔ While our products provide high quality and reliability, we offer our customers economical solutions with competitive prices.
✔ Hundreds of references worldwide. And happy customers :)
✔ Affordable Spare Parts Service, Even if the Warranty Period Expires, We Still Support You!

"Order now to turn your dream wrought iron designs into reality and add a new dimension to your art!"
