Big Basic Hydraulic Press (CK02 - 16TON)

Advanced_Wrought_Iron_Hydraulic_Moulder

Artisanal_Hydraulic_Work

Artisanal_Iron_Press_Molds_Work_Machine

Artisanal_Iron_Press_Work_Machine

Artistic_Press_Molds_Craftsmanship

Artistic_Wrought_Hydraulic_Press_Machine

Artistic_Wrought_Hydraulic_Press_Molds_Machine

Crafted_Hydraulic_Press_Molds_Work_Machine

Crafted_Hydraulic_Press_Work_Machine

Creative_Hydraulic_Press_Molds_Machine

Creative_Hydraulic_Press_Technology_Machine

Creative_Press_Tech_Machine

Dynamic_Iron_Precision_Hydraulic_Press

Dynamic_Wrought_Hydraulic_Machine

Dynamic_Wrought_Hydraulic_Press_Machine

Elegant_Hydraulic_Press_Molds_Machine

Elegant_Wrought_Hydraulic_Press_Design

Elegant_Wrought_Press_Design

Intricate_Hydraulic_Press_Molds_Artistry_Machine

Iron_HydraulicPress_Craft

Precision_Hydraulic_Form_Machine

Precision_Hydraulic_Molds_Machine_Details

Precision_Iron_Press_Forming_Machine

Precision_Iron_Press_Molds_Forming_Machine

Refined_Wrought_Iron_Press_Machine

Unique_Iron_Hydraulic_Press_Creation_Machine

WroughtIron_Hydraulic_Press_Craft_Machine

ferforge_machine

pano

swichh

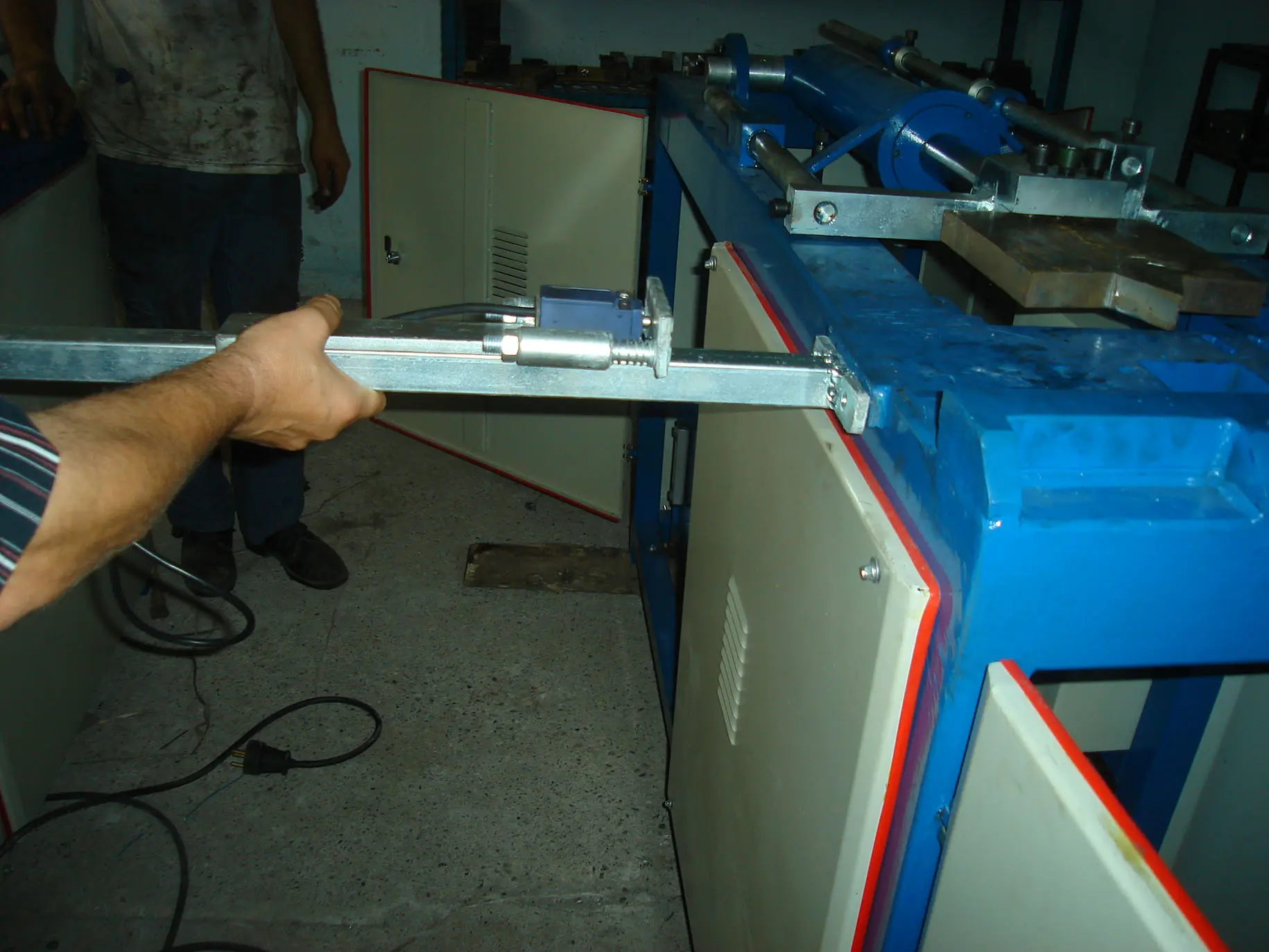

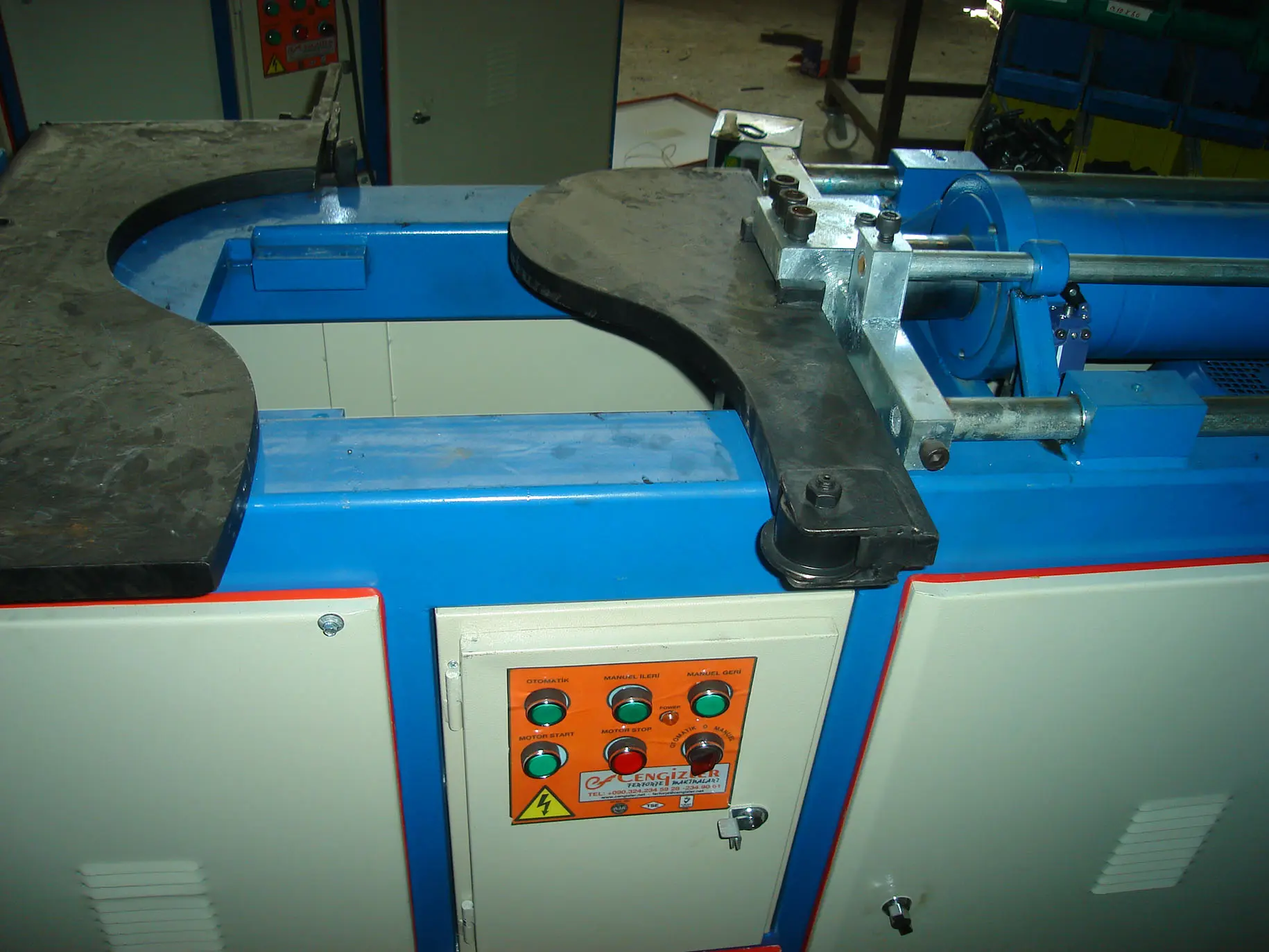

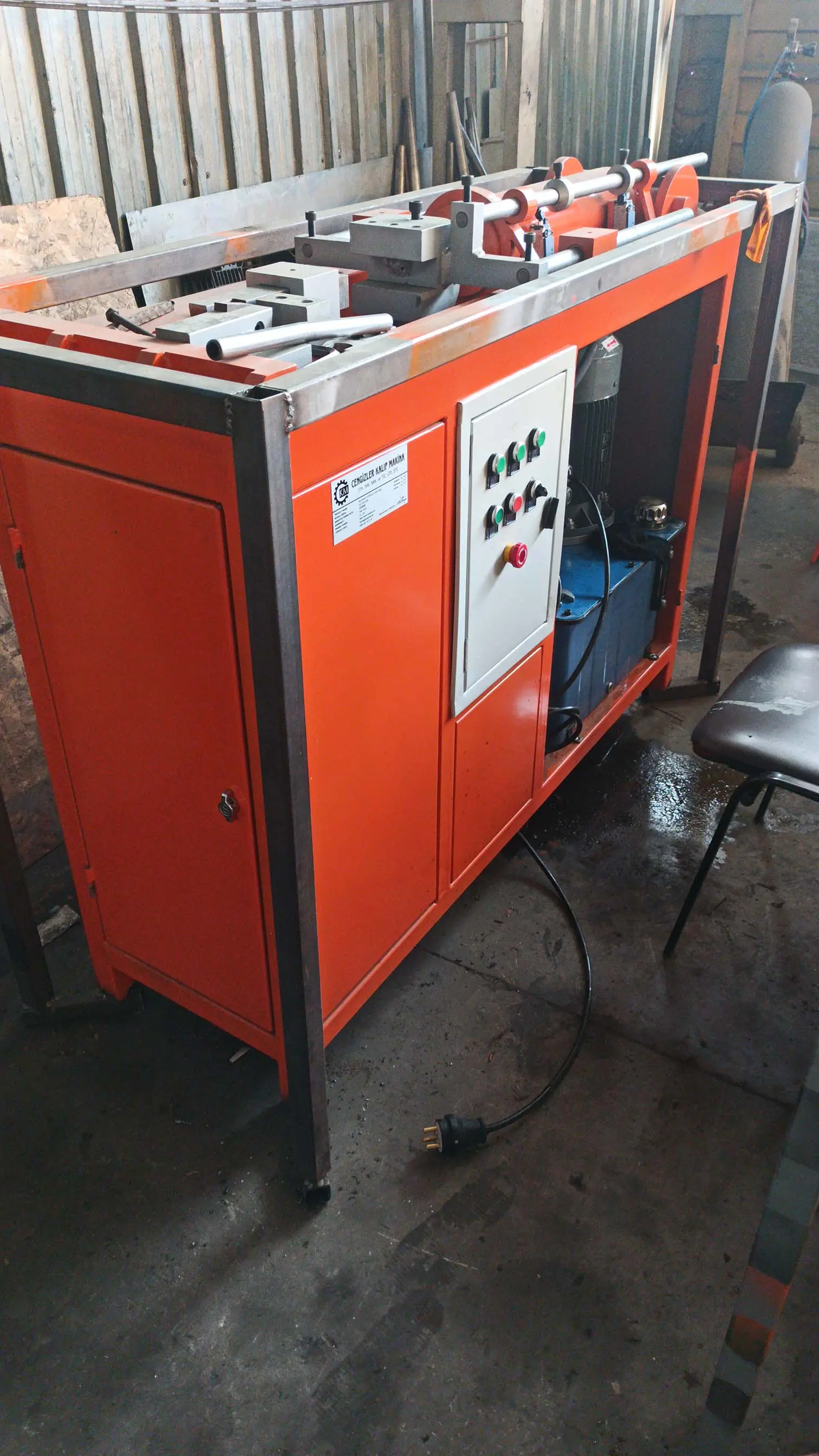

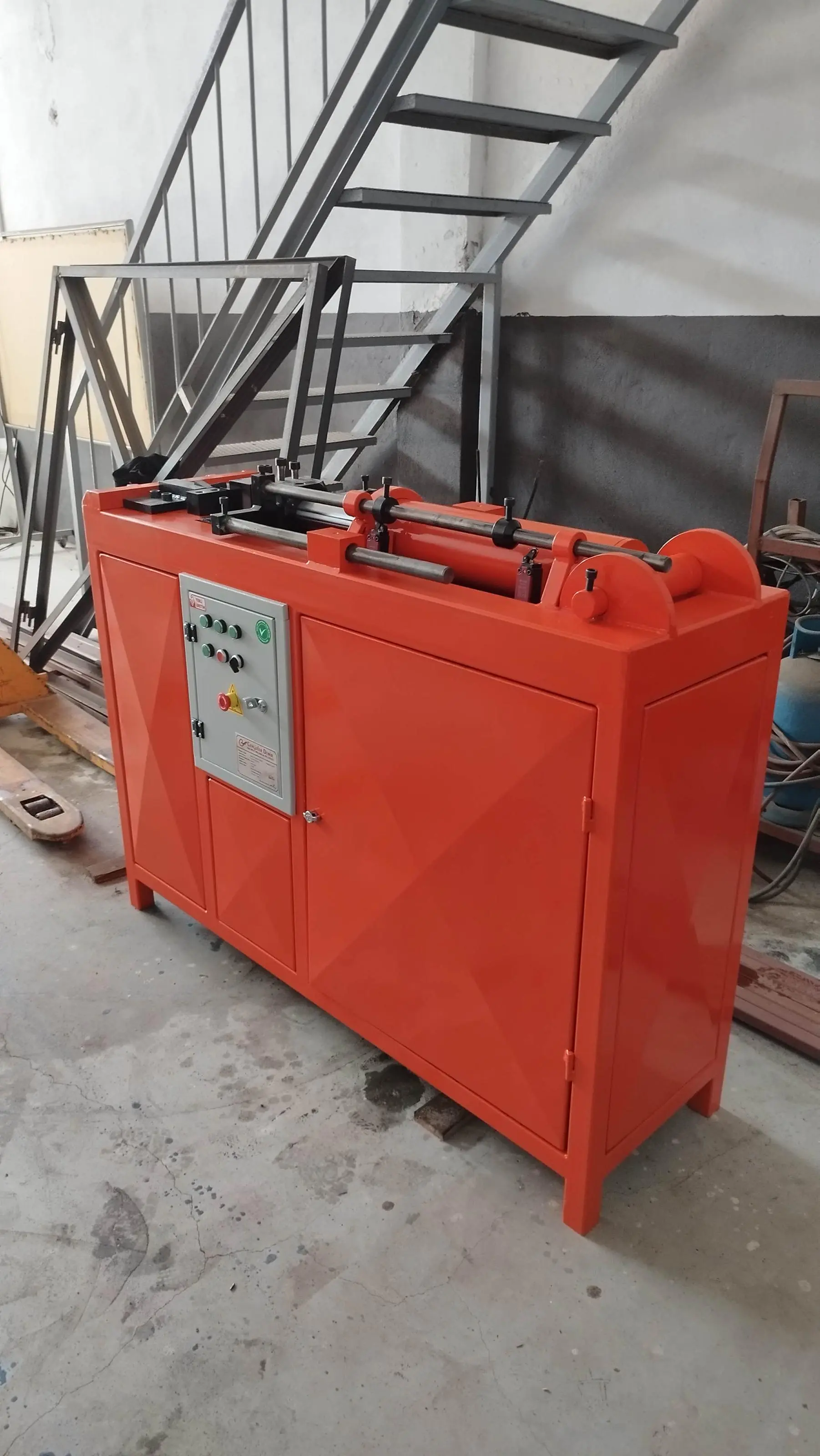

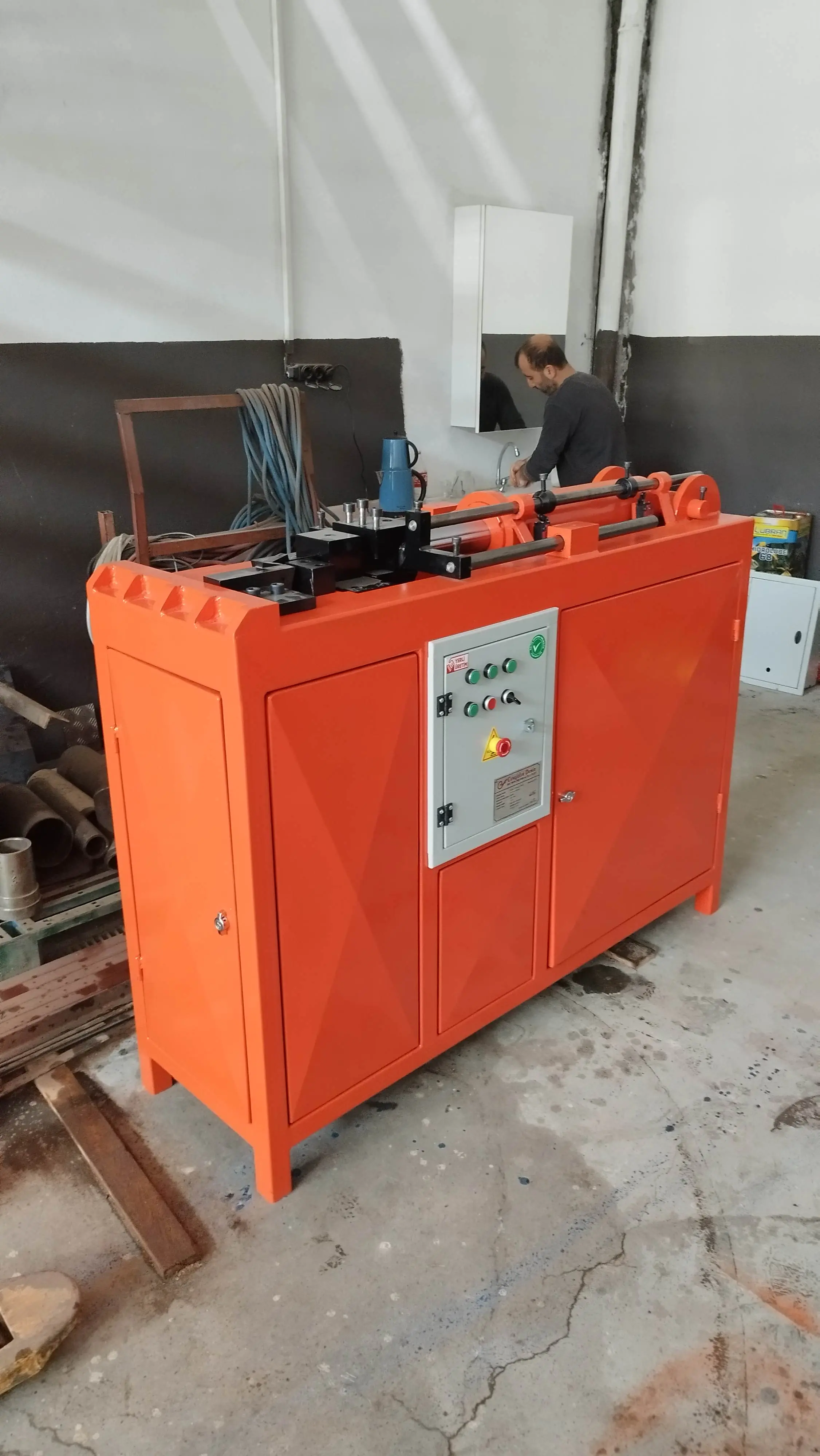

The machine is a horizontal hydraulic, so with various attachments placed in front of it, many different motifs and bends can be produced. It can bend 5000 pieces of balcony railing per day in 8 hours. It can make 35 cuts per minute. Since the cutting molds are symmetrically designed, all 8 sides can be used, thus extending the cutting life to 8 times. Optionally, wrought iron clamp production molds are additionally offered. When you purchase this machine, a AutoCAD drawing file containing 25 different models will be provided to you free of charge. Switches and therefore strokes can be adjusted.

Exploring the Beauty and Durability of Wrought Iron

Wrought iron has long been celebrated for its timeless beauty, durability, and versatility in architectural and decorative applications. From elegant wrought iron railings to ornate rod iron railings, this material adds a touch of sophistication and charm to any space.

One of the most iconic uses of wrought iron is in the creation of iron wrought gates. These gates not only provide security but also serve as stunning focal points for entryways and driveways. Additionally, wrought iron banister rails are essential for both safety and style in staircases and balconies.

While the terms "rot iron" or "wrote iron" are often used, the correct term is "wrought iron." Whether you're searching for rot iron gates, raw iron gates, or rot iron railings, the beauty and durability of wrought iron are unmatched.

For those interested in wrought ironwork, whether it's wrought iron railings near me or wrought iron stair railing, this material offers timeless elegance and durability that can enhance any architectural or decorative project.

BIG HORIZANTAL PRESS
Code	CK02

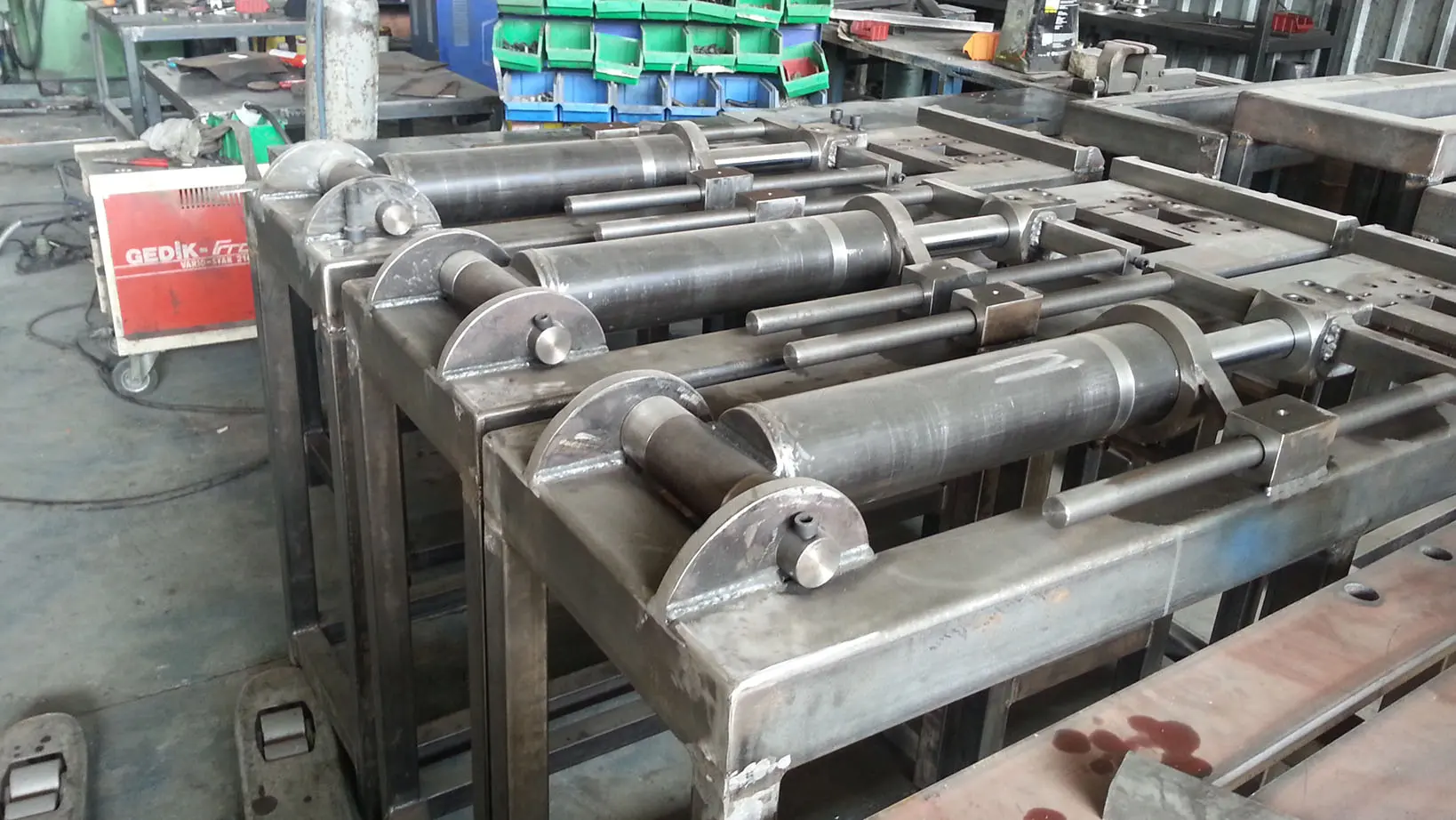

Piston(Outer Diameter x Shaft Diameter) - Ton	120mm x 70mm - 16 Ton

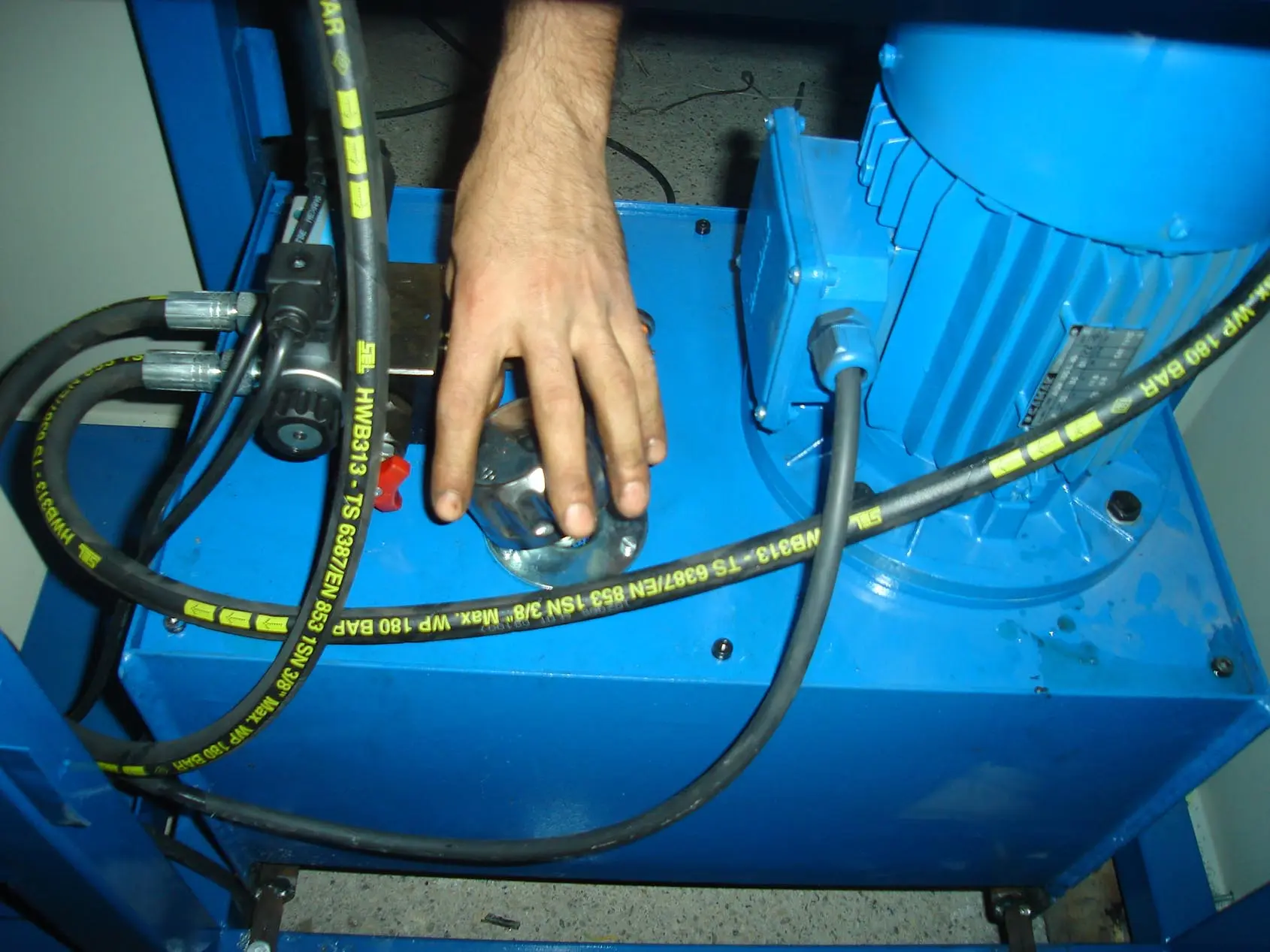

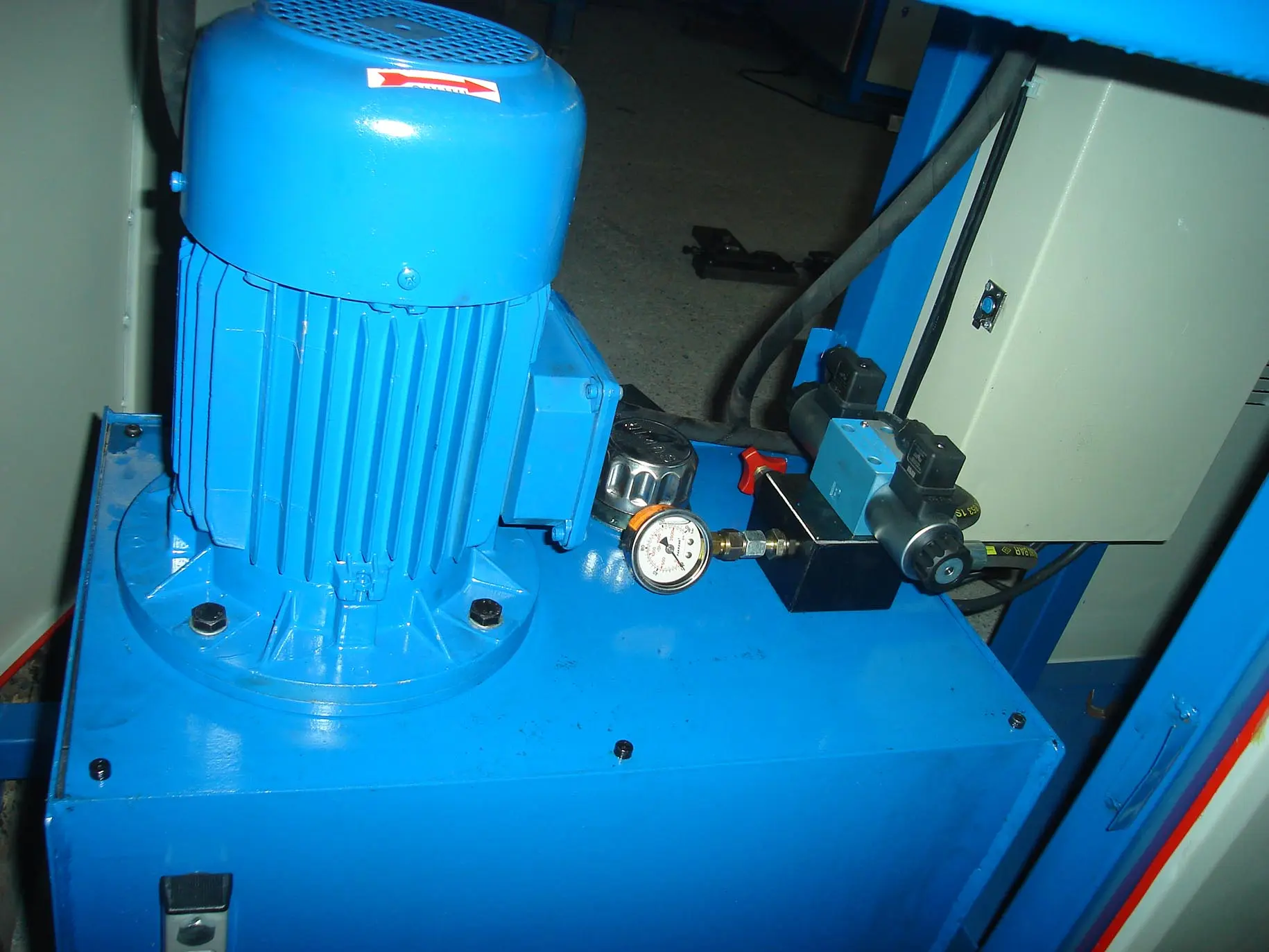

Motor	380 Volt 3 Phase 7.5 kw
Dimensions (Width x Length x Height cm.)	163x53x116cm
Weight	500 kg.

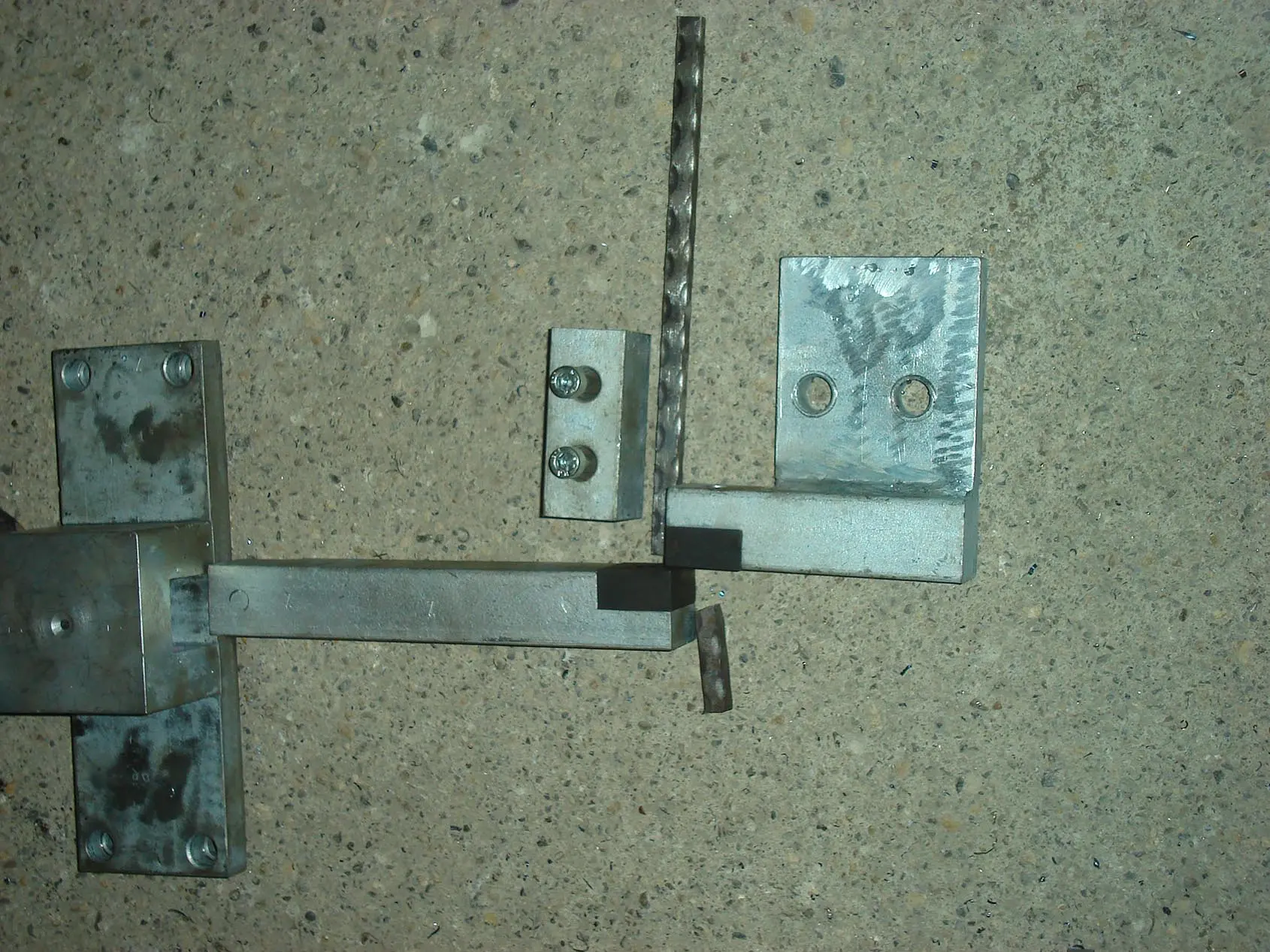

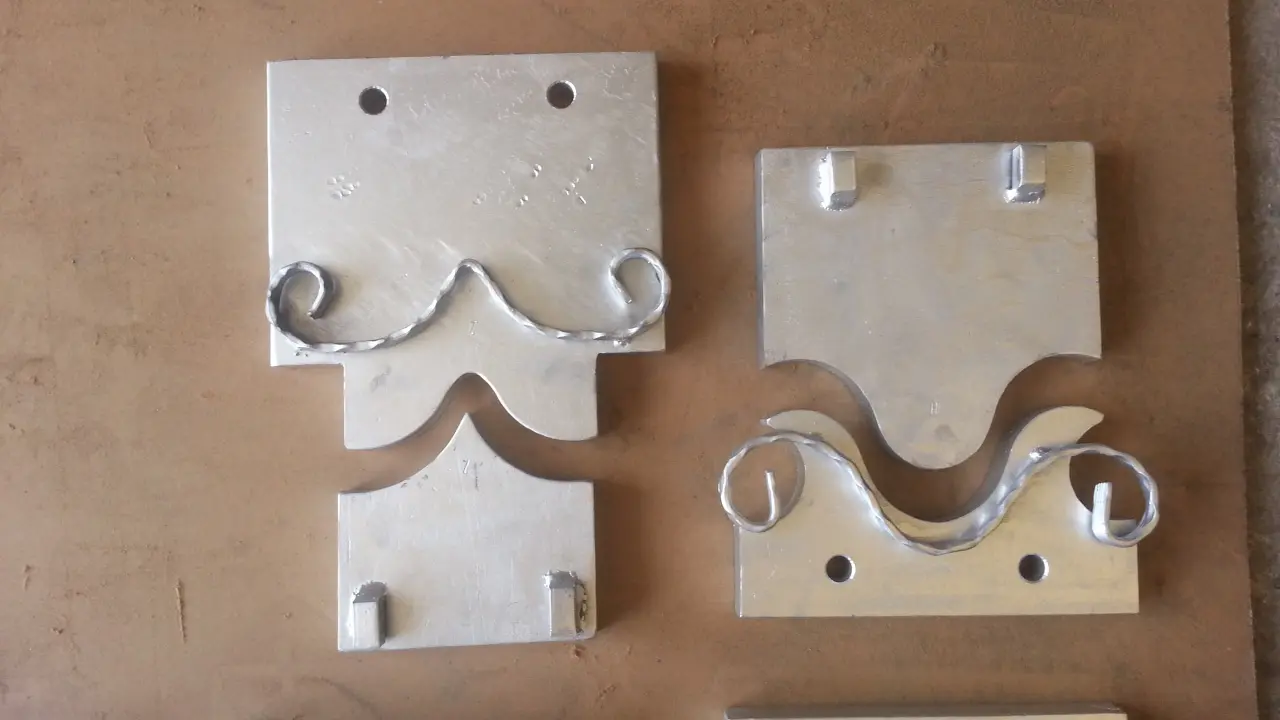

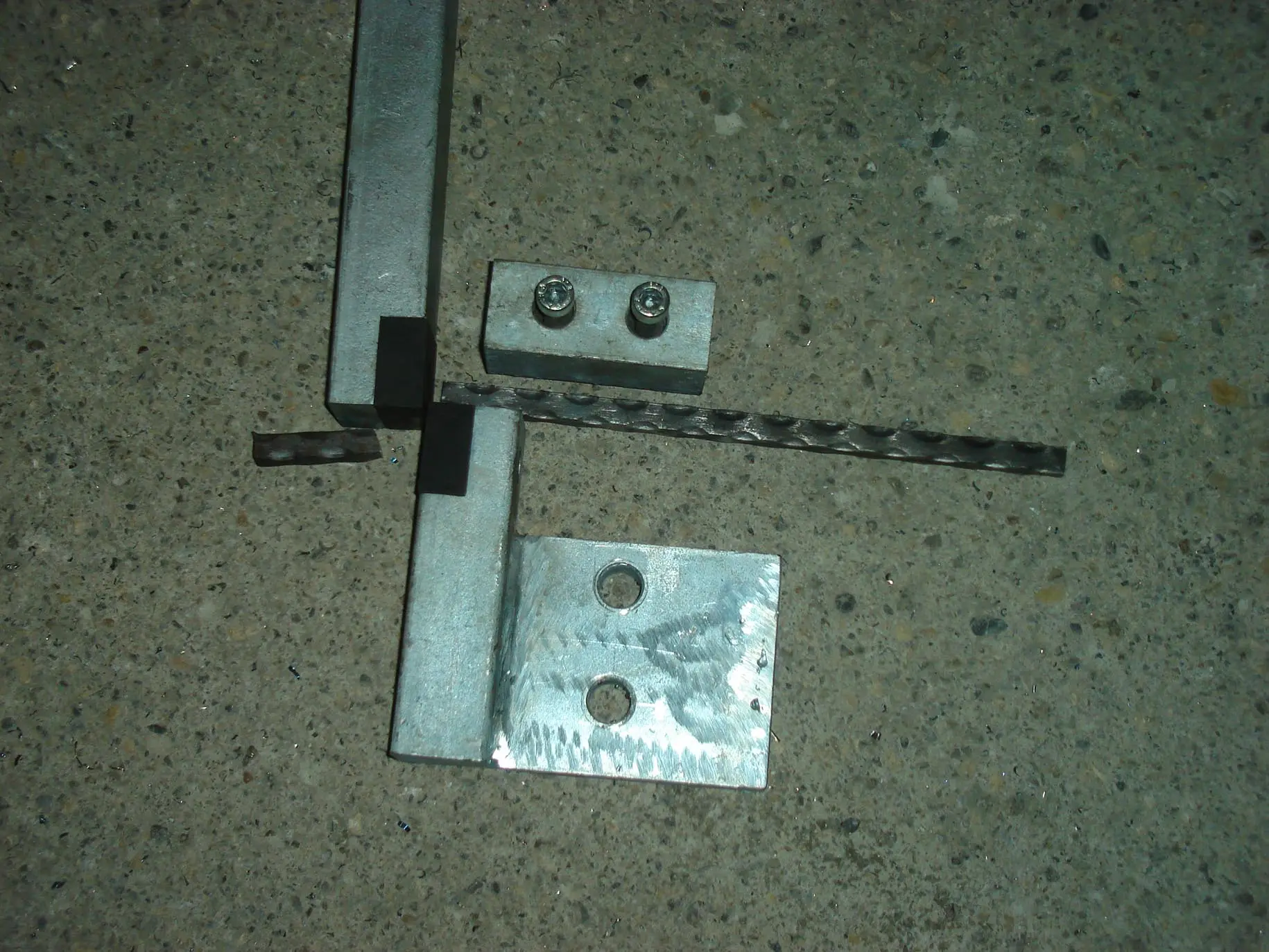

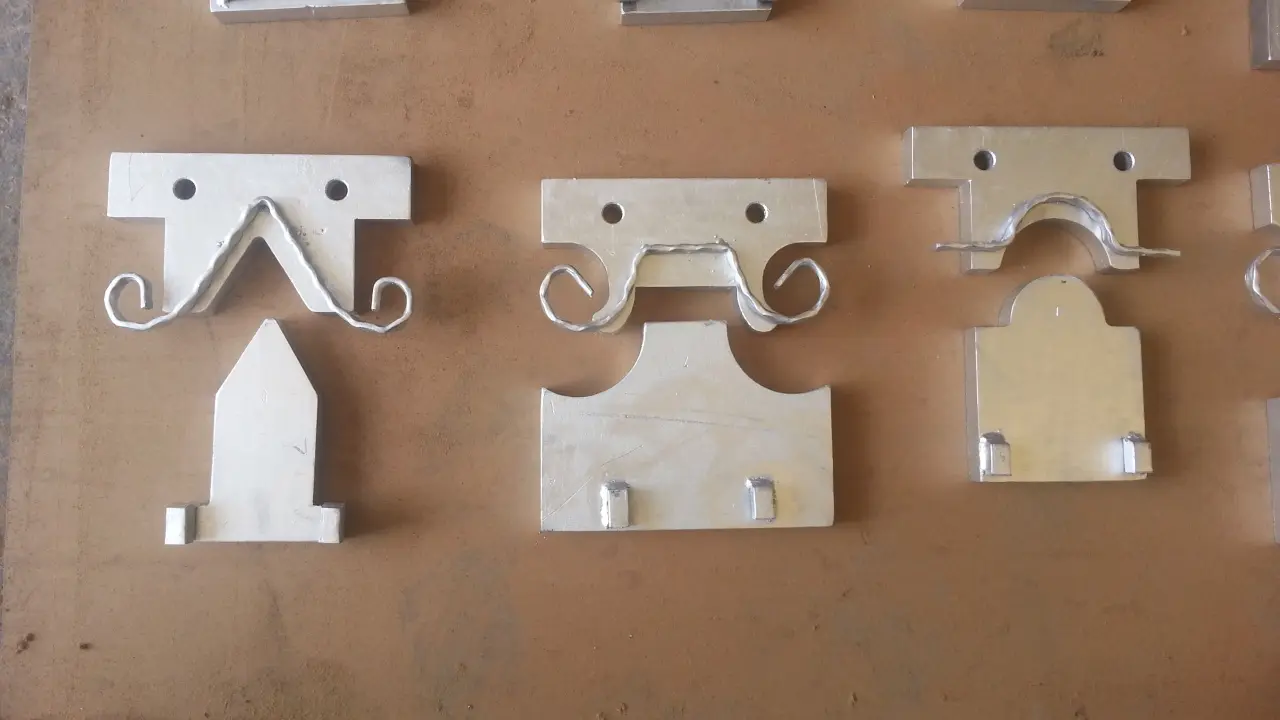

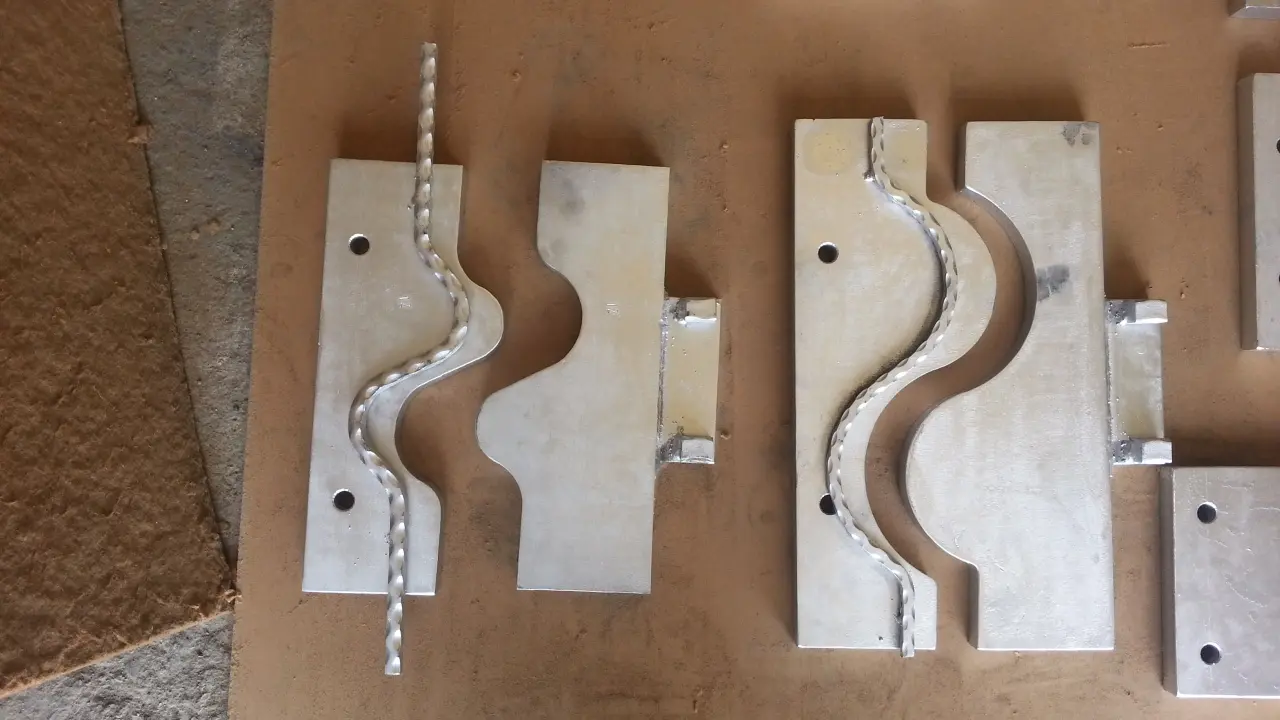

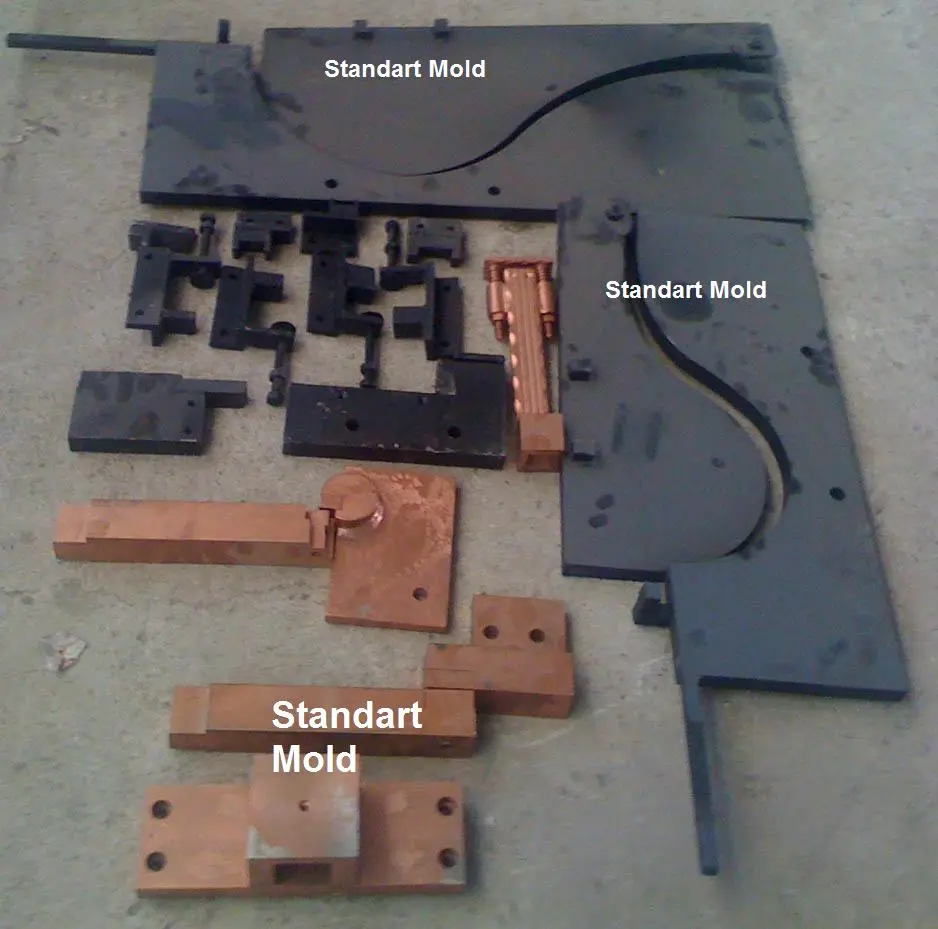

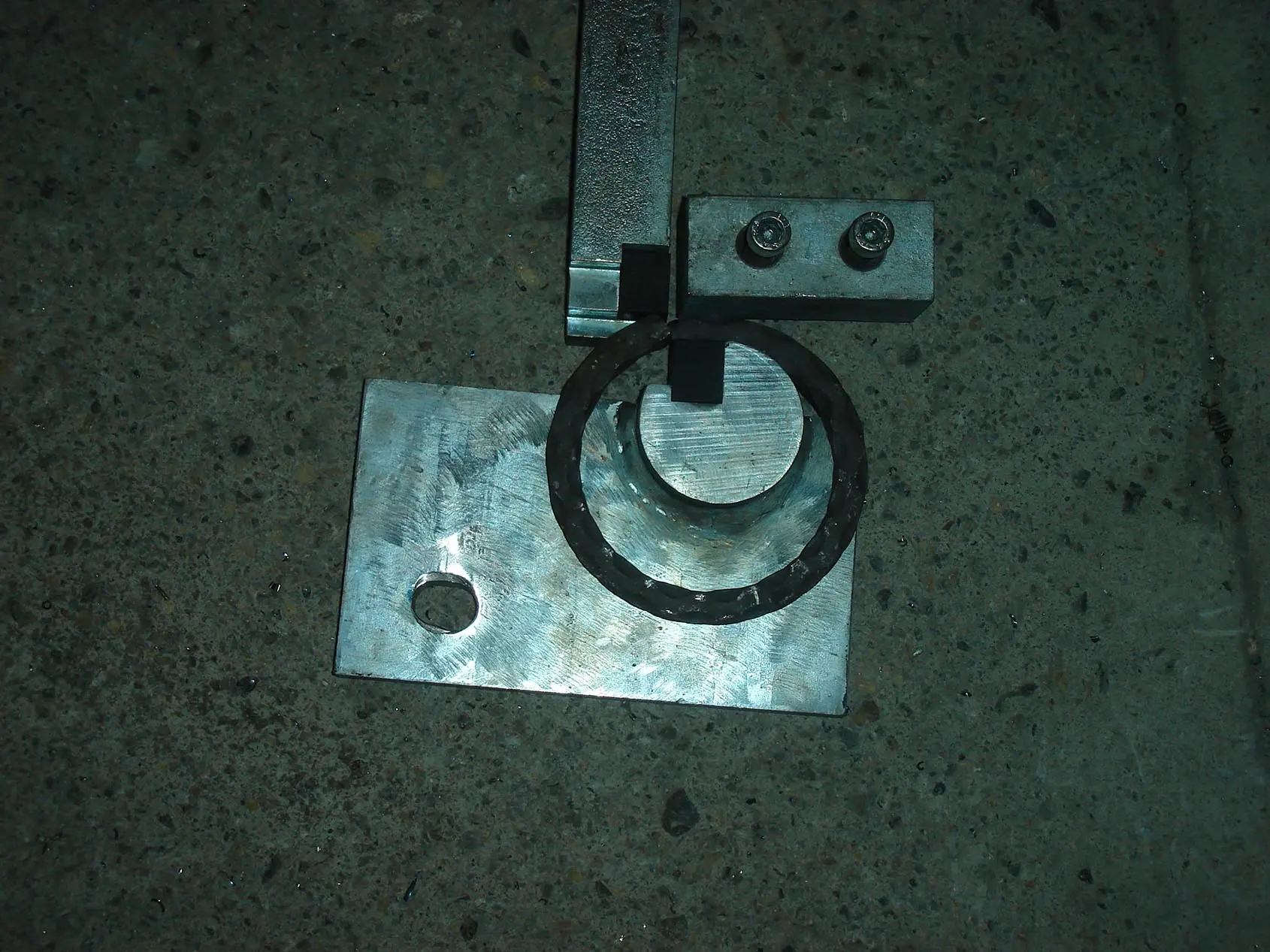

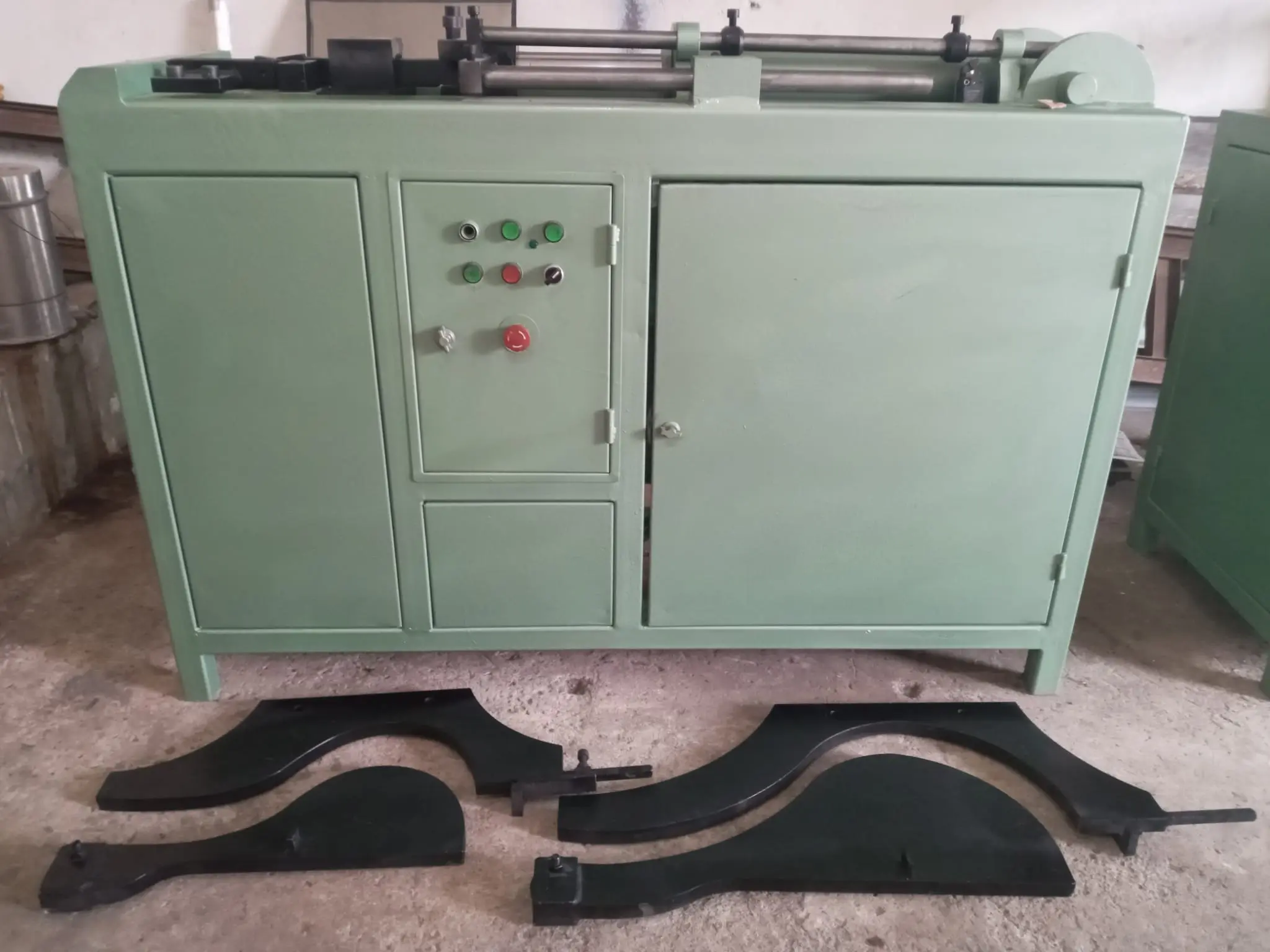

Molds	1 Large Coving Mold 1 Small Coving Mold 1 Blade Smoothing Square Cutting Mold Free Autocad Design File (Plasma Ready 25 Molds) Optional: Clamp Cutting Bending Molds
Maximum Bending Thickness	50mm x 10mm, 25mm x 25mm (Cold)
Maximum Cutting Thickness	50mm x 10mm(Cold)
Production Capacity	5000 Prints / 8hours
Payment	50% Deposit, 50% Prior to Delivery
Warranty	Our product is under company warranty for 12 months from the delivery date. Electrical components and the motor are not covered by the warranty. When necessary, Cengizler Machinery Company sends a technician to resolve issues. The customer is responsible for the technician's travel, accommodation, meals, daily allowance, and the transportation cost of required spare parts.
Delivery Terms	Mersin Factory Delivery

The 4 Important Advantages of the Standard Baluster and Cutting Machine:

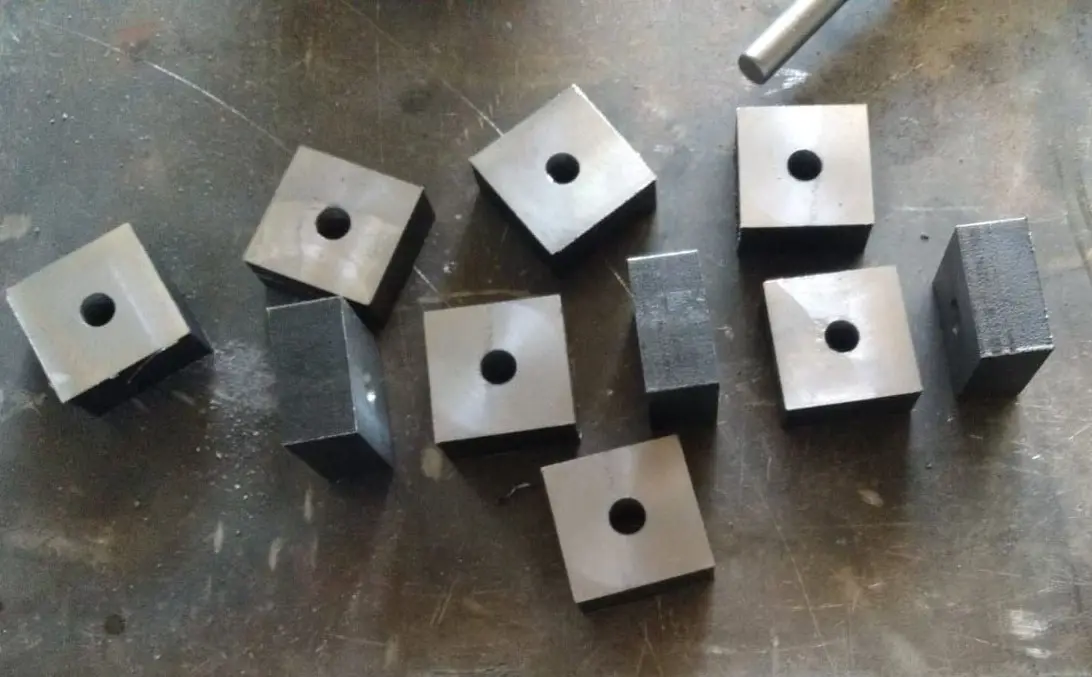

✔ The cutting blades can be used on all eight sides.
✔ You can design your own molds.
✔ 25 different plasma cutting ready mold designs are available for free.

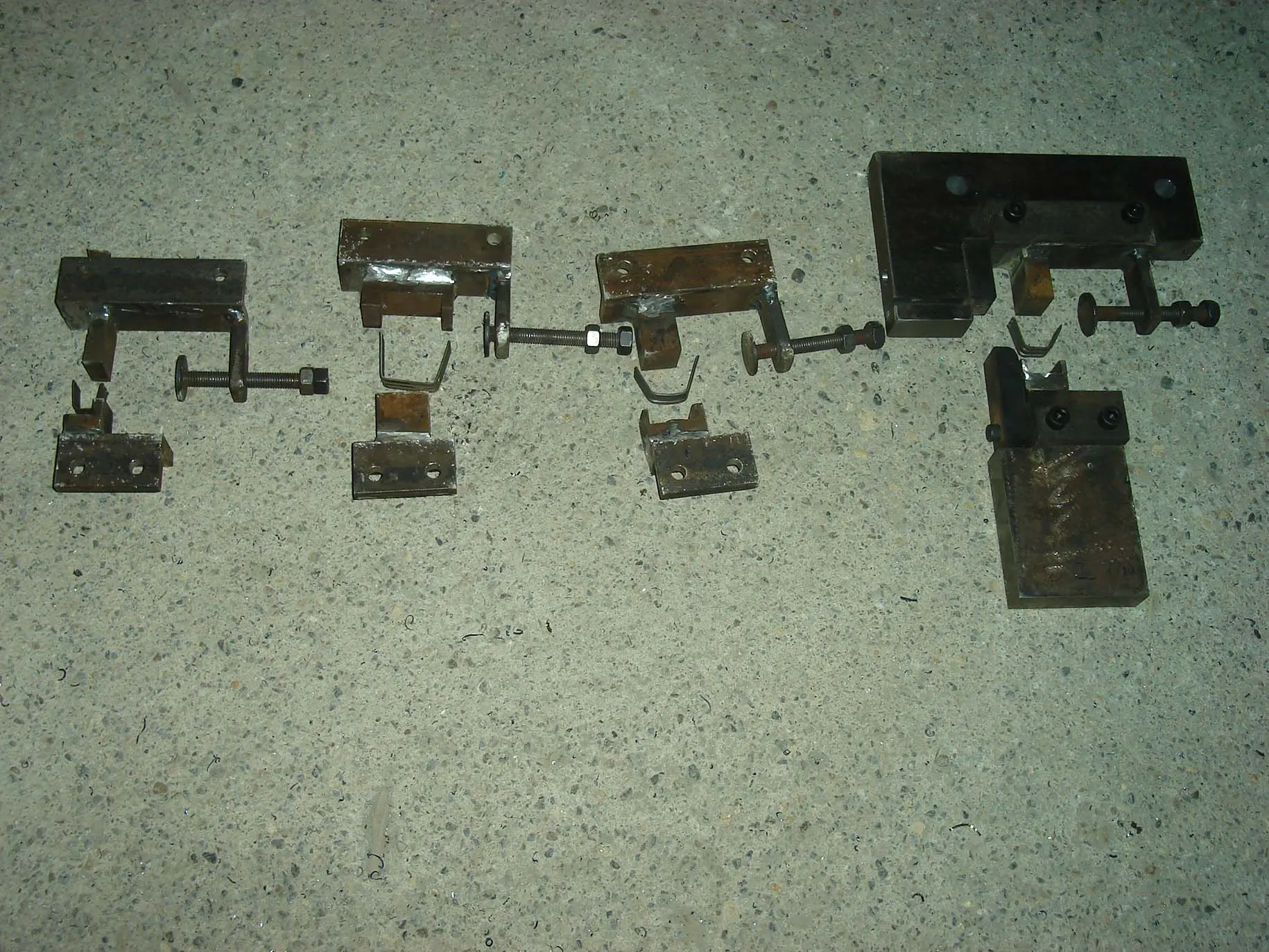

✔ You can easily produce clamp strip sheets.

Why Should You Chose This Product?
✔ It will be the essential of your workshop.

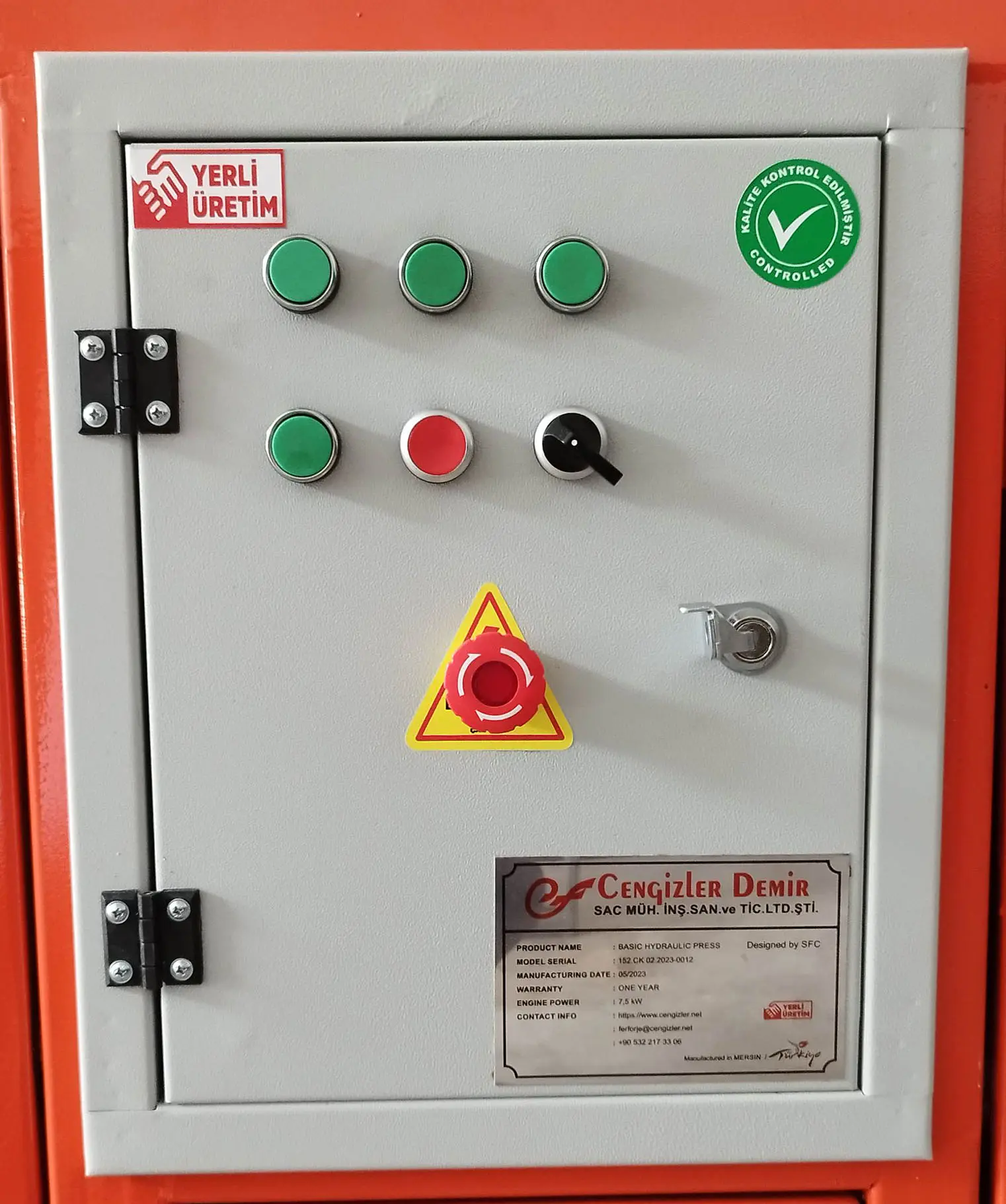

✔ The emergency button is available in our machine for emergency situations.
✔ Manual and Automatic Operating Modes

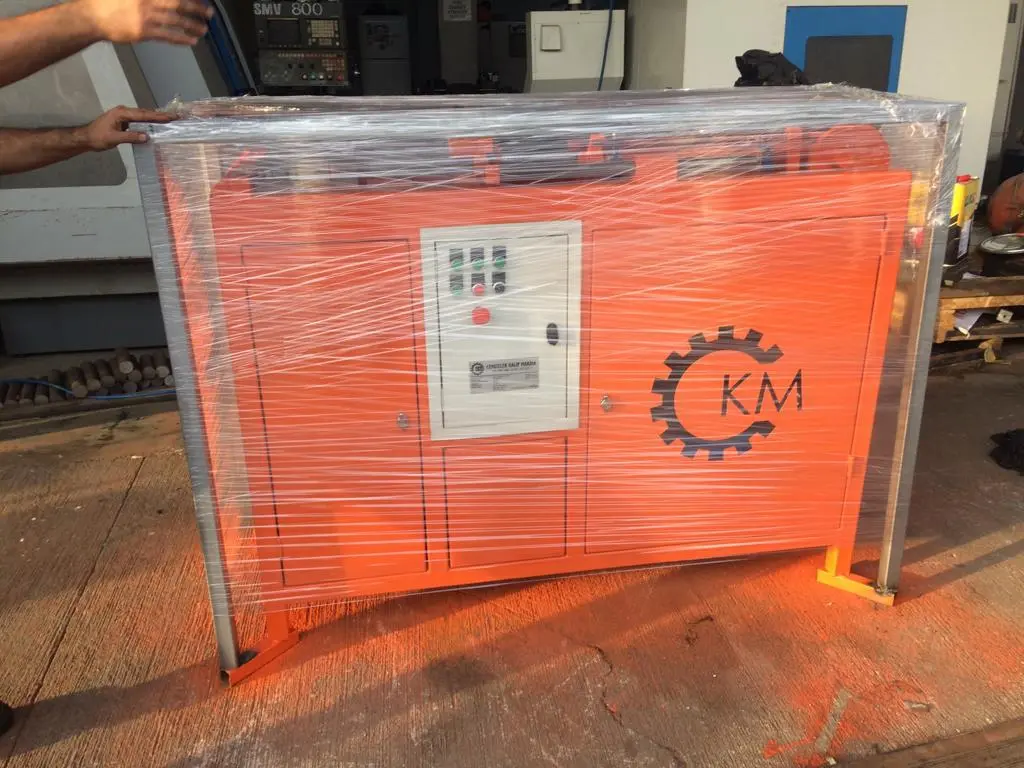

✔ We manufacture steel box for transportation, ensuring that your machinery remains undamaged during shipment.

The Most Popular Machine in Turkey. 4 Reasons
✔ Educational and Consulting Services: We provide training and consultancy services to customers for the correct and effective use of our products.
✔ We are proud: Our machines are operating in more than 50 countries.
✔ Professional After-Sales Support and Service: We offer after-sales support and service to our customers.
✔ The machine you purchase is covered by our companys warranty for 12 months.

Comments from Happy Customers :)
✔ With this machine, my tasks have become faster and more effective, thank you! - Oliver Wilson, New Zealand
✔ Bu makine ile işimde daha etkili bir şekilde çalışıyorum ve sonuçları olumlu yönde etkiliyor. Teşekkür ederim! - Alejandro Fernandez, Arjantin

Top 100 Best Selling Machines Chosen by Customers

✔ User-Friendly Design, Saving Time and Energy!
✔ While our products provide high quality and reliability, we offer our customers economical solutions with competitive prices.
✔ Hundreds of references worldwide. And happy customers :)
✔ Affordable Spare Parts Service, Even if the Warranty Period Expires, We Still Support You!

"Order now to turn your dream wrought iron designs into reality and add a new dimension to your art!"
