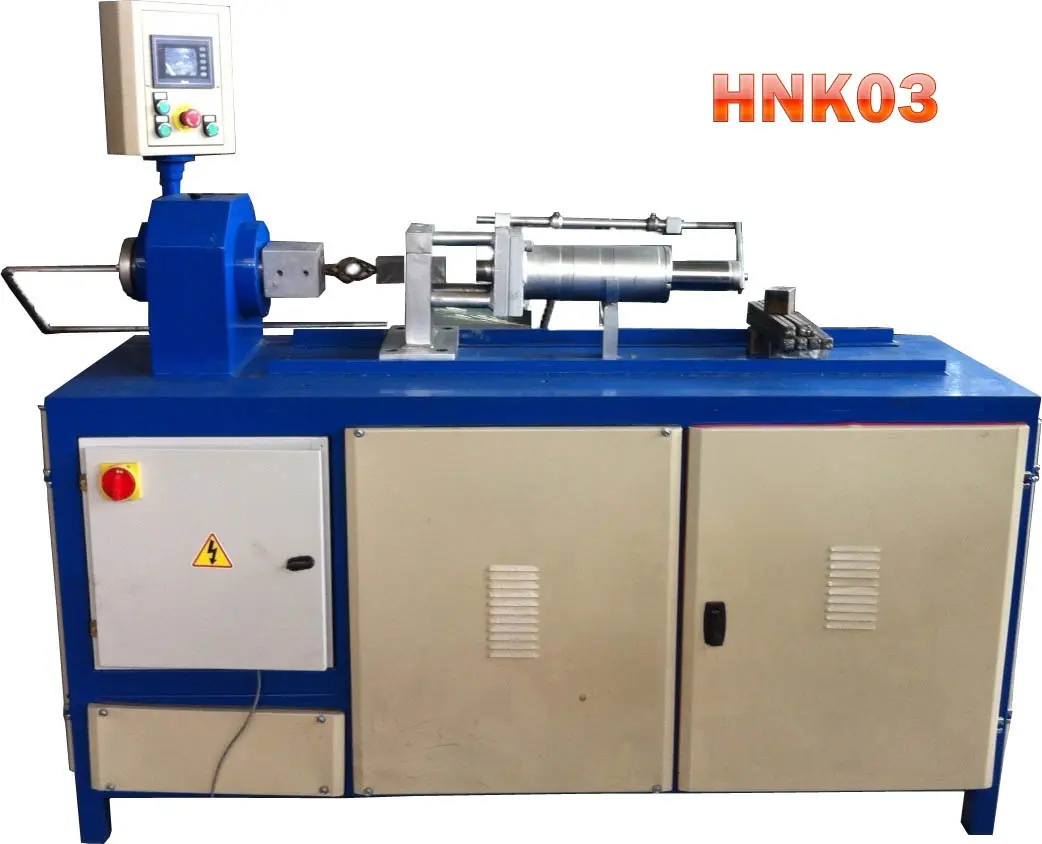

Ring, Twisting, Basket Machine (HNK03)

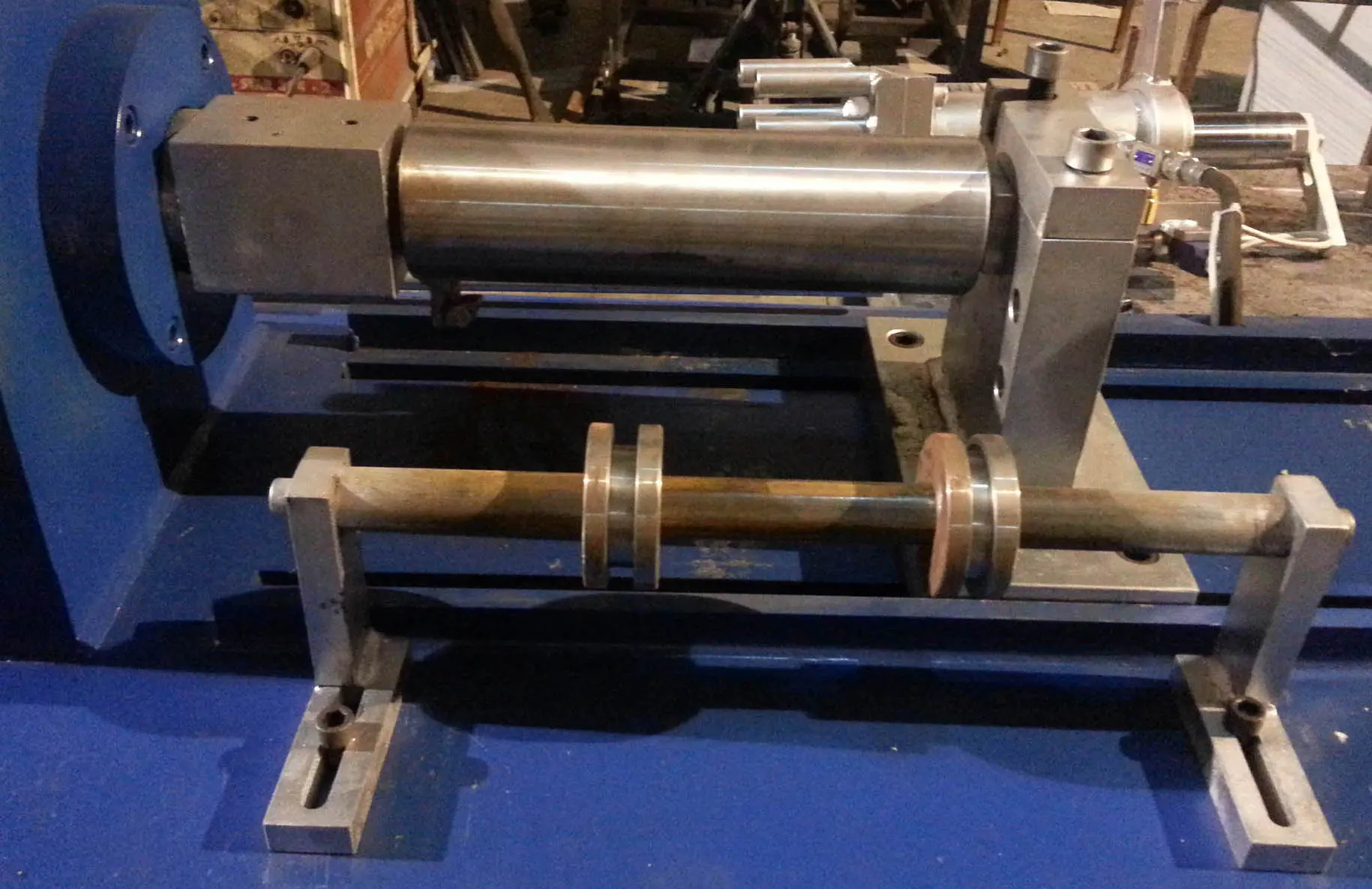

Artisanal_Ring_Twisting_Technique

Artisanal_Twisting_Basket_Innovations

Artistic_Basket_Twisting_Sculpture

Crafted_Basket_Twisting_Aesthetics

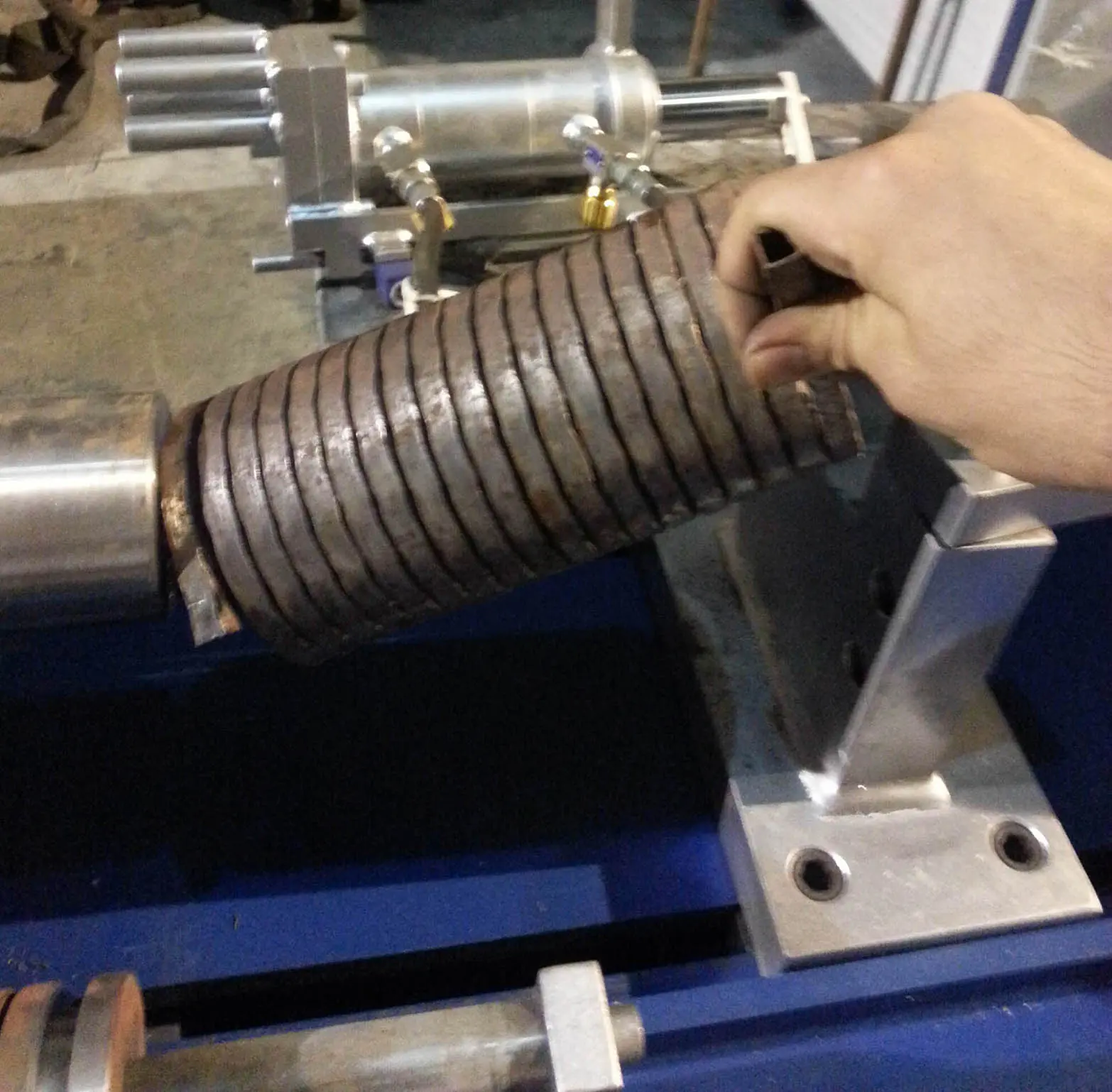

Crafted_Ring_Twisting_Process

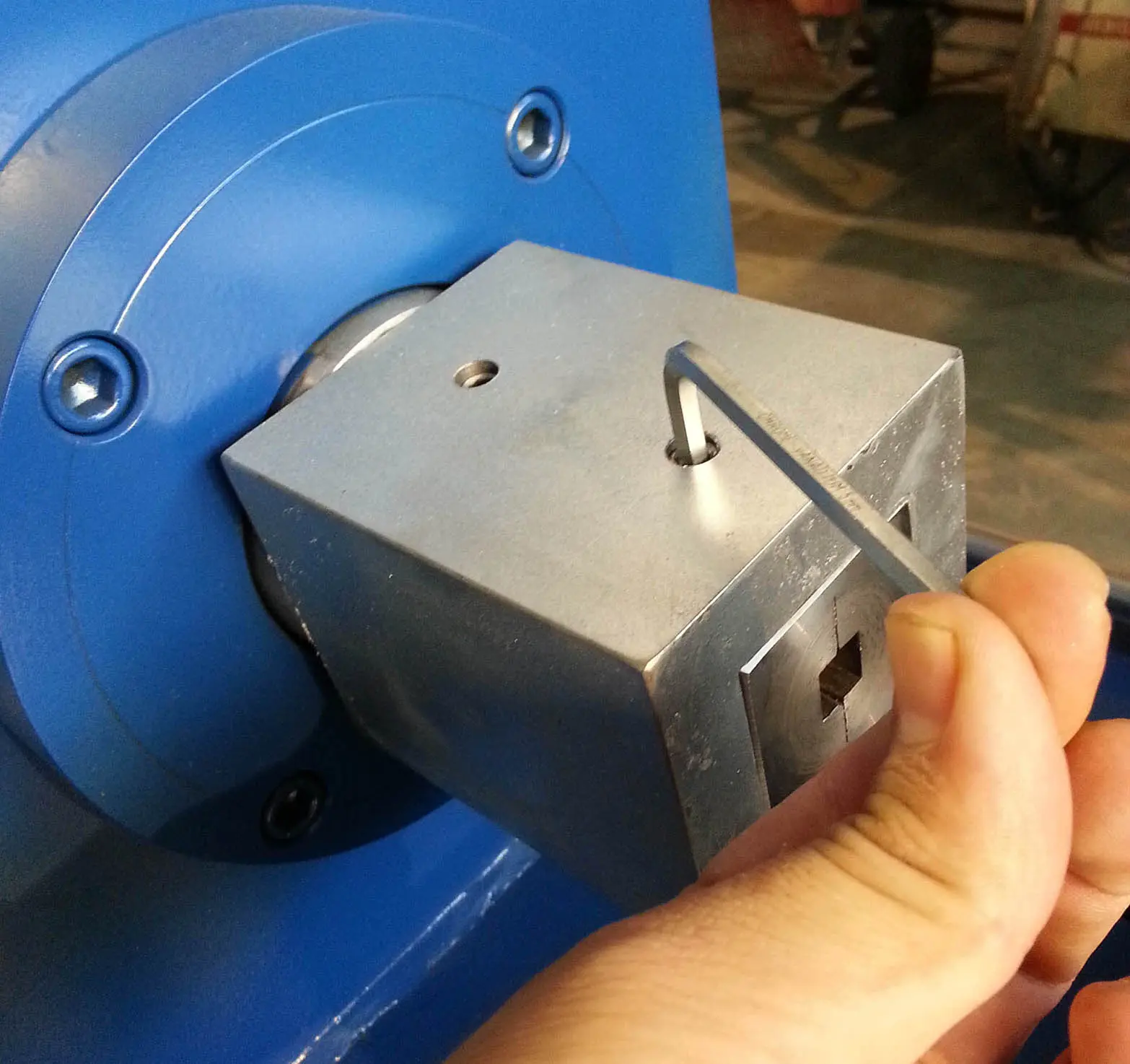

Creative_Basket_Twisting_Machine

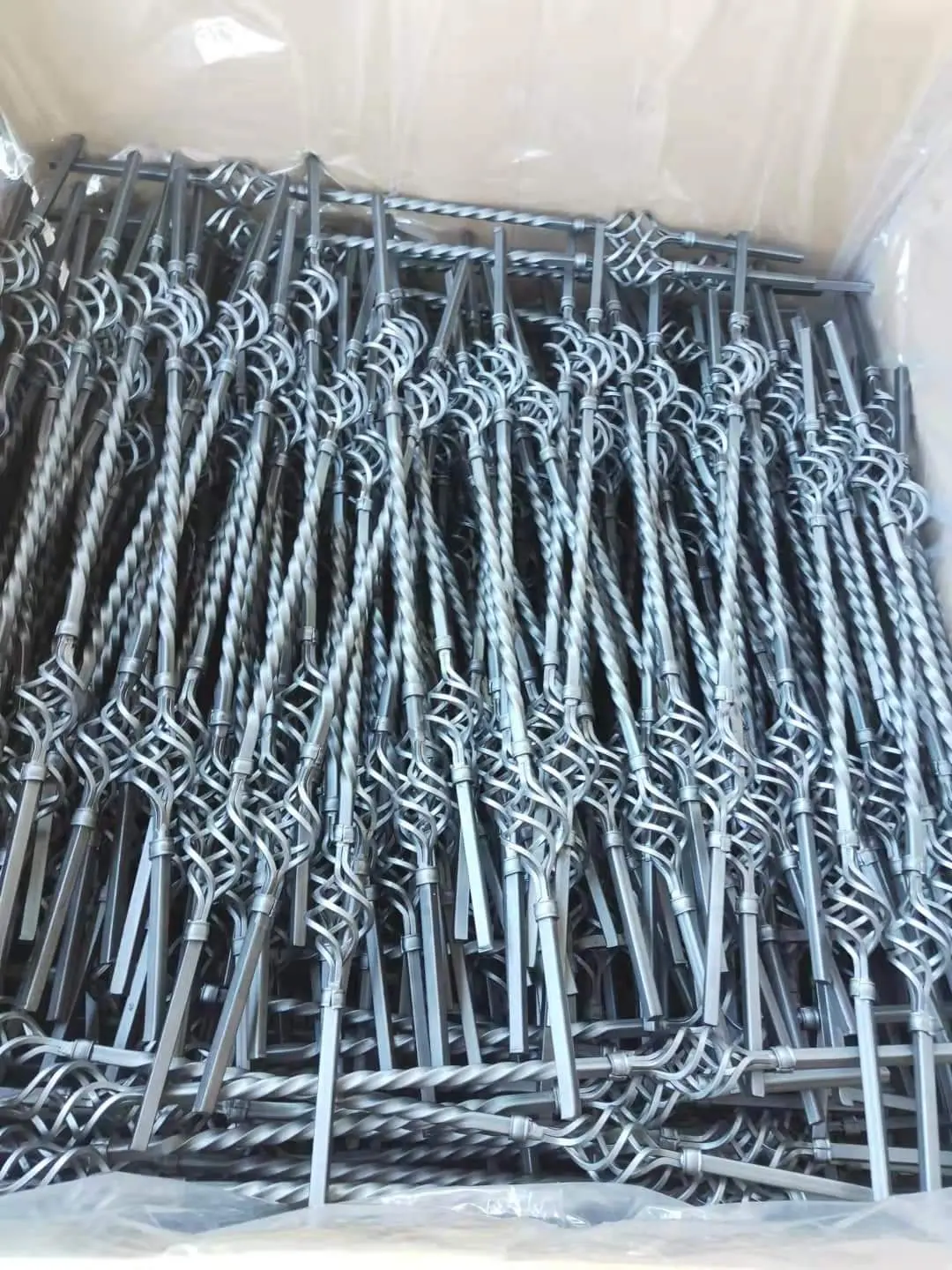

Creative_Twisting_with_Baskets

Dynamic_Basket_Twisting_Work

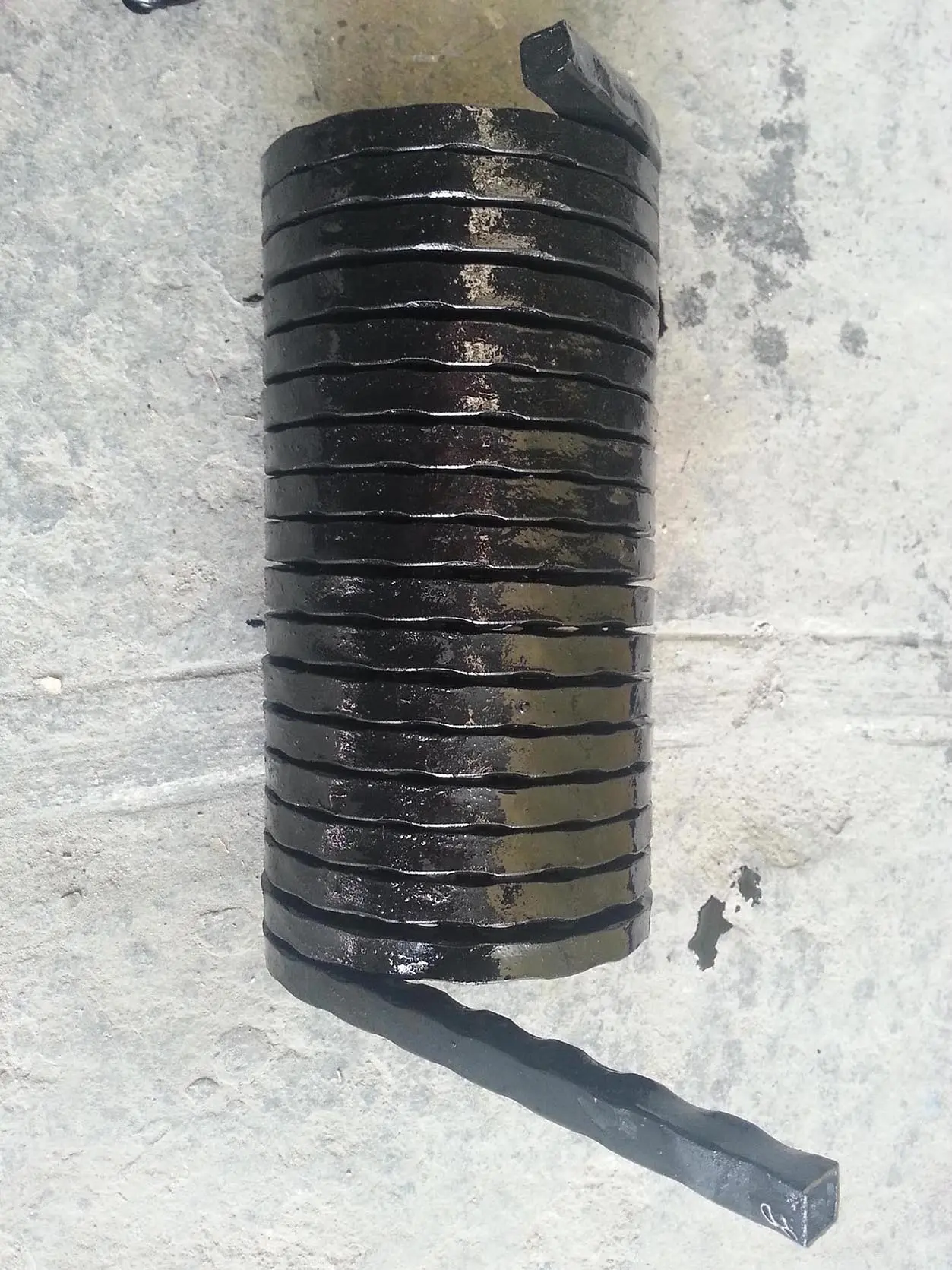

Dynamic_Ring_Formation

Elegant_Basket_Ring_Formation

Elegant_Ring_Twisting_Technology

Formed_Ring_Basket_Artistry

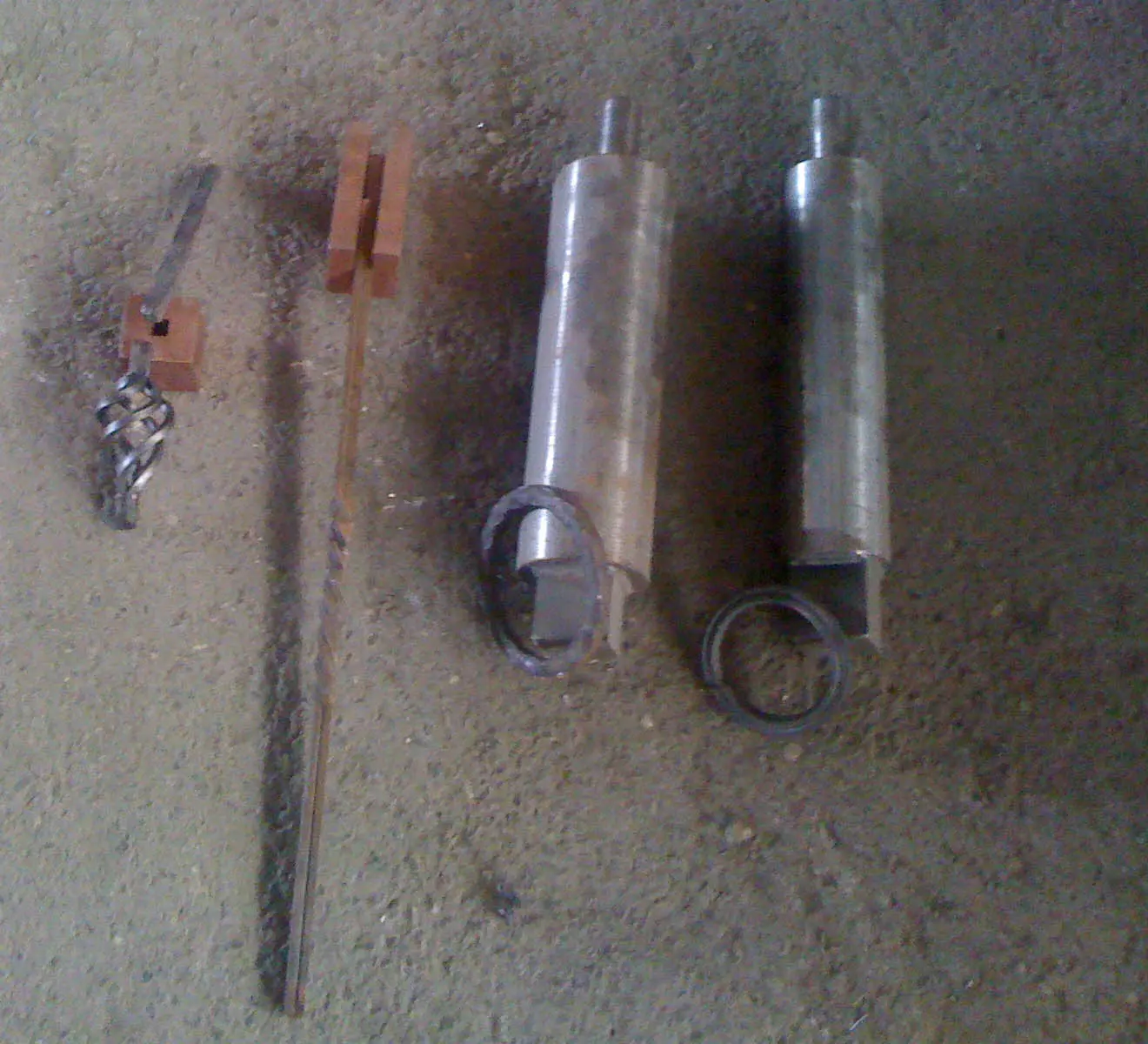

Intricate_Ring_Basket_Details

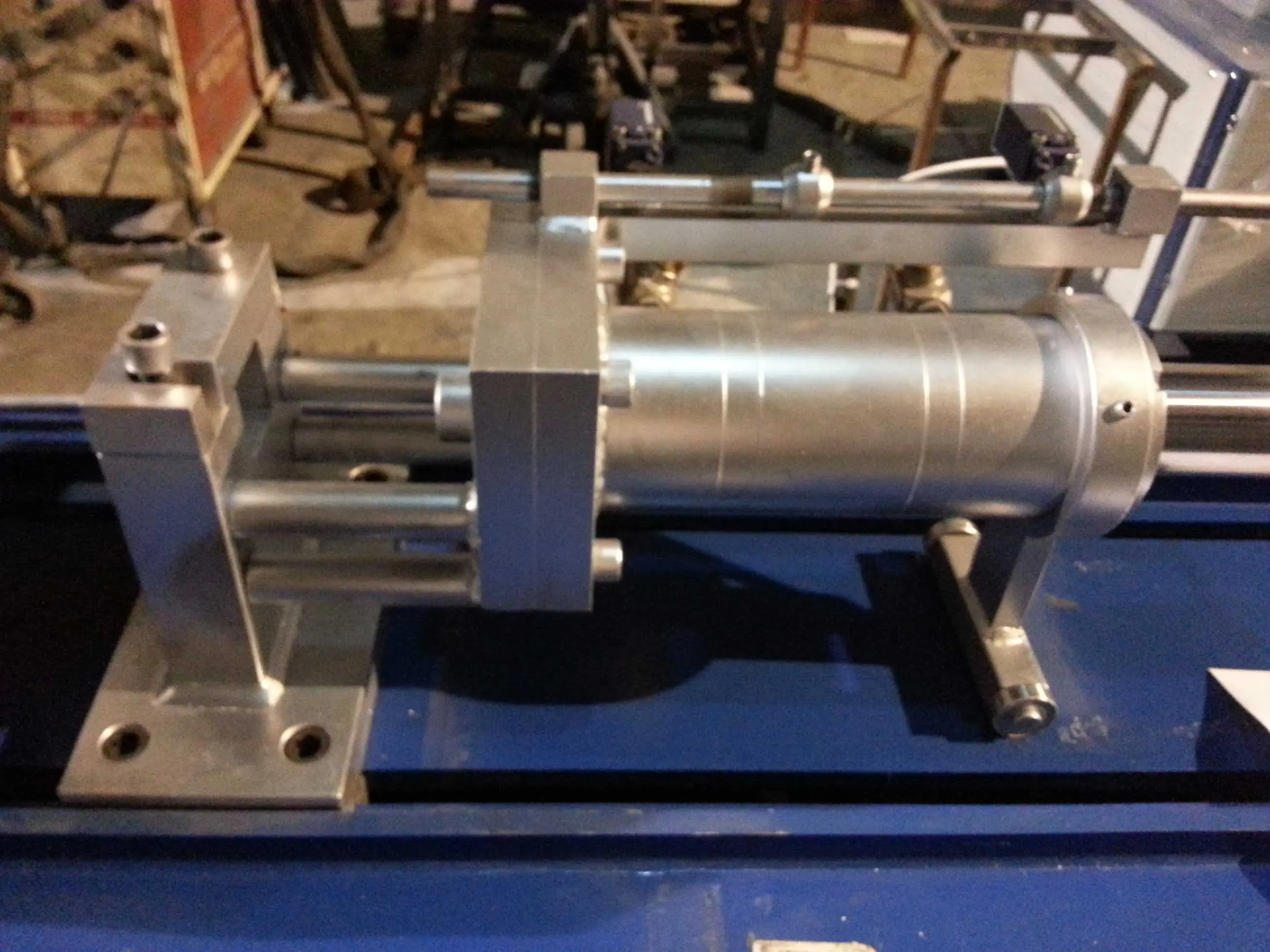

Iron_Ring_maker

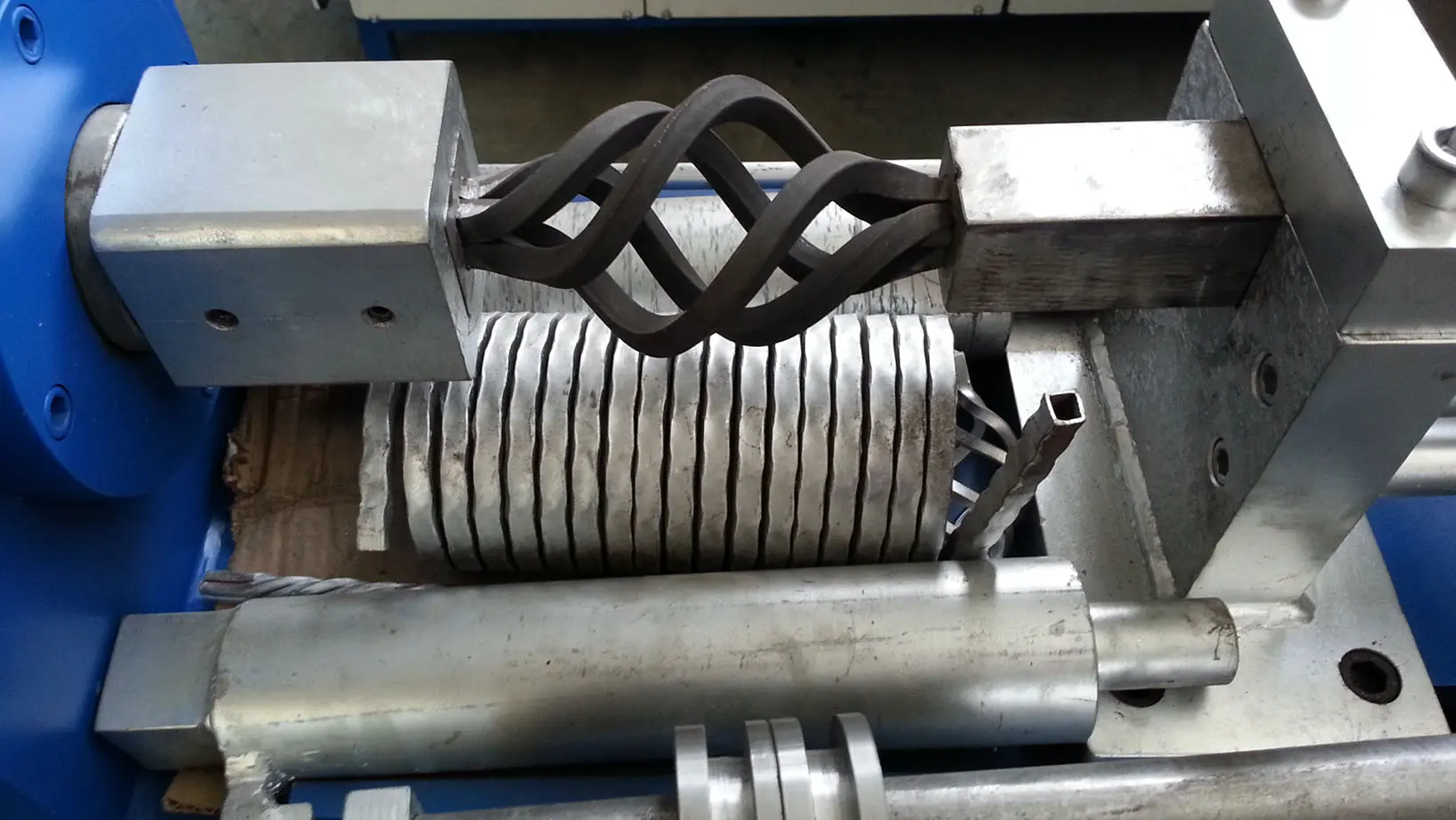

Metal_Basket_Twisting_Innovation

Precision_Twisting_Basket_Design

Precision_Twisting_Machine_Designs

Ring_Twisting_Basket_Craft

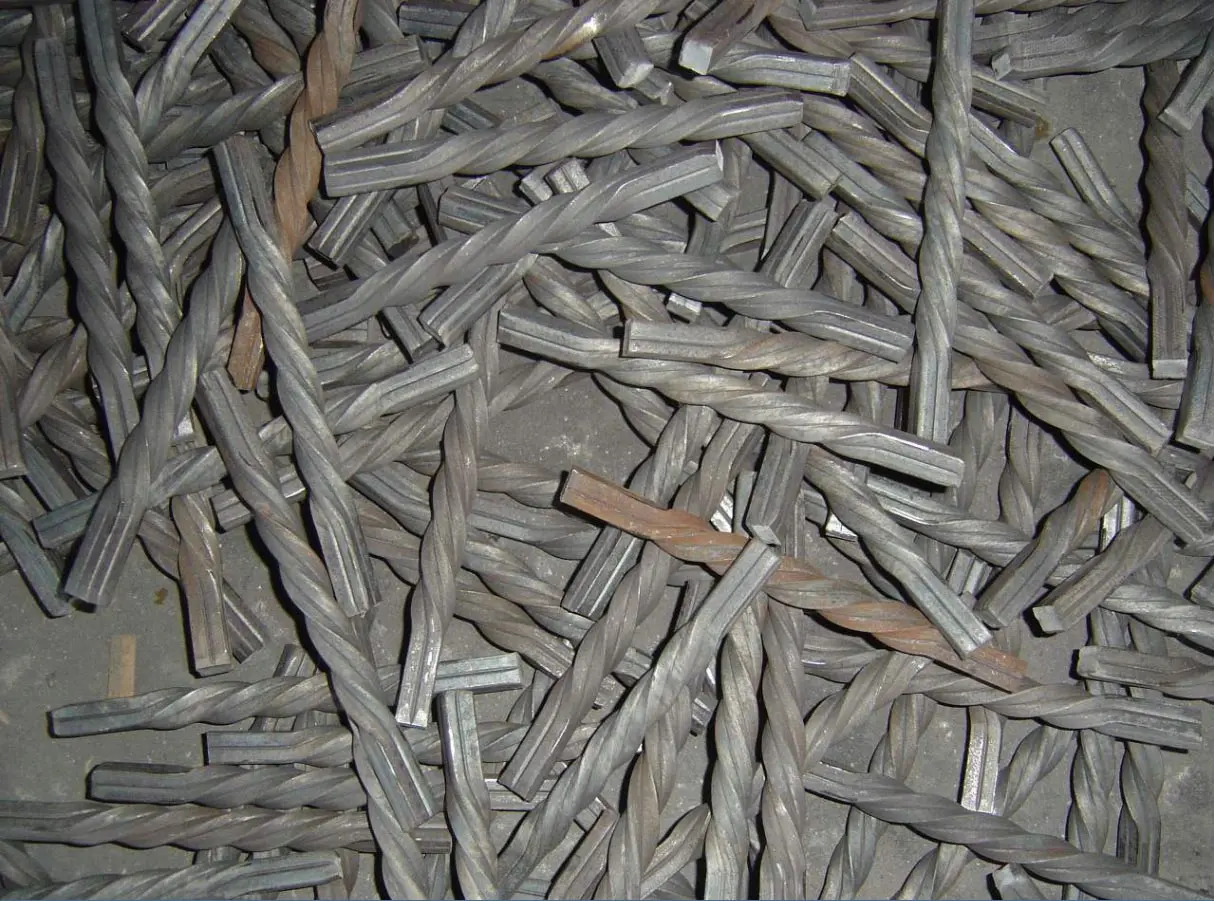

Unique_Twisting_Basket_Creation

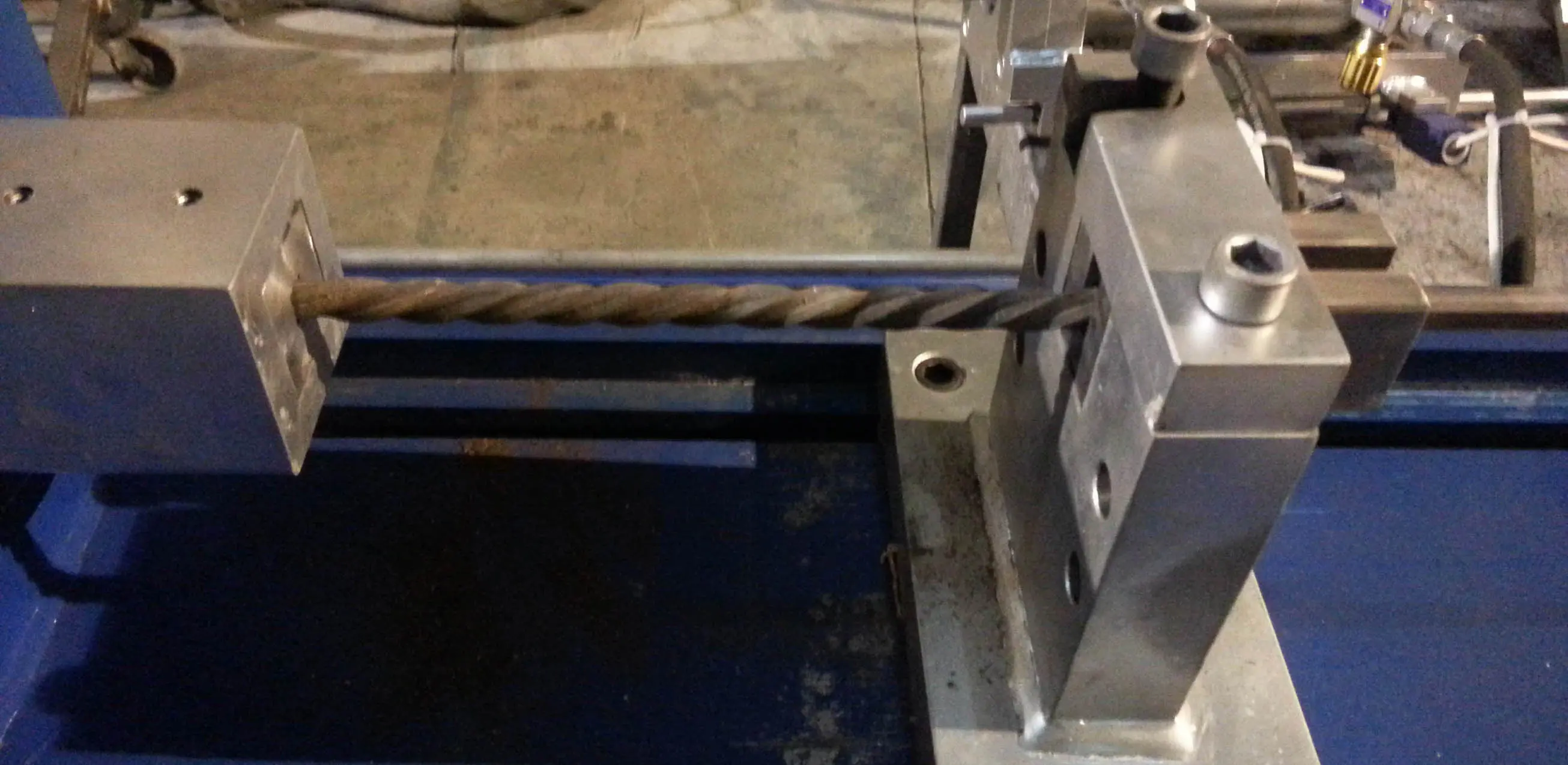

Unique_Twisting_Designs

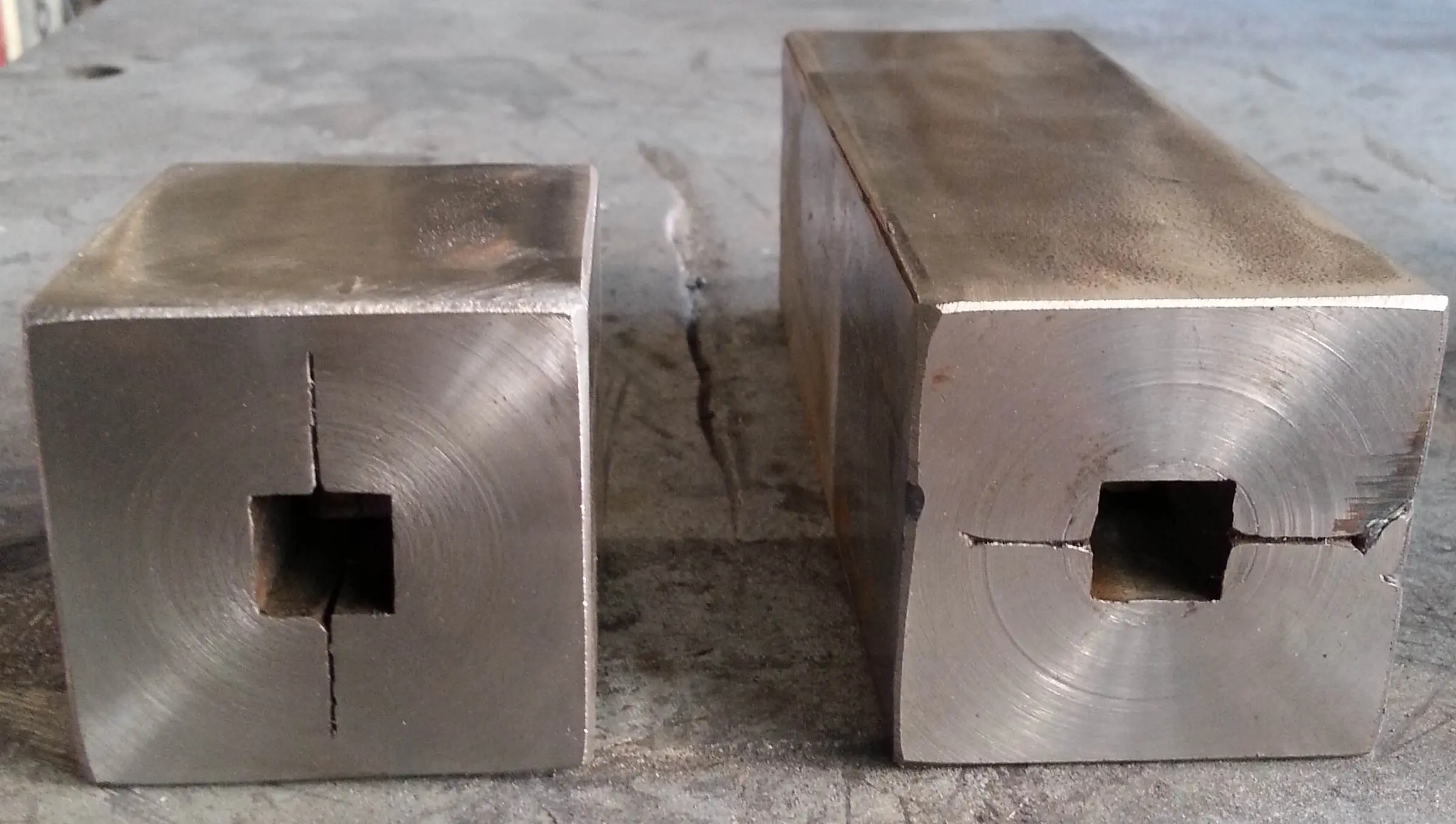

Wrought_Basket_Twisting_Artistry

Wrought_Ring_Twisting_Craft

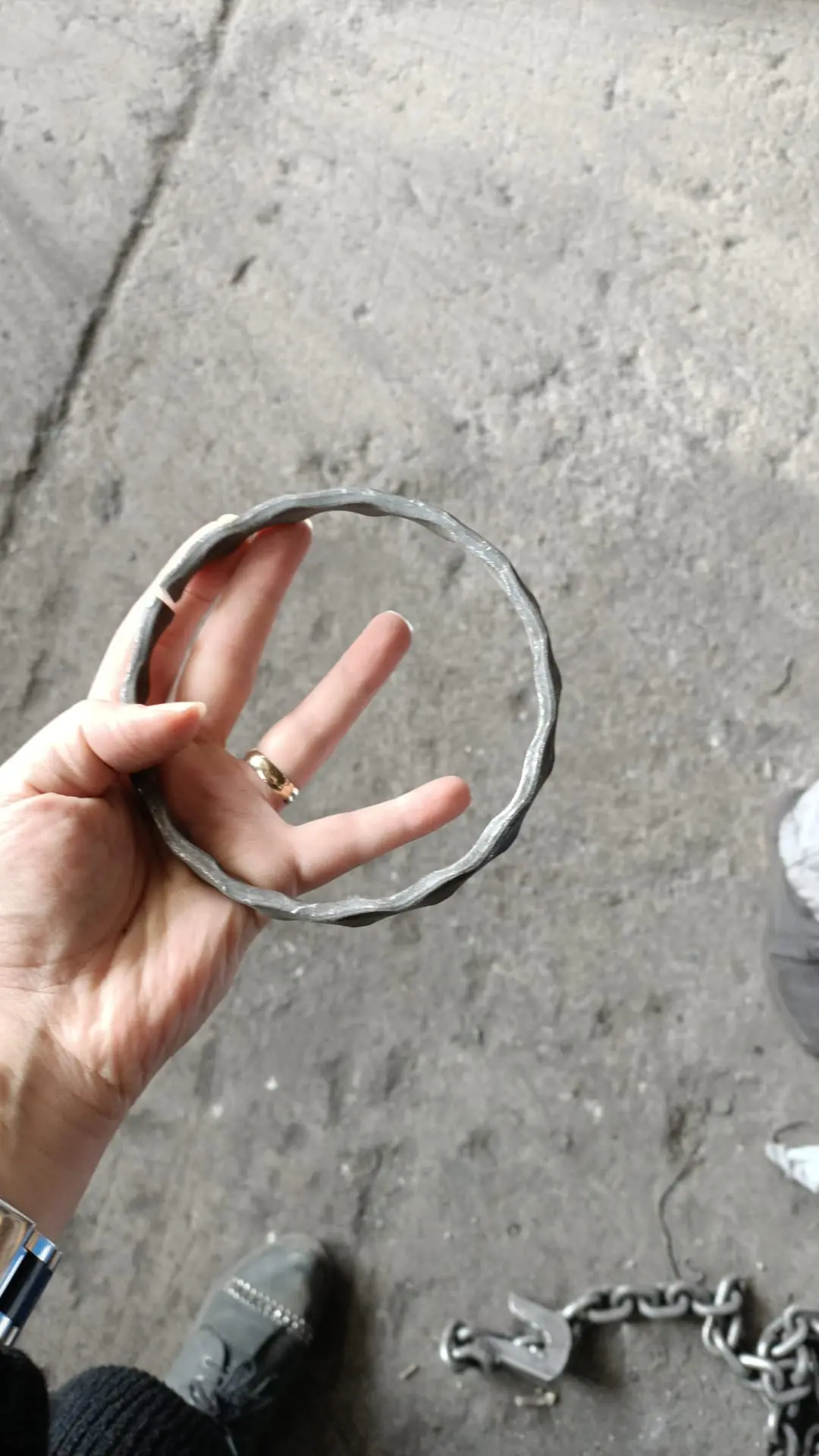

Wrought_iron_ring

ferforje kozalaklar

foot pedal

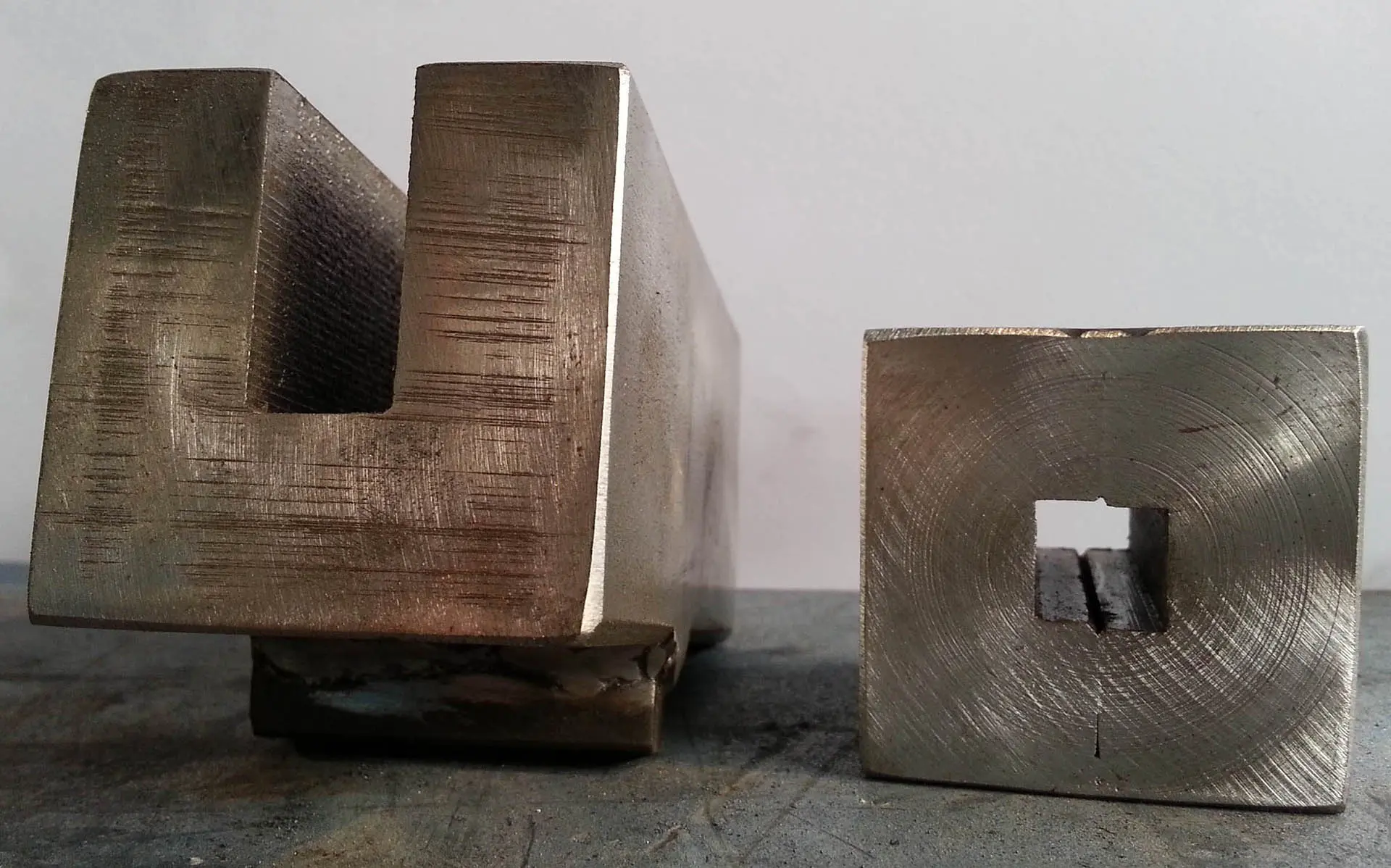

molds

ring basket tisting machine pannel

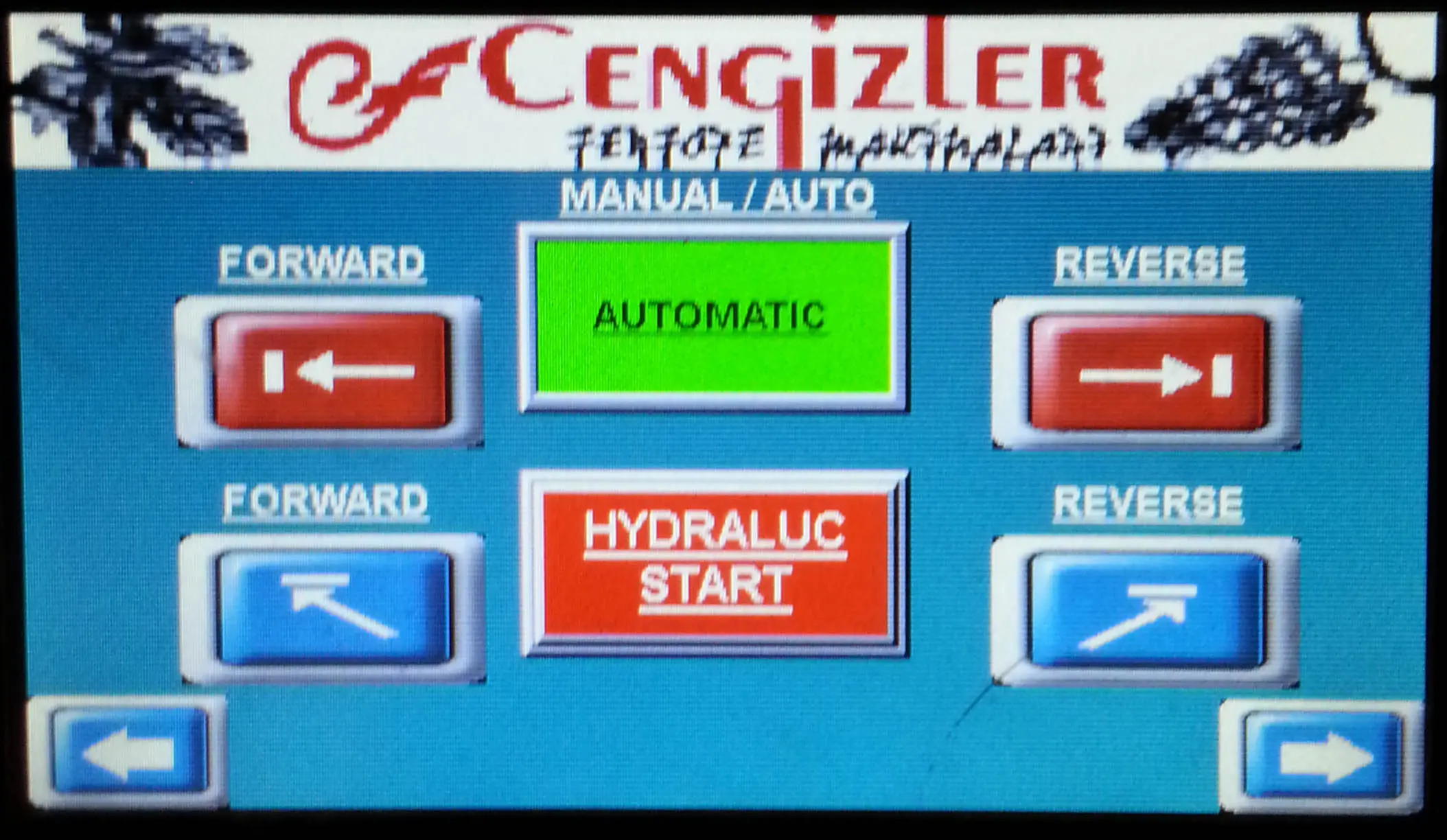

ring basket tisting machine screen

ring basket tisting machine settings

ring basket tisting machine software

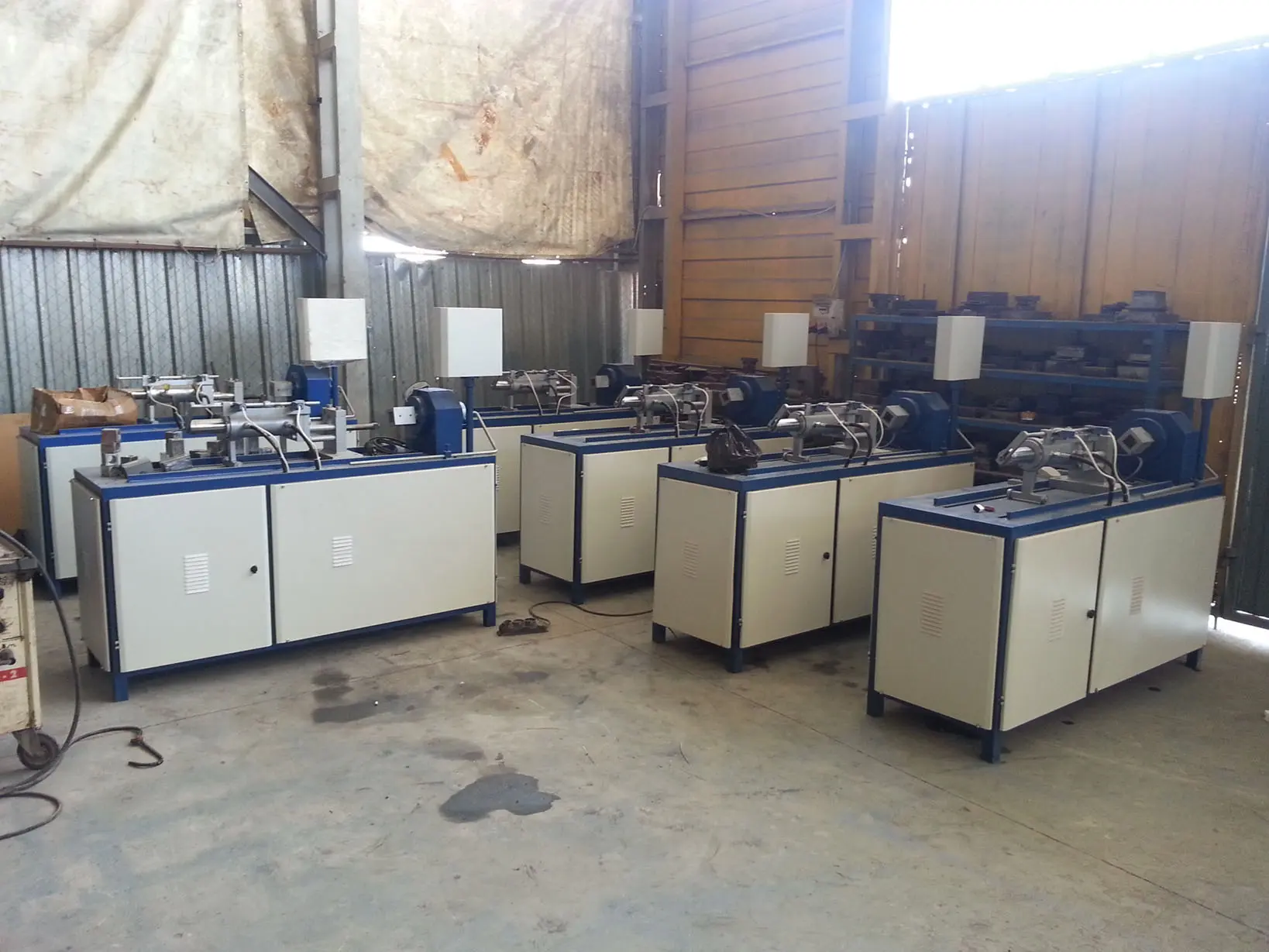

ring basket tisting machines for egypt

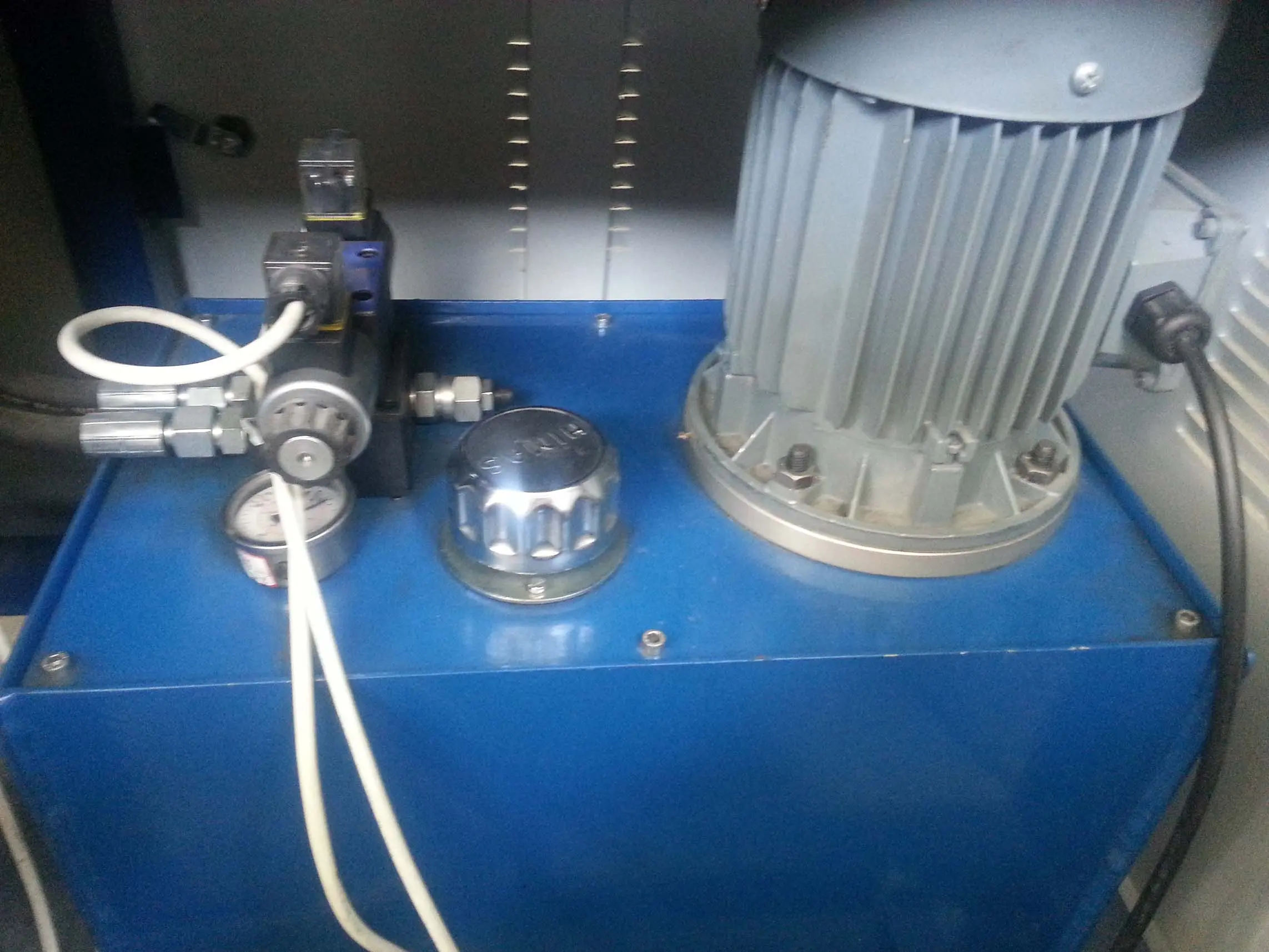

12mm and 24mm baskets, baskets consisting of 8 irons, 12-24mm square blade twists, and rings ranging from 10cm to 12cm in diameter are used in production. If desired, additional molds can be used to rib both the blade and the fillet. Ribs can be made at the desired area and length of the iron. When you purchase our machine, you will also receive a cutting and bending adjustment table. The Wrought Iron Ring Rib Cone machine is a fantastic machine with three functions and an economical cost. In designing this machine, we studied the machine designs of the German company Glaser, resulting in an excellent machine. When combined with a hydraulic piston and power unit, a four kW motor combination with a reducer having conical gears, and all these mechanical parts are combined with PLC touch screen, software, it results in a flexible, interchangeable, efficient, fast, and programmable machine. With its programmable and changeable software features, you can obtain cones of different sizes and appearances just by changing the parameters on the screen. With the same machine, you can also create variations of cones consisting of four or eight irons. Of course, with such infrastructure, you can easily perform processes like ribbing; you can apply a ribbing process to any point on a six-meter iron. Using the 10 cm and 12 cm dies that come with the machine, you can turn all irons up to 24 mm into rings, such as 10 × 10 mm, 12 × 12 mm, 14 × 14 mm, 16 × 16 mm, and so on. With different die sizes, it is possible to produce larger or smaller wrought iron rings. After the initial setup, the machine operates entirely automatically, providing you with a very fast, practical, and effective production environment throughout the day.

Code	HNK03
Motor/Hydraulic	4 kw / 22 rev 380V 3 Phase Motor + 1.5kw 380V 3 Phase Motor + Hydraulic + Piston
Dimensions (Width x Length x Height cm.)	185x65x155cm
Weight	550kg

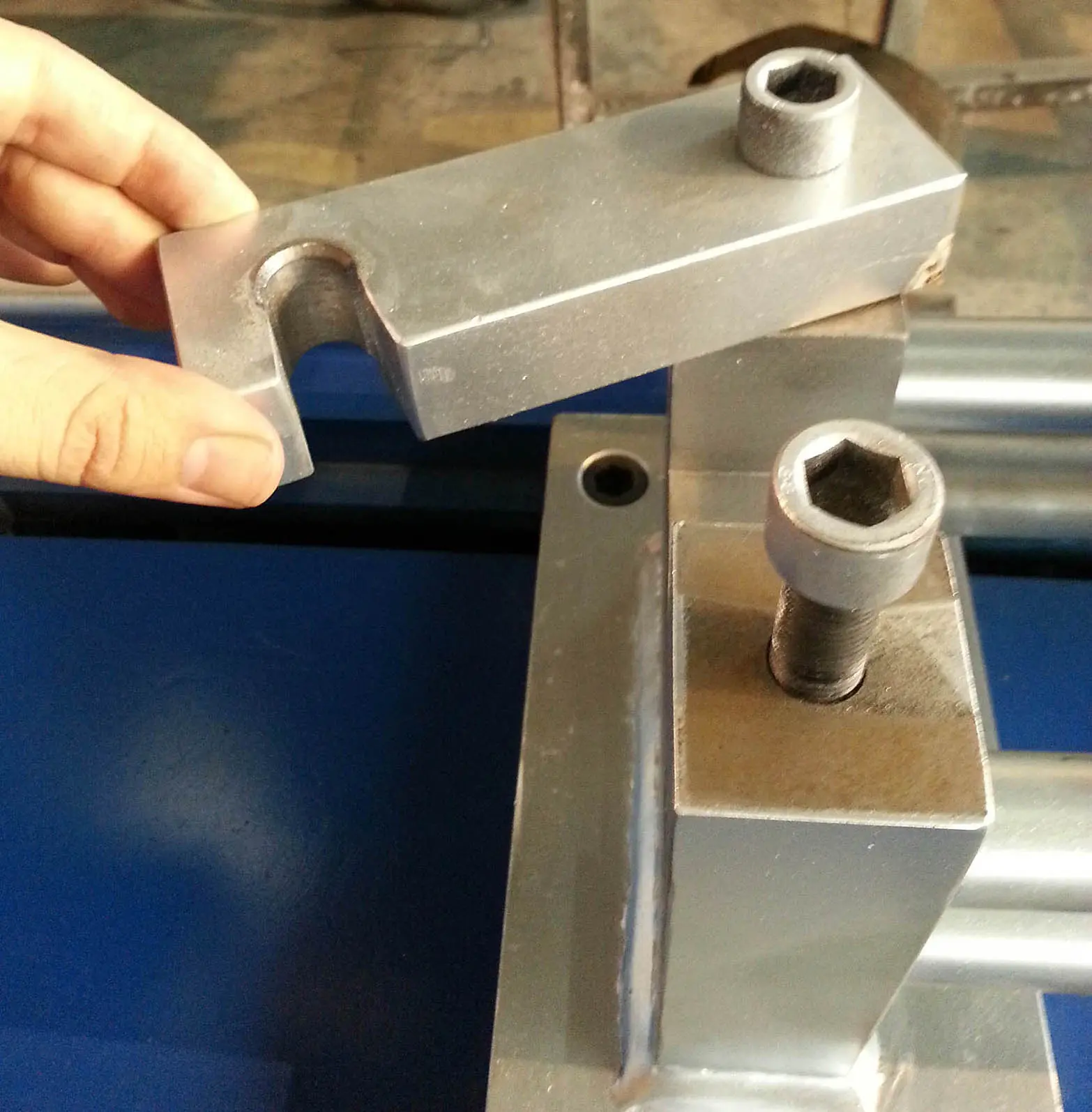

Molds	12mm and 24mm cones 12mm & 24mm square Ribs 10cm – 12cm Ring
Maximum Bending Thickness	24mm
Production Capacity	1500 cocoons / 8 hours 4800 rings / 8 hours 960 ribs

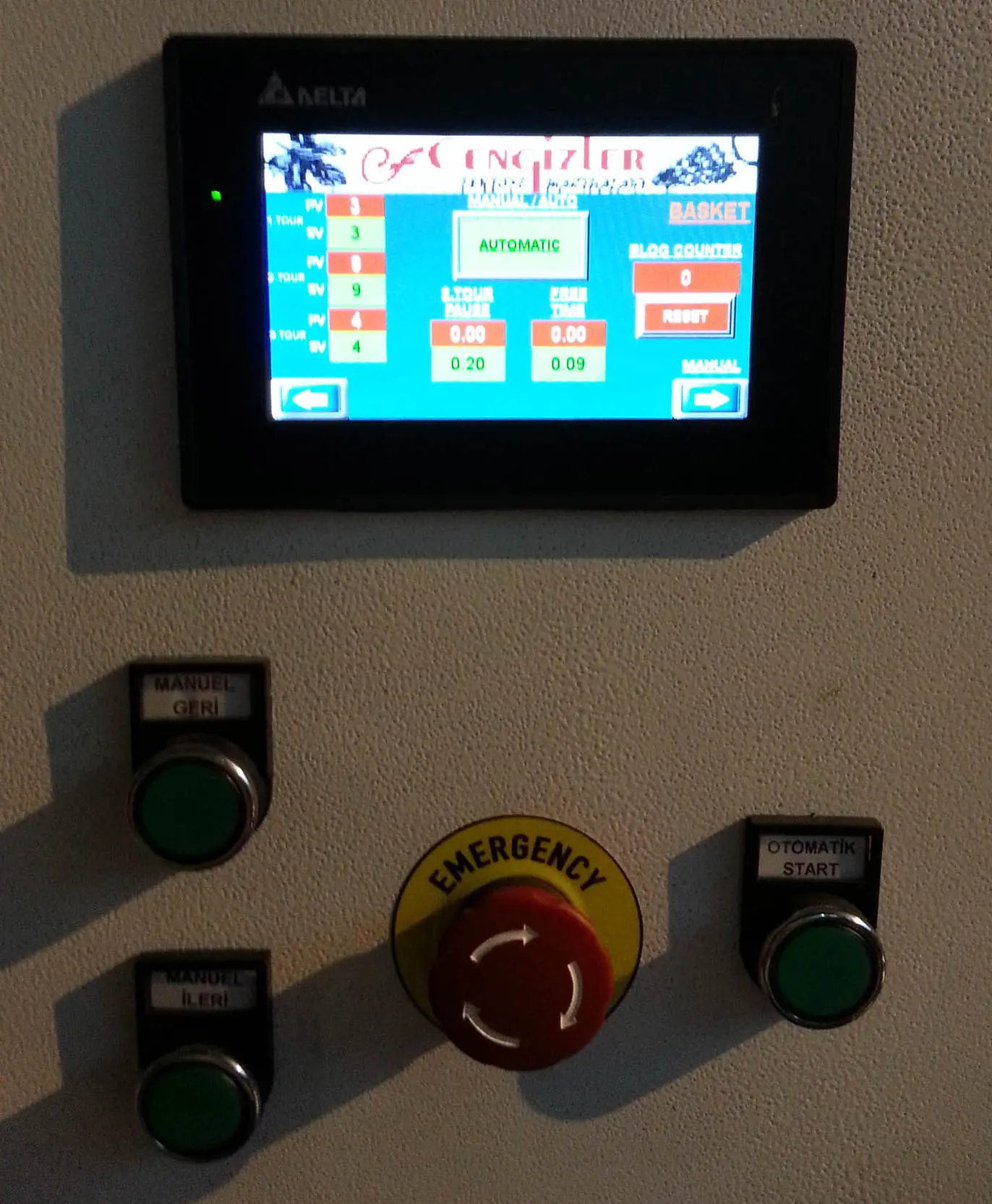

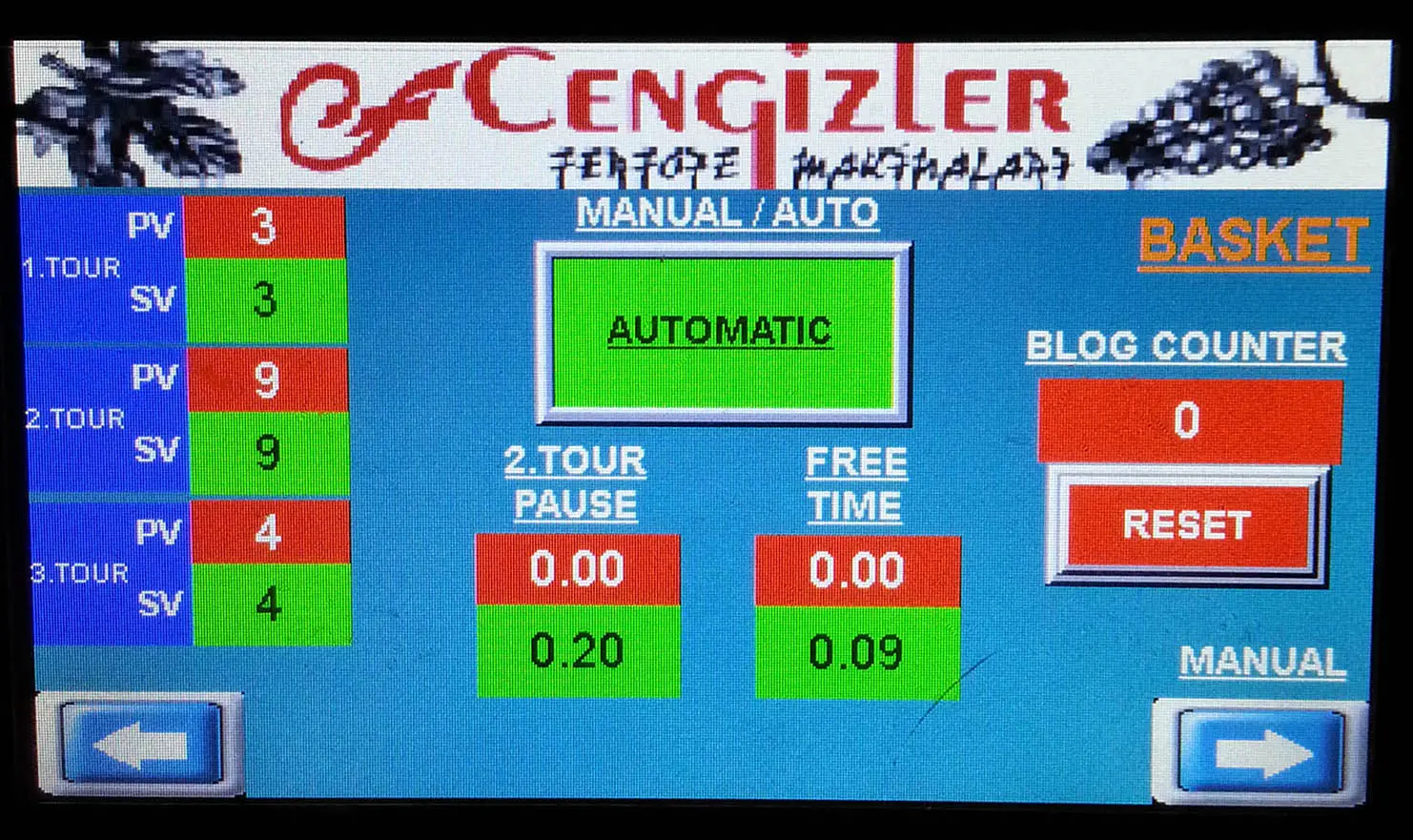

Control	PLC + Touch Screen + Switch + Programmable Software + Pedal
Warranty	Our product is under company warranty for 12 months from the delivery date. Electrical components and the motor are not covered by the warranty. When necessary, Cengizler Machinery Company sends a technician to resolve issues. The customer is responsible for the technician's travel, accommodation, meals, daily allowance, and the transportation cost of required spare parts.
Payment	50% Deposit, 50% Prior to Delivery
Delivery Terms	Mersin Factory

The 4 Key Advantages of the Ring, Twisting, and Basket Machine are:
✔ Thick irons can be bent thanks to the powerful reducer.

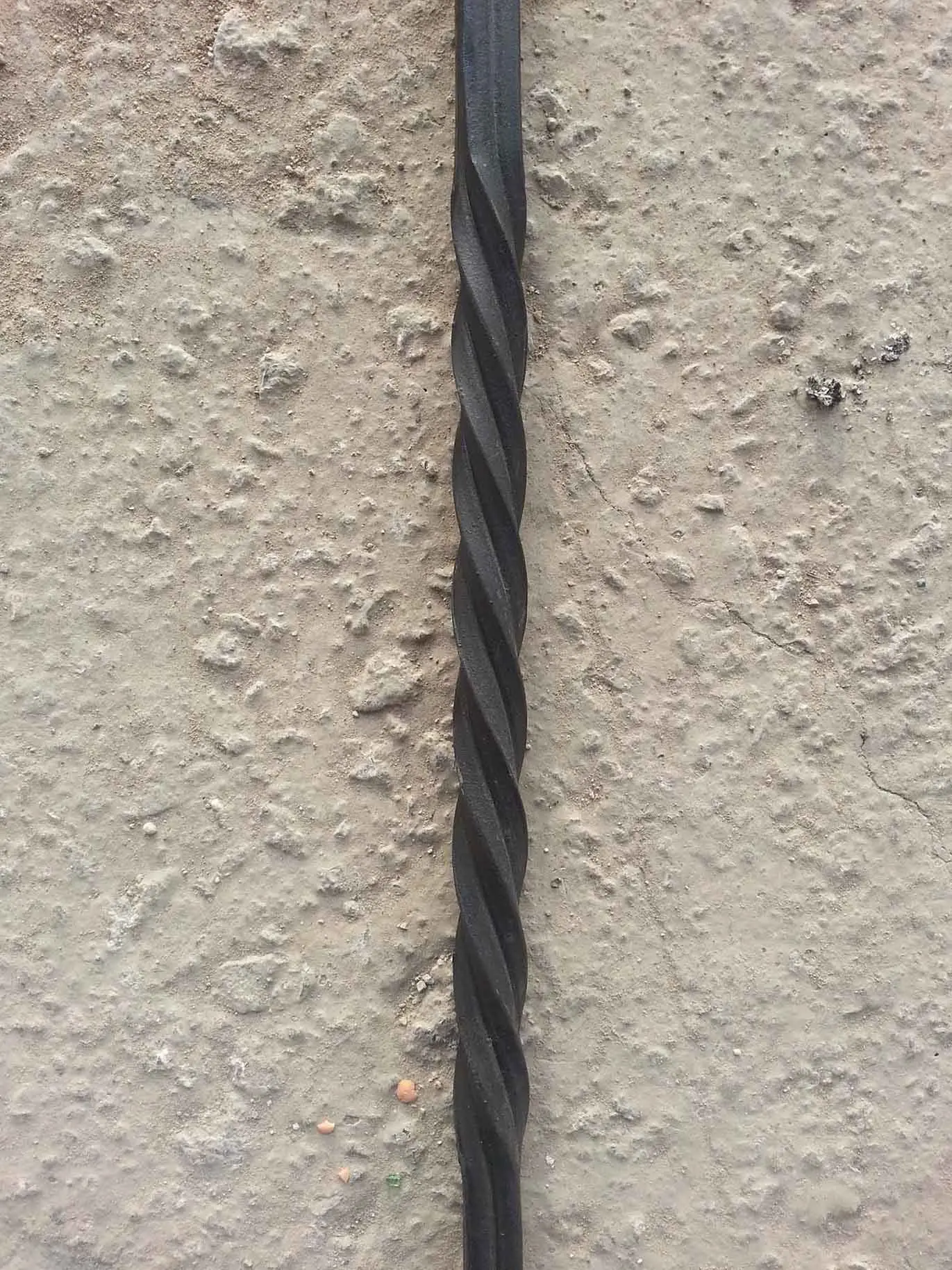

✔ You can Twist the iron at any point you desire.
✔ Programmable production recipes controlled by PLC automation.

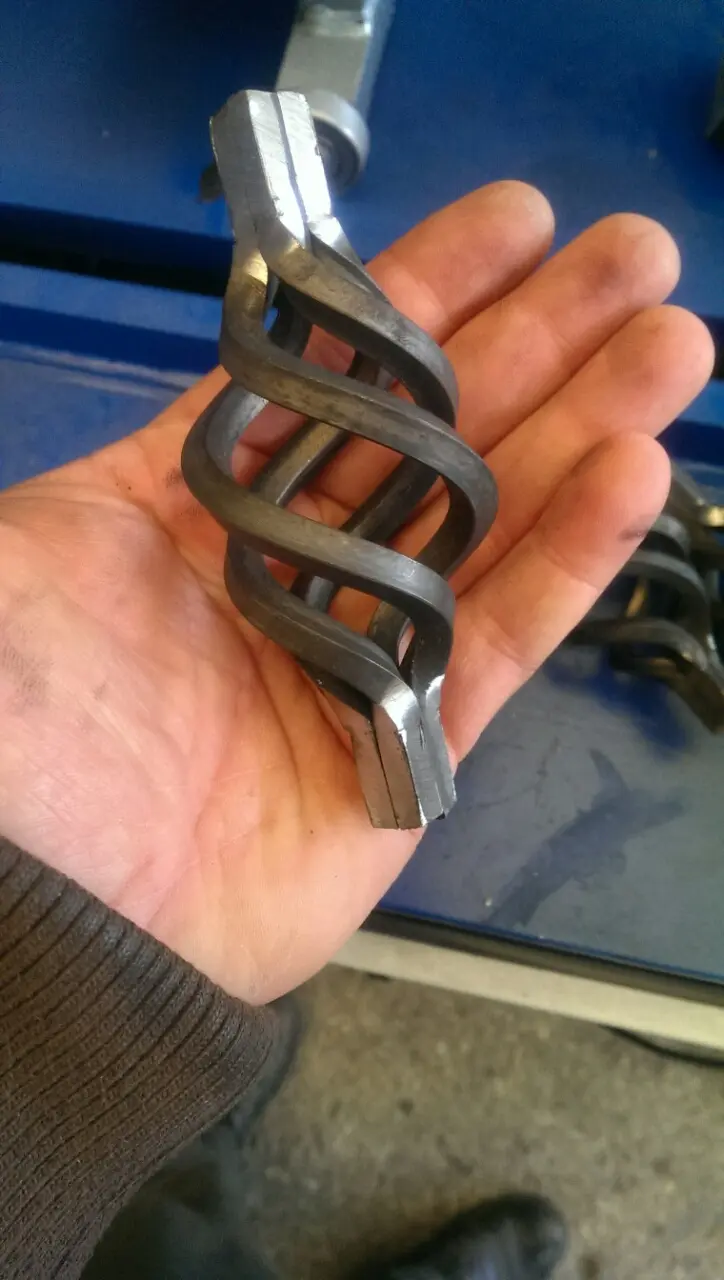

✔ You can produce four and even eight-piece baskets

Why Should You Chose This Product?
✔ The emergency button is available in our machine for emergency situations.
✔ The software parameters of the German company Glaser.
✔ We manufacture steel box for transportation, ensuring that your machinery remains undamaged during shipment.

The Most Popular Machine in Turkey. 4 Reasons
✔ Educational and Consulting Services: We provide training and consultancy services to customers for the correct and effective use of our products.
✔ We are proud: Our machines are operating in more than 50 countries.
✔ Professional After-Sales Support and Service: We offer after-sales support and service to our customers.
✔ The machine you purchase is covered by our companys warranty for 12 months.

Comments from Happy Customers :)
✔ Makine ile işim daha verimli hale geldi, teşekkür ederim! - Javier Fernandez, Arjantin
✔ Makine ile işim daha verimli hale geldi, teşekkürler! - Deniz Aktaş

Top 100 Best Selling Machines Chosen by Customers

✔ User-Friendly Design, Saving Time and Energy!
✔ While our products provide high quality and reliability, we offer our customers economical solutions with competitive prices.
✔ Hundreds of references worldwide. And happy customers :)
✔ Affordable Spare Parts Service, Even if the Warranty Period Expires, We Still Support You!

"Order now to turn your dream wrought iron designs into reality and add a new dimension to your art!"
