Rolling Machine (EMBOSE03)

Artistic_Iron_Embossing

Artistic_Rolling_Tech

ColdRoll_Creation

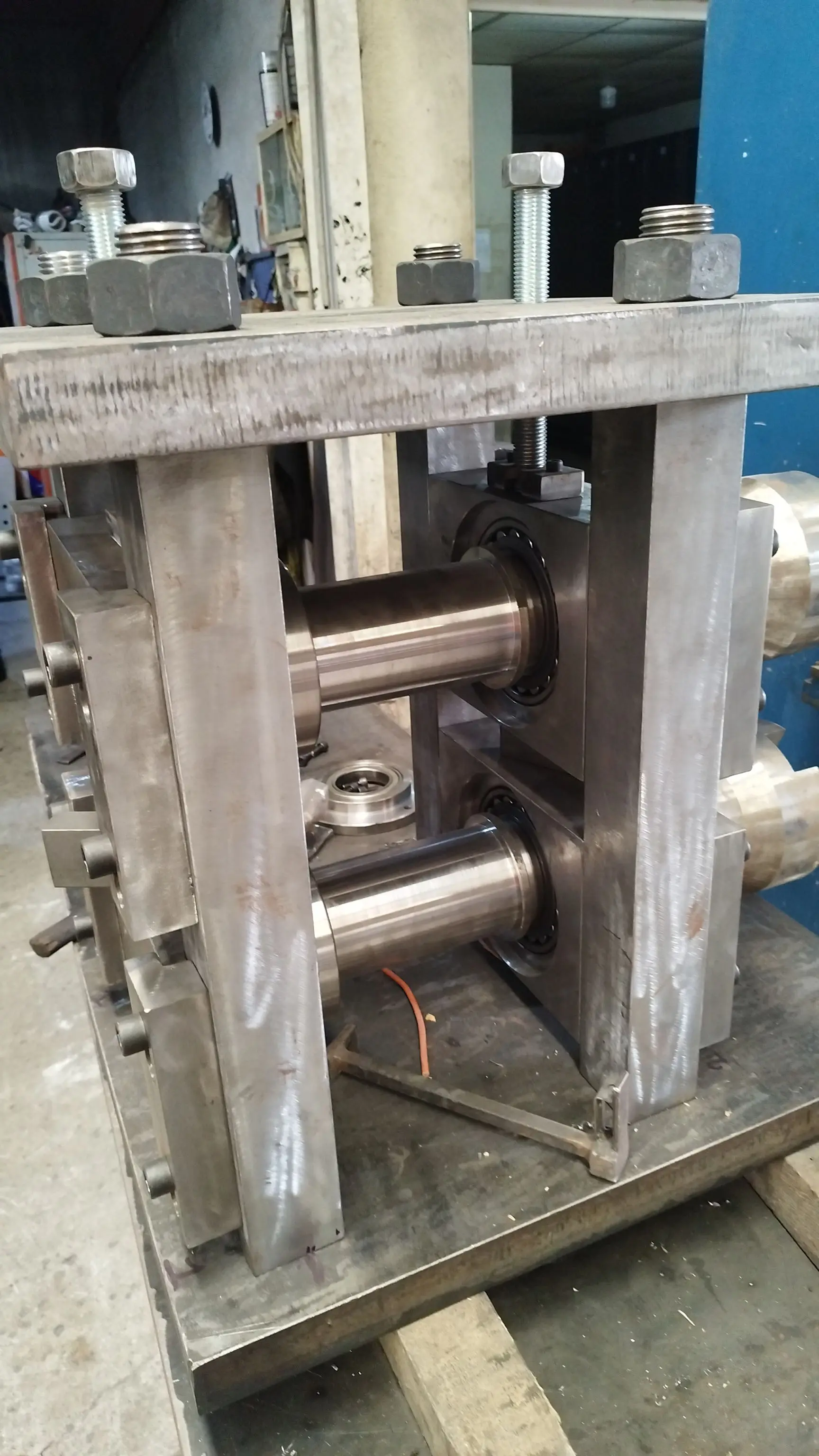

ColdRoll_Emboss_Craft

ColdRoll_Embossing_Craft

Crafted_ColdRoll_Emboss

Crafted_Iron_Emboss

Dynamic_Embossing_Art

Dynamic_Embossing_Work

Elegant_Iron_Rolling

Elegant_Rolling_Emboss

Emboss_Tech_Craft

Intricate_ColdRoll_Design

Intricate_Emboss_Design

IronEmboss_Tech

Precision_ColdRoll_Art

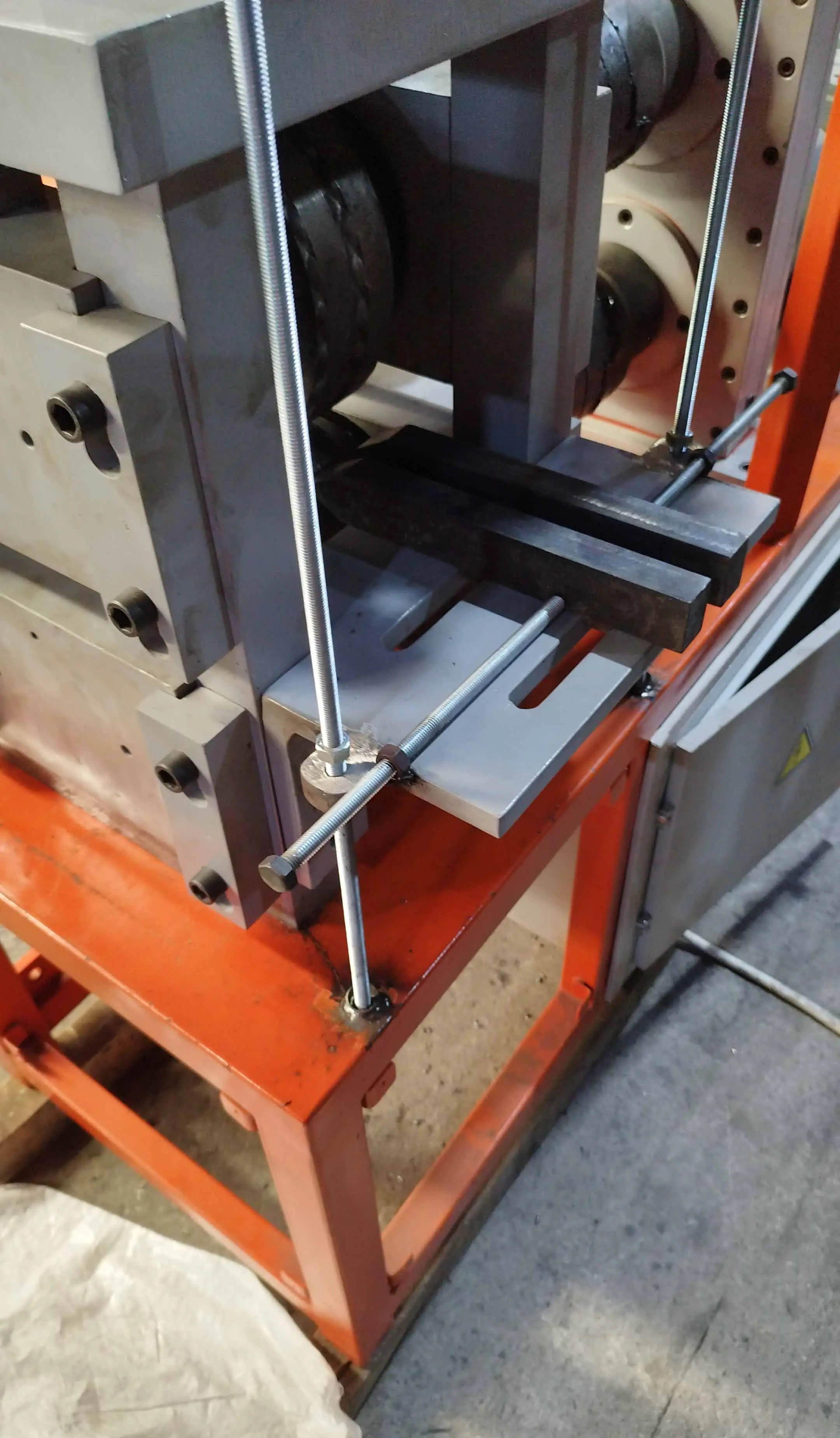

Precision_Rolling_Art

Unique_ColdRoll_Emboss_Creation

Unique_Wrought_Emboss

Wrought_ColdRoll_Emboss_Art

Wrought_ColdRoll_Work

Wrought_Design_Roll

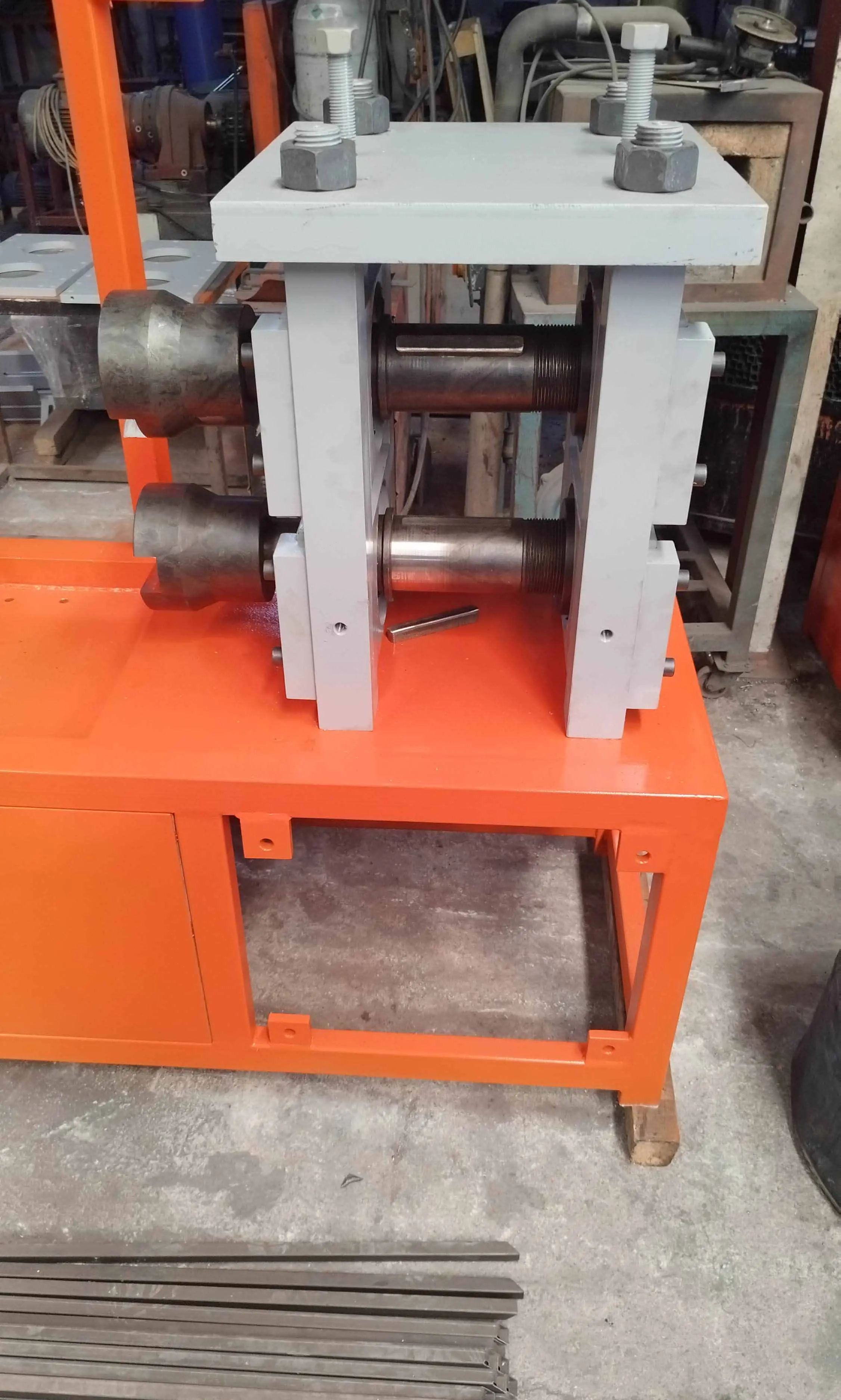

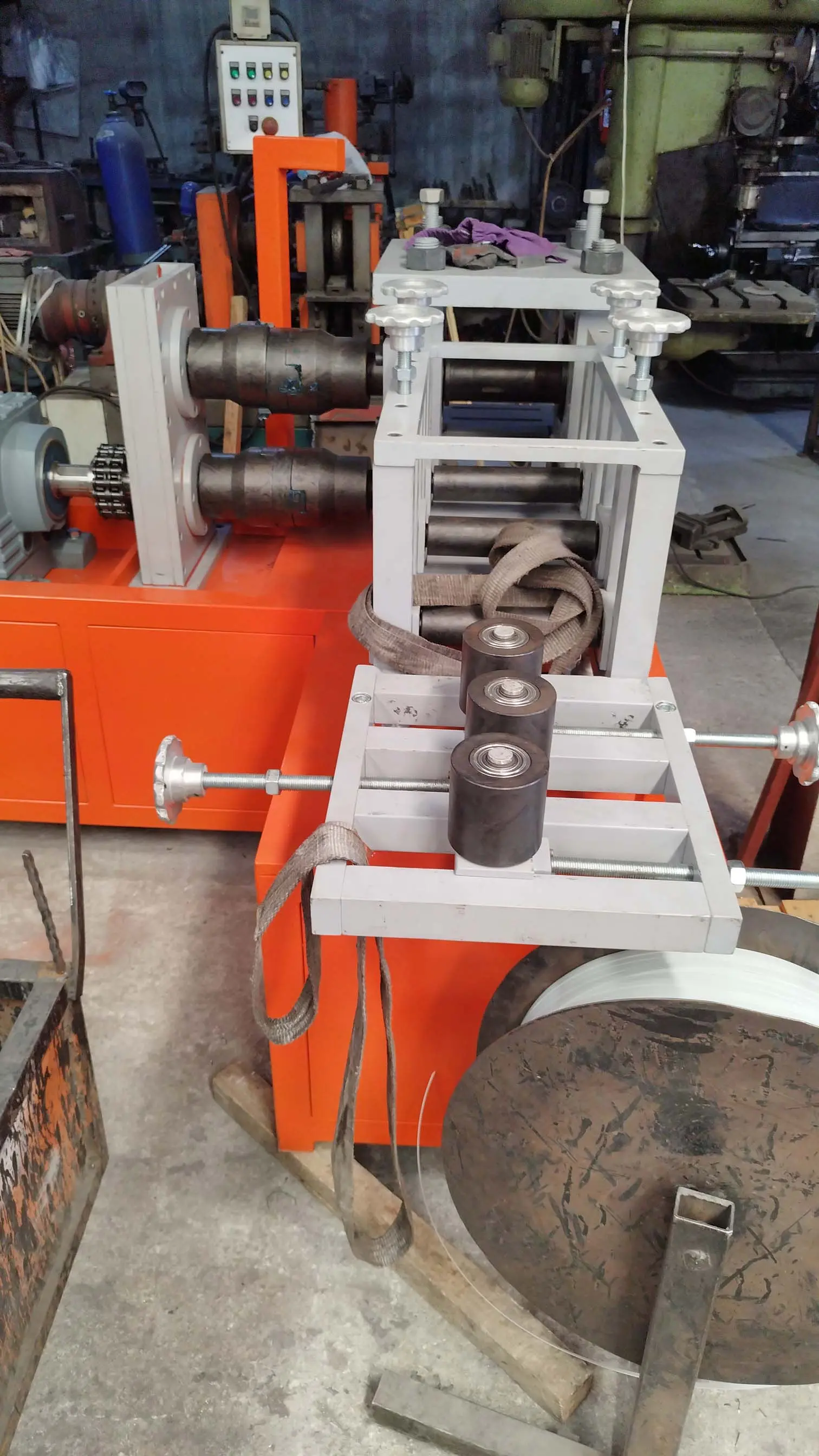

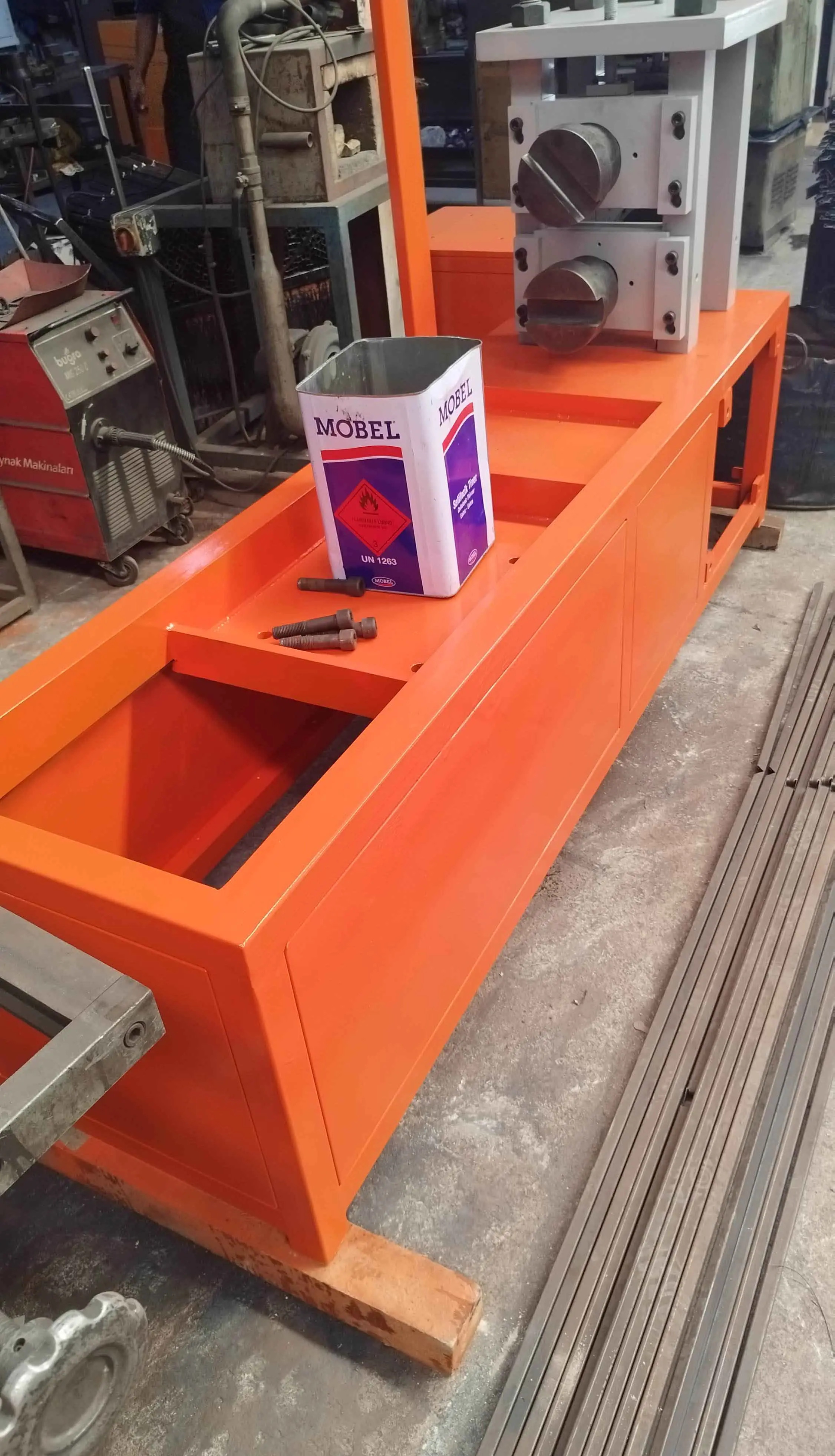

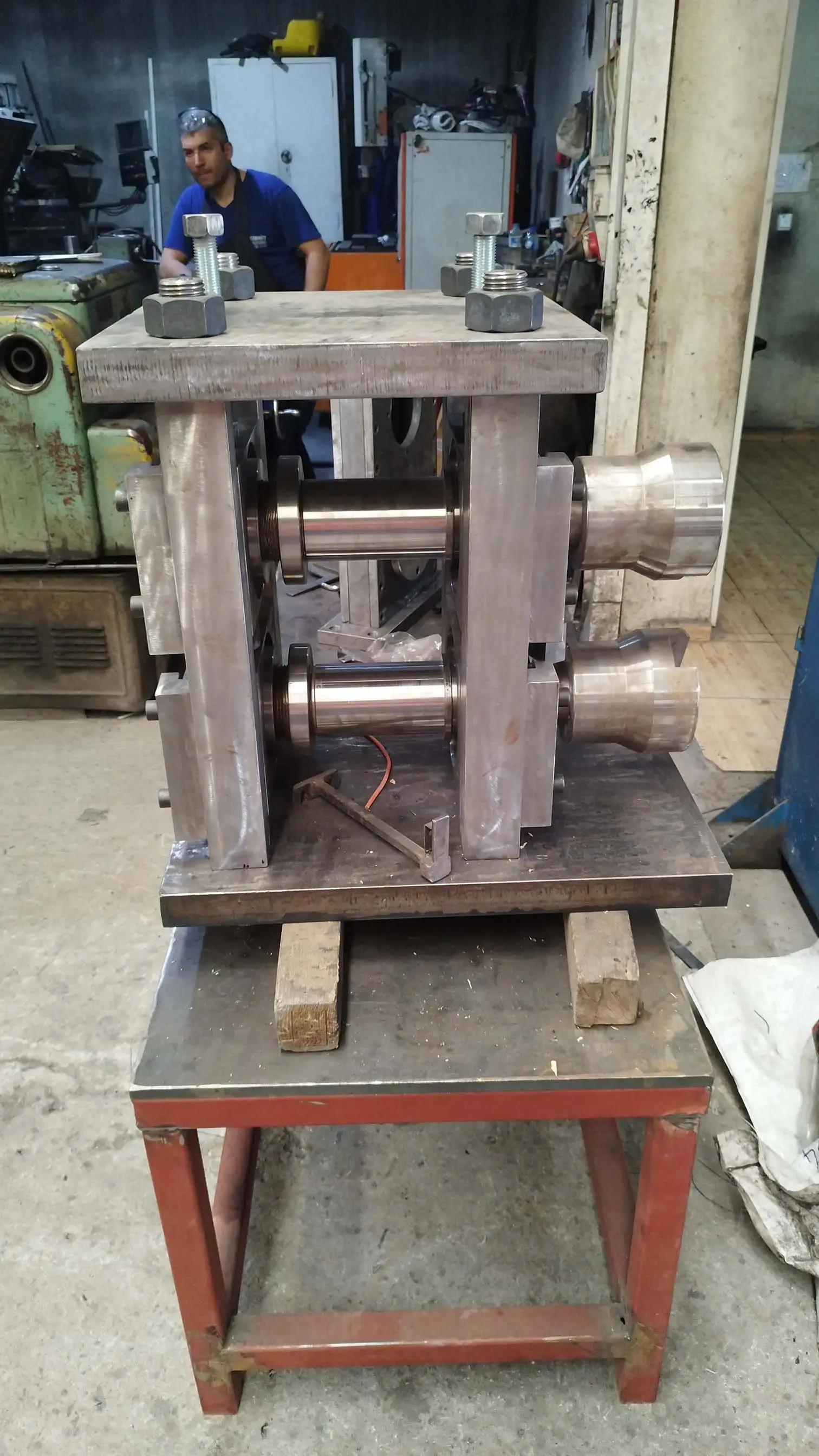

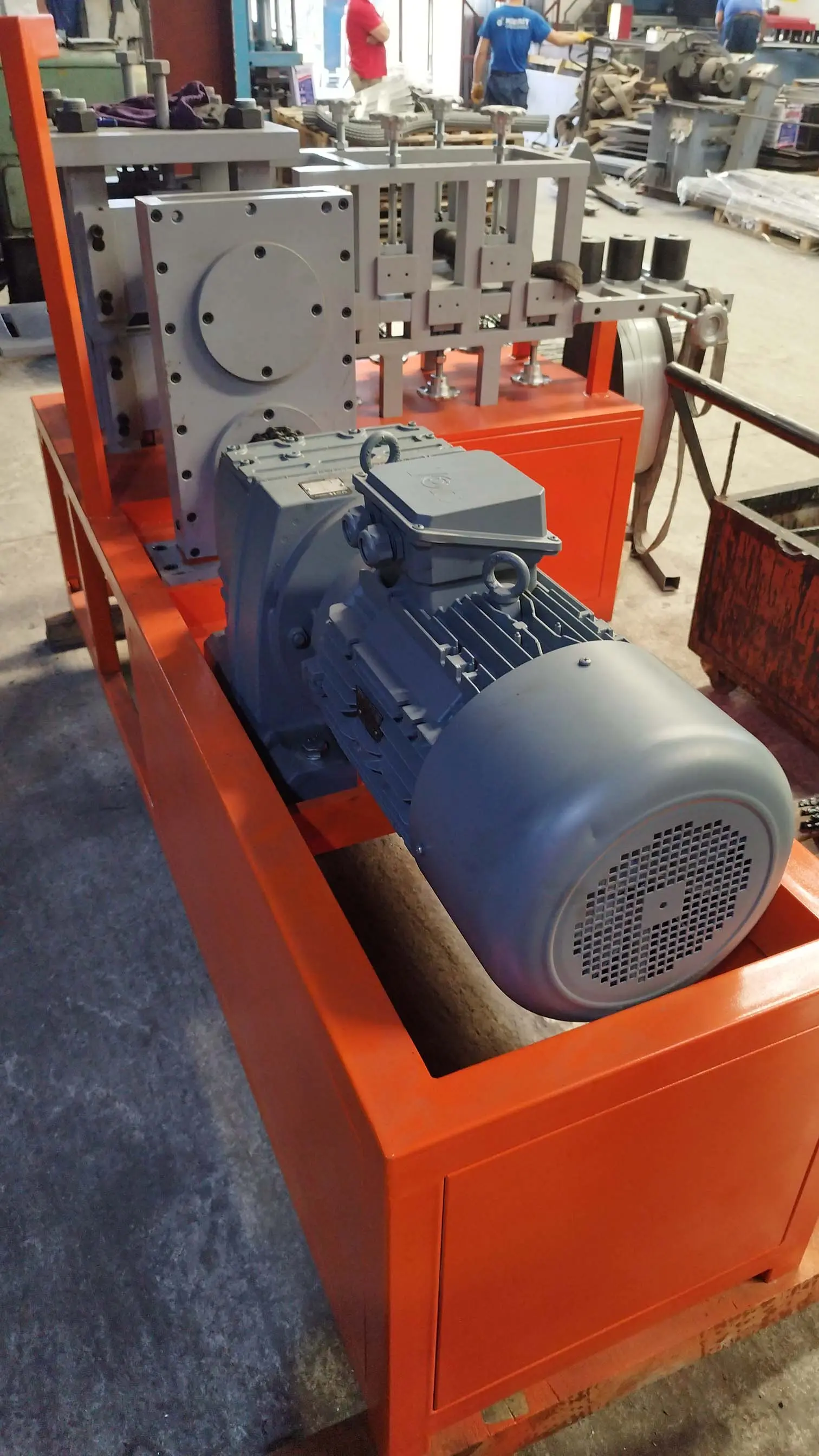

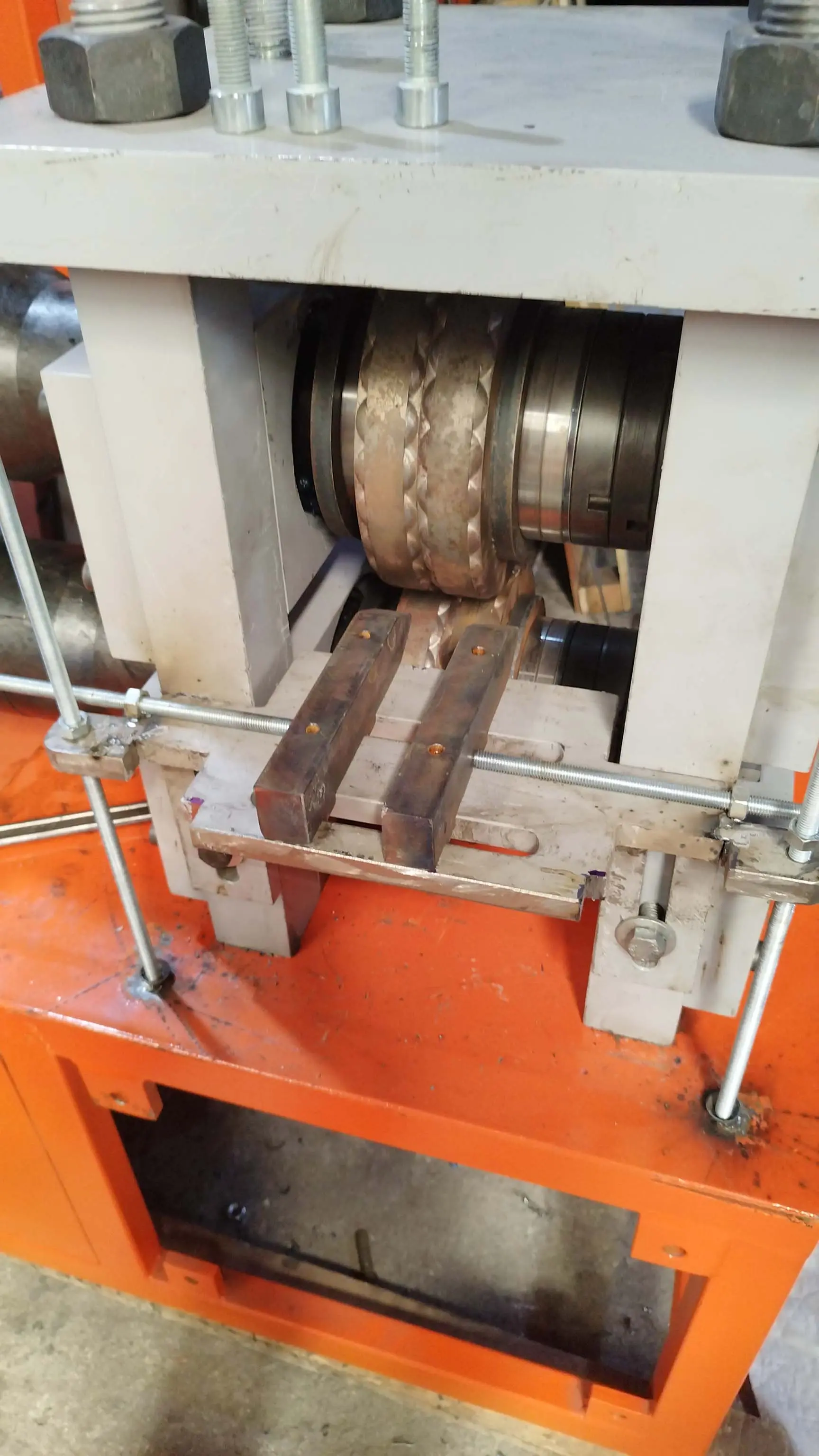

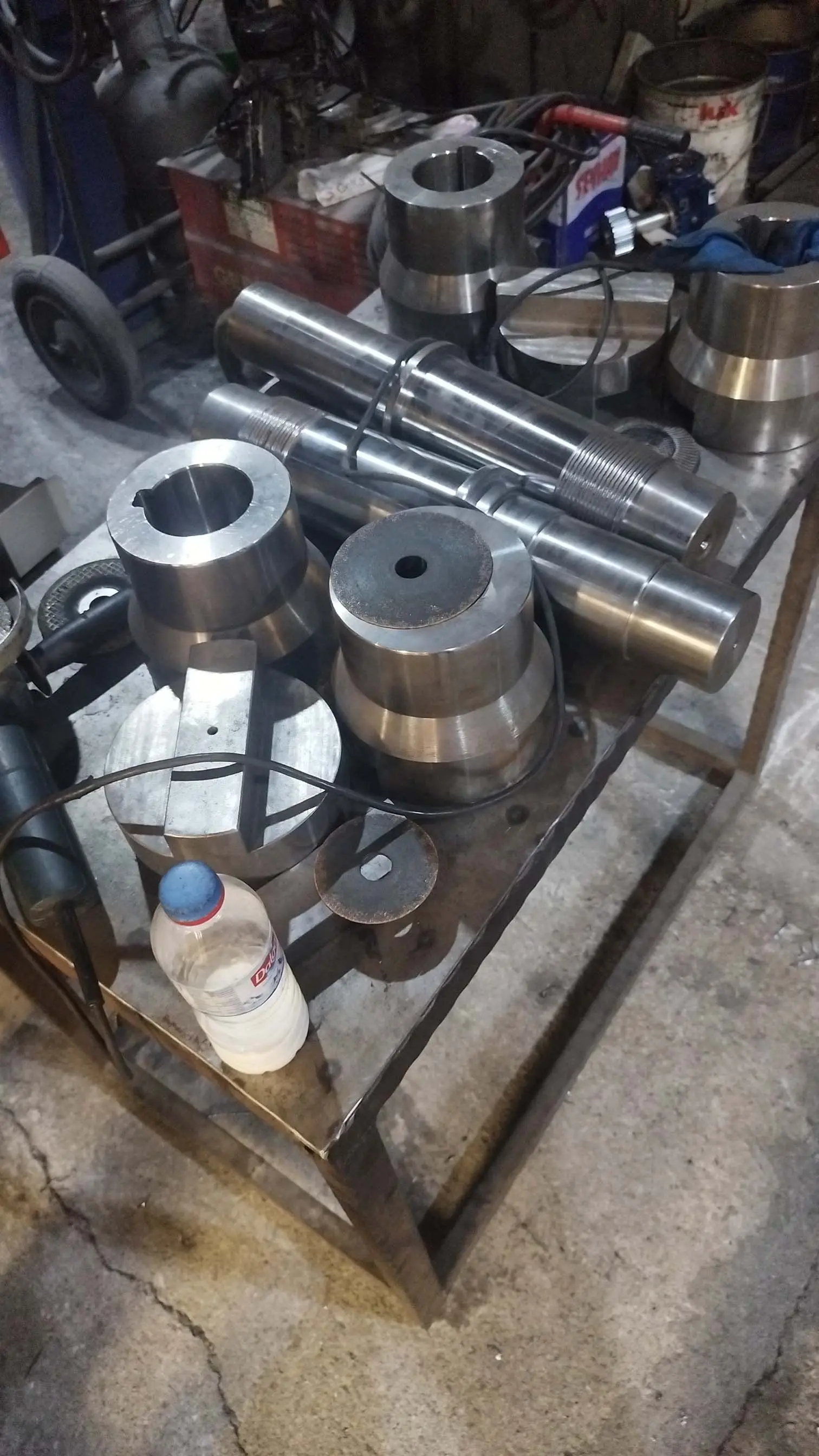

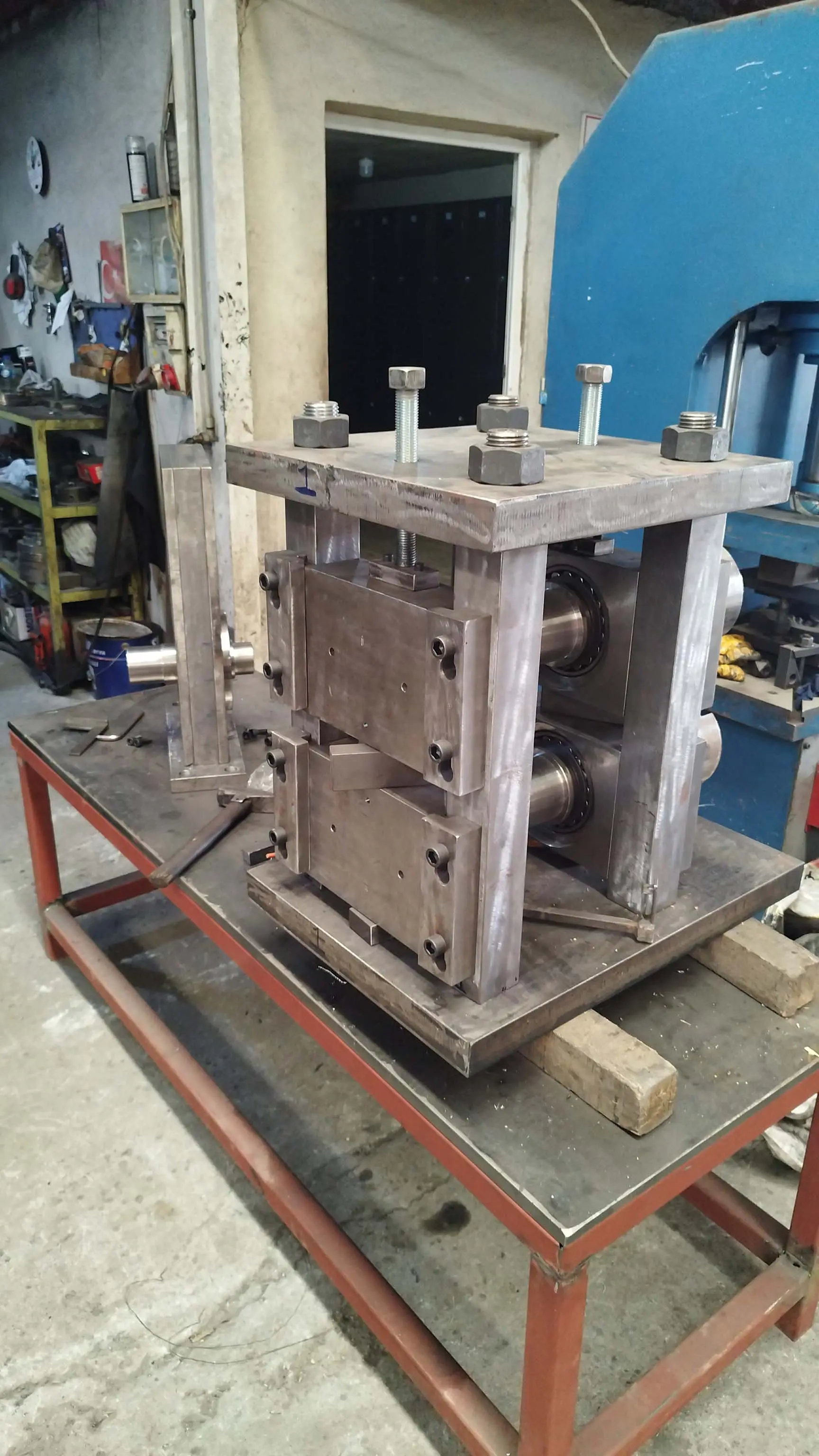

The wrought iron cold rolling machine has a sturdy body weighing approximately 2000 kg. The smallest motor we use is 30 kW, and with the combination of a helical gear reducer, you can roll tons of iron for hours without getting tired or overheating. In the new design of our machine, dimensions up to 100 × 100 millimeters can be cold rolled. It is designed for industrial large-scale production. For the initial setup of the machine, once the electrical system is set to manual mode, you can adjust everything within approximately ten to fifteen minutes. Then, in automatic mode, the machine operates continuously, allowing you to process a 6-meter-long profile or iron every 8 seconds. The molds used in the machine are made of special steel of German production. The total lifespan of a set of molds is approximately 250 tons. The reason you can achieve such high tonnages with the molds is that they undergo a very robust heat treatment and vacuum quenching processes. In addition to the molds that come with the machine, you can also choose from patterned models as an extra option. Please contact us for all these extra patterned molds. Different motor combinations and speed control units are optionally available for the machine.

Code	EMBOSE03
Motor	30 kW / 52 Revolutions
Optional Equipment	Patterned Molds + Speed Control Unit + Motor Reducer
Dimensions (Width x Length x Height cm.)	60 x 190 x 160 cm and 60 x 90 x 140 cm
Weight	2000kg

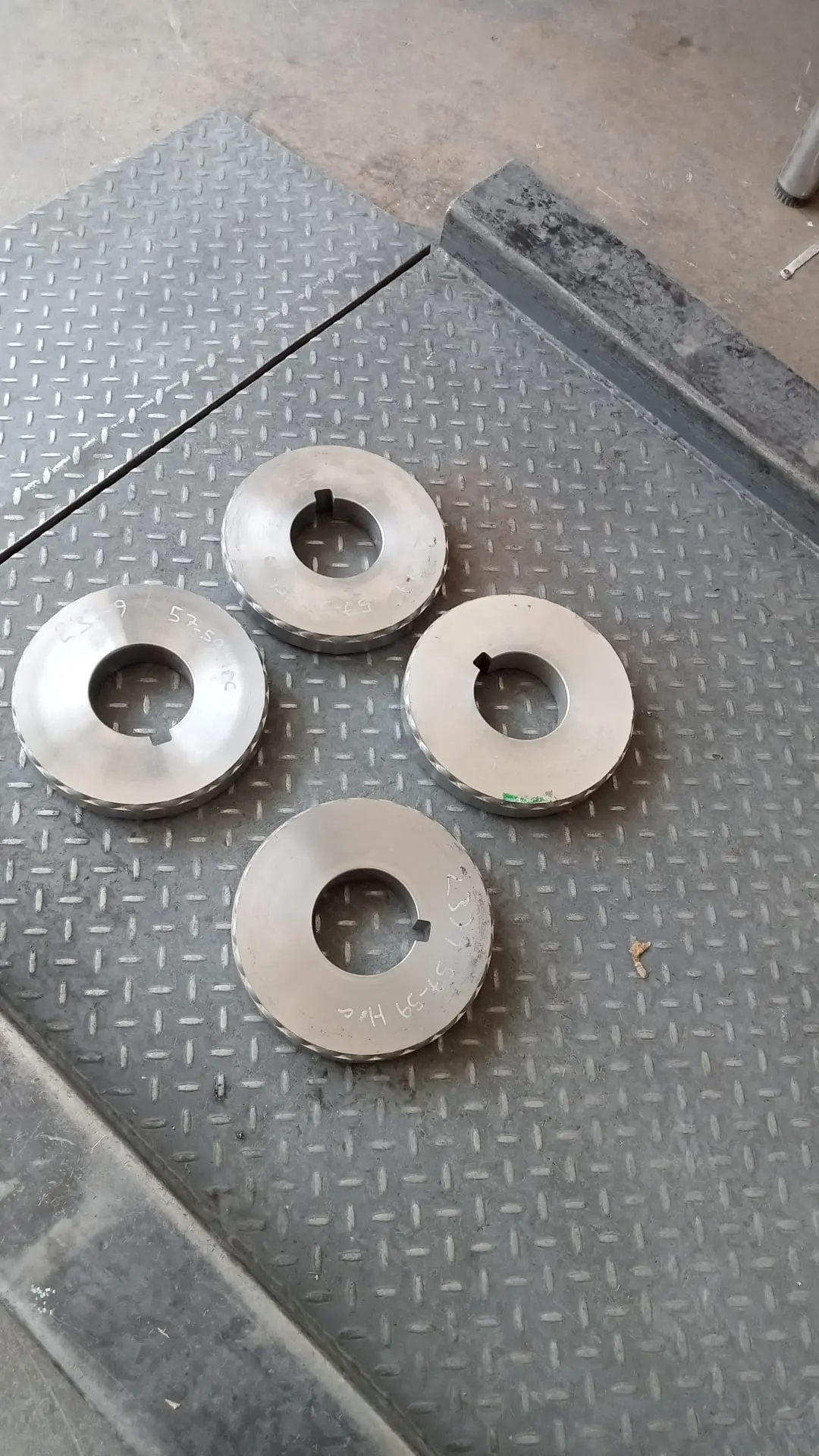

Free Molds 1 Set	Blade 1 set (4 molds) Wipe + Square 1 set (4 molds) Profile 1 set (4 molds) ***You will have one of these Mold sets for free

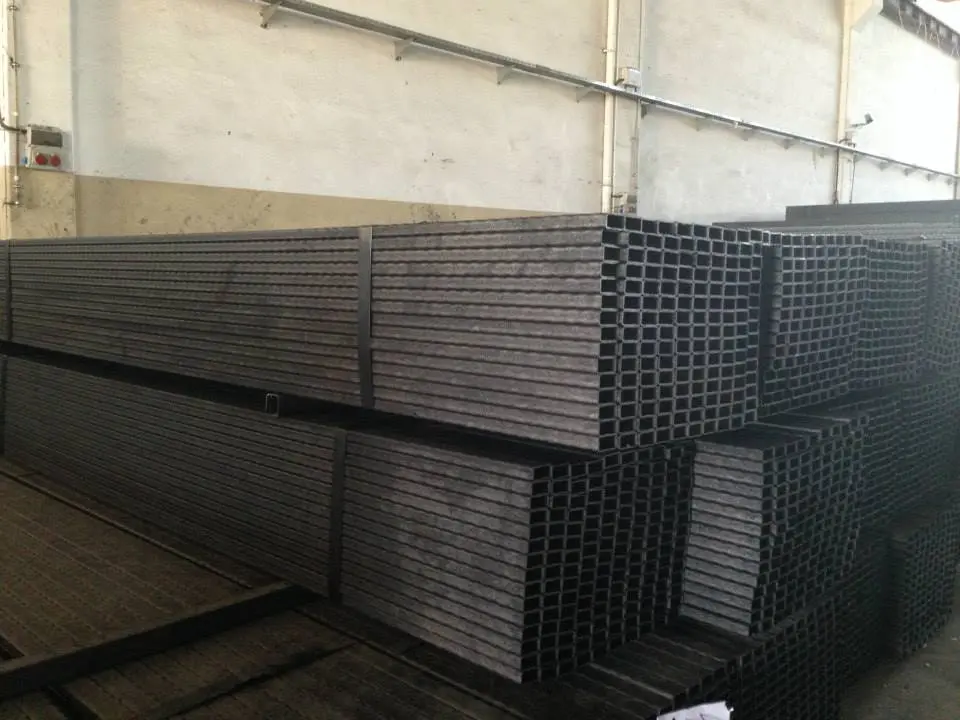

Dimensions Processable with Our Machine	Full Irons (Cold); 20x10 mm, 30x10 mm, 40x10 mm, 50x10 mm, 60x10 mm, 12x6 mm, 16x8 mm, 20x5 mm, 25x5 mm, 30x5 mm, 20x8 mm, 25x8 mm, 30x8 mm, 40x8 mm Square Bars: 10x10 mm, 12x12 mm, 14x14 mm, 16x16 mm, 18x18 mm, 20x20 mm, 25x25 mm, 15x15 mm. Profiles (Minimum thickness when cold: 1.5mm); 20x20 mm, 25x25 mm, 30x30 mm, 40x40 mm, 50x50 mm, 60x60 mm, 20x30 mm, 20x40 mm, 30x40 mm, 30x50 mm, 40x60 mm, 40x80 mm, 60x80 mm, 80x80 mm, 100x100 mm
Paid Molds	All patterned, patterned molds are subject to extra charge.
Production Capacity	20x20 box profile 24,000 pieces / mold 30x30 box profile 15,000 pieces / mold 30x10 blade iron 7,250 pieces / mold 40x10 blade iron 5,300 pieces / mold Generally, Mold Lifetimes are 3-4 years. In short, Molds pay for the machine twice. We provide new molds at very reasonable prices instead of the deformed ones.
Warranty	Our product is under company warranty for 12 months from the date of delivery. Electrical components and the motor are not covered by the warranty. When necessary, Cengizler Machinery Company sends a technician to solve the problems. The customer is responsible for the technician's travel, accommodation, meals, daily allowance, and the transportation cost of the necessary spare parts.
Payment	%50 deposit, %50 before delivery
Delivery Conditions	Mersin Factory

The 4 Key Advantages of the Cold Rolling Machine (EMBOSE03).
✔ Processing area of 100 mm x 100 mm.
✔ Industrial large-scale production.
✔ Robust body structure.
✔ Manual and automatic operating modes.

Why Should You Chose This Product?
✔ Heat-treated, durable, and long-lasting molds.
✔ The emergency button is available in our machine for emergency situations.
✔ We paint the machine in the color of your choice.
✔ We manufacture steel box for transportation, ensuring that your machinery remains undamaged during shipment.

The Most Popular Machine in Turkey. 4 Reasons
✔ Educational and Consulting Services: We provide training and consultancy services to customers for the correct and effective use of our products.
✔ We are proud: Our machines are operating in more than 50 countries.
✔ Professional After-Sales Support and Service: We offer after-sales support and service to our customers.
✔ The machine you purchase is covered by our companys warranty for 12 months.
