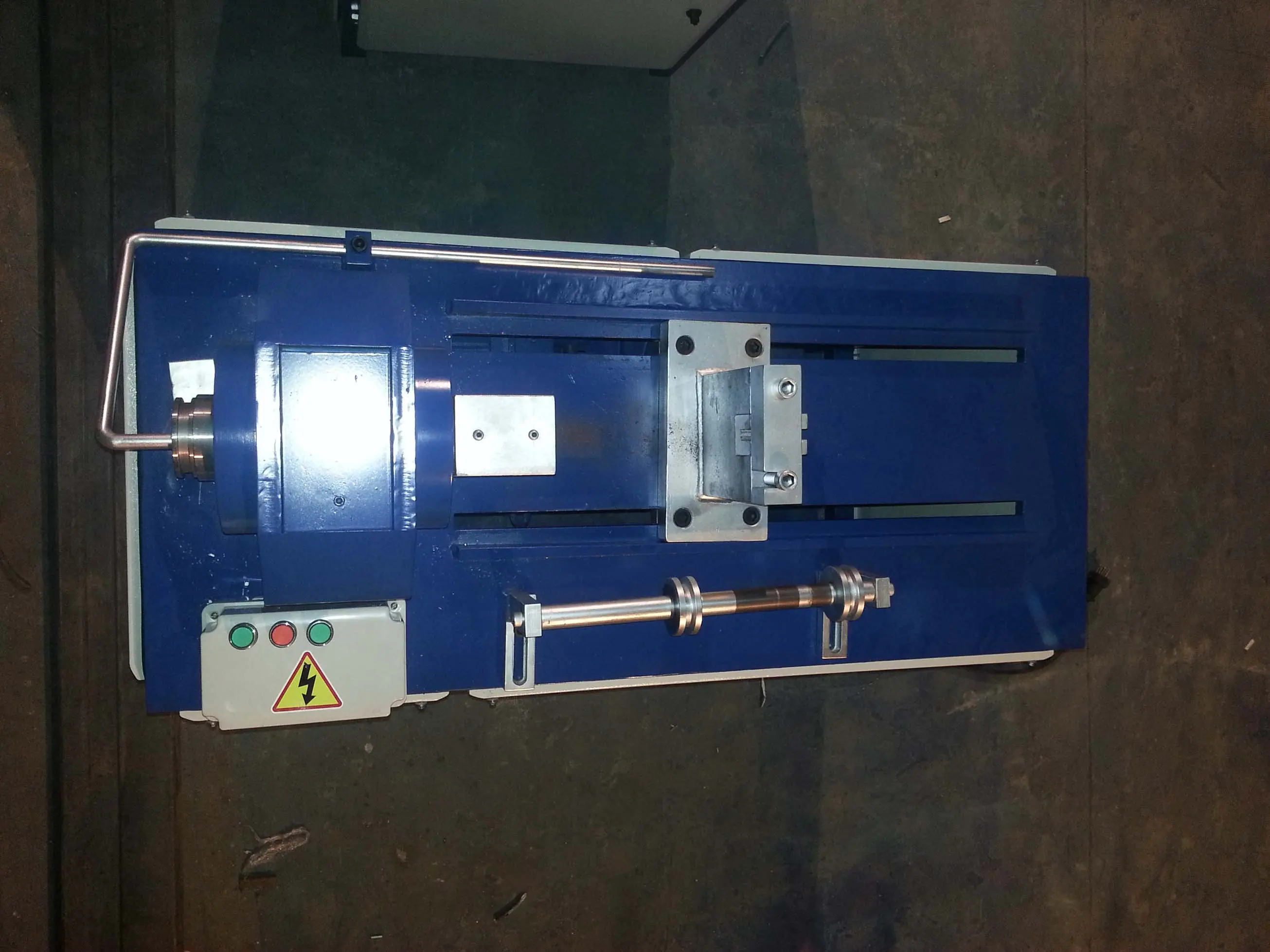

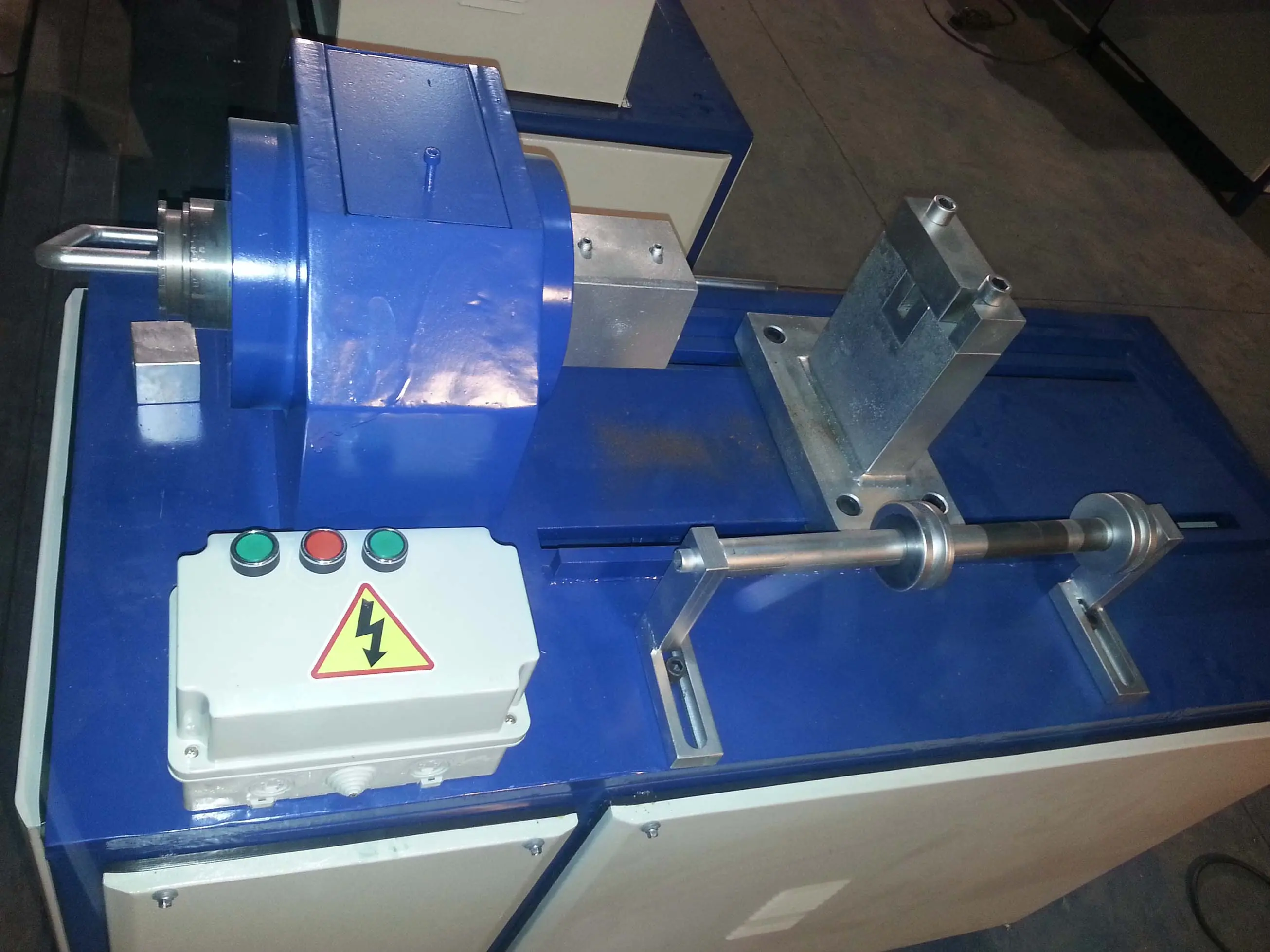

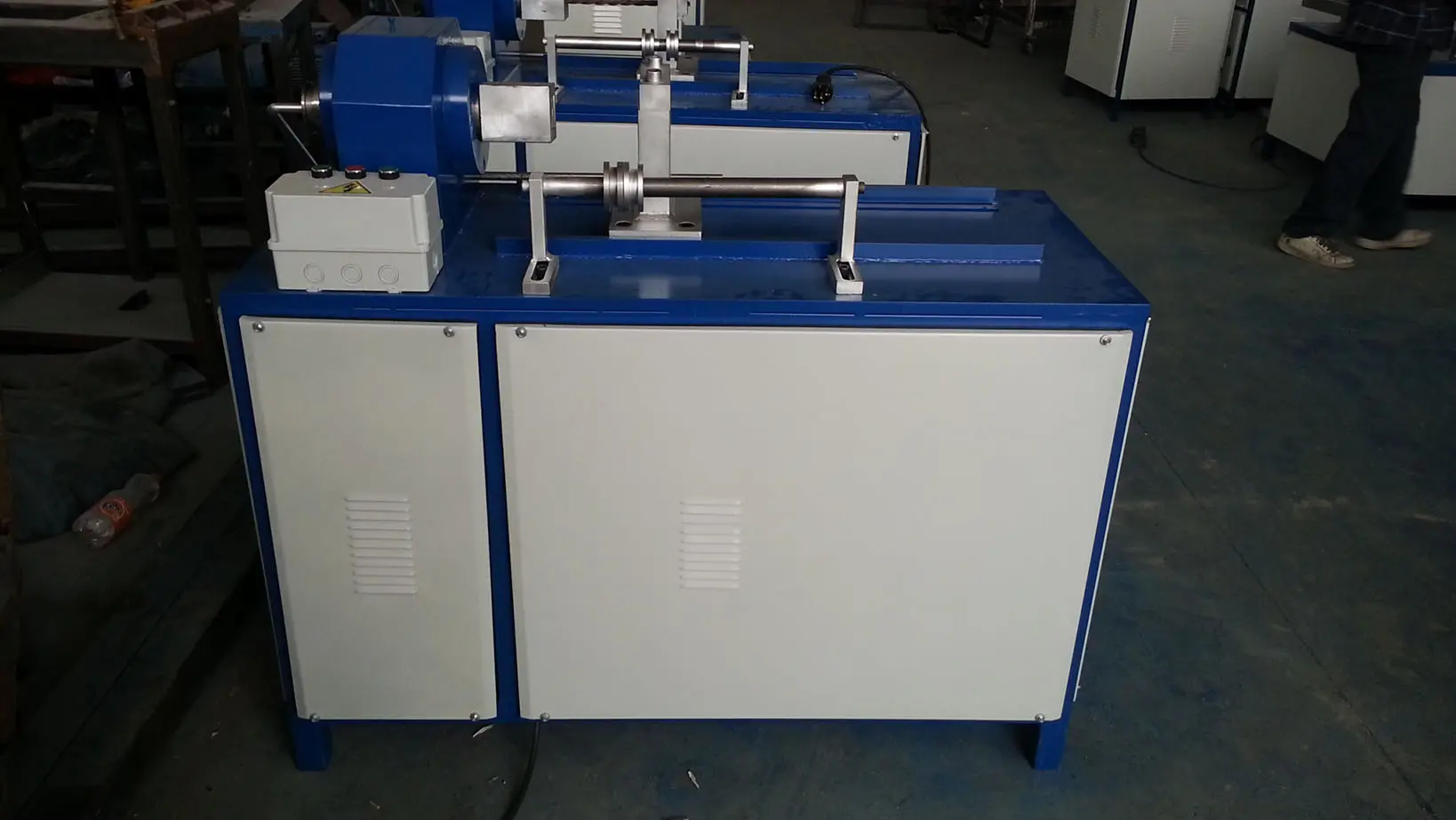

Ring And Twisting Machine (HNK02)

Artisanal_Ring_Twisting_Innovation

Crafted_Twisting_Machine_Design

Creative_Ring_Twisting_Process

Dynamic_Twisting_Technology

Dynamic_Twisting_Work

Elegant_Ring_Twisting_Technique

Formed_Ring_Twisting_Details

Intricate_Ring_Twisting_Sculpture

Metal_Ring_Twisting_Craft

Precision_Twisting_Artistry

Ring_Twisting_Craftsmanship

Unique_Twisting_Creation

Wrought_Twisting_Technology

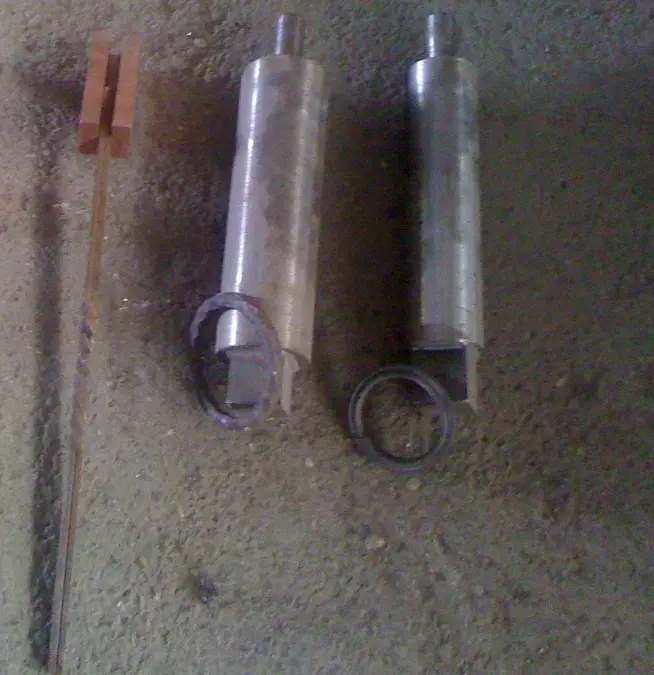

mold

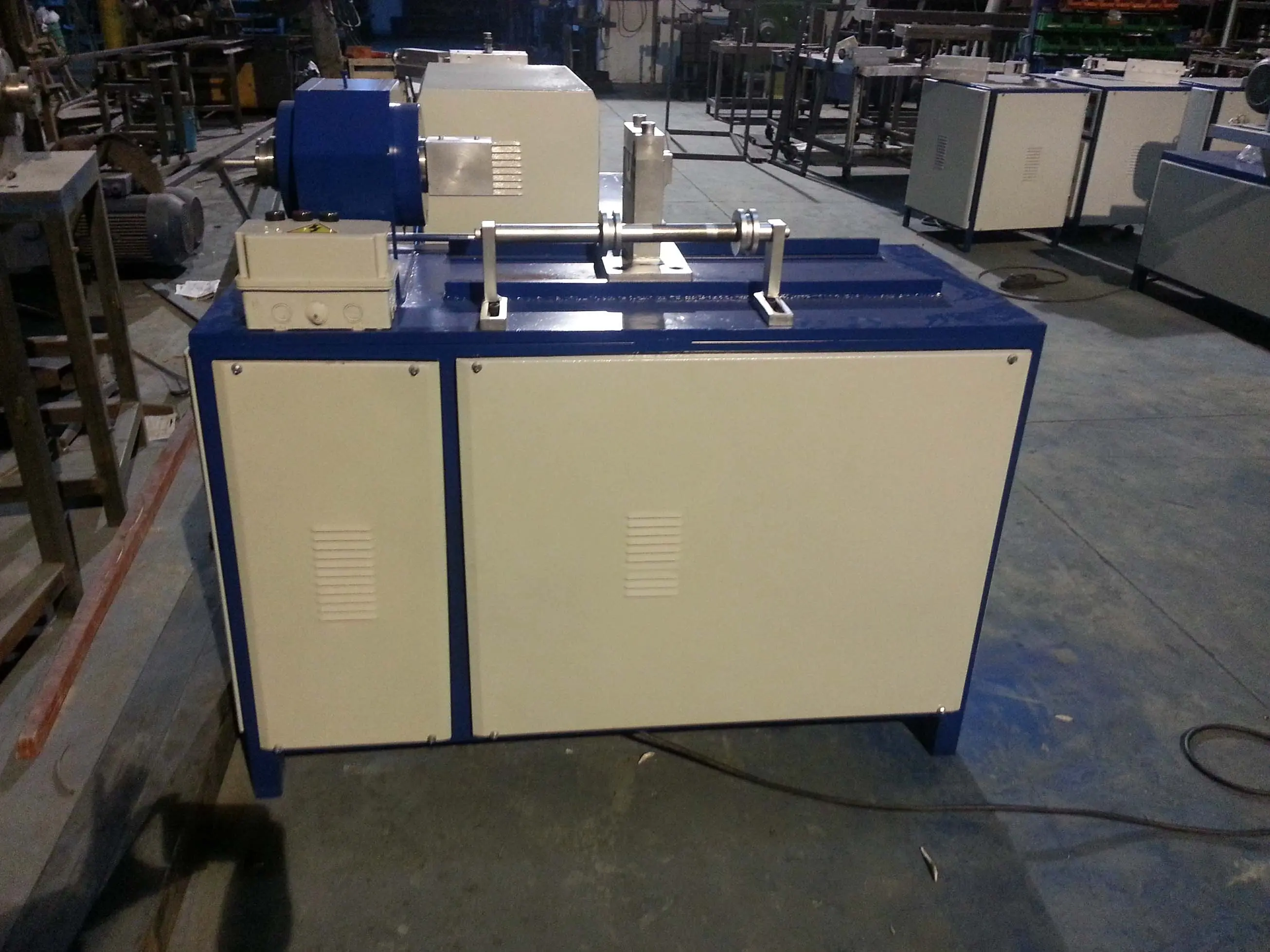

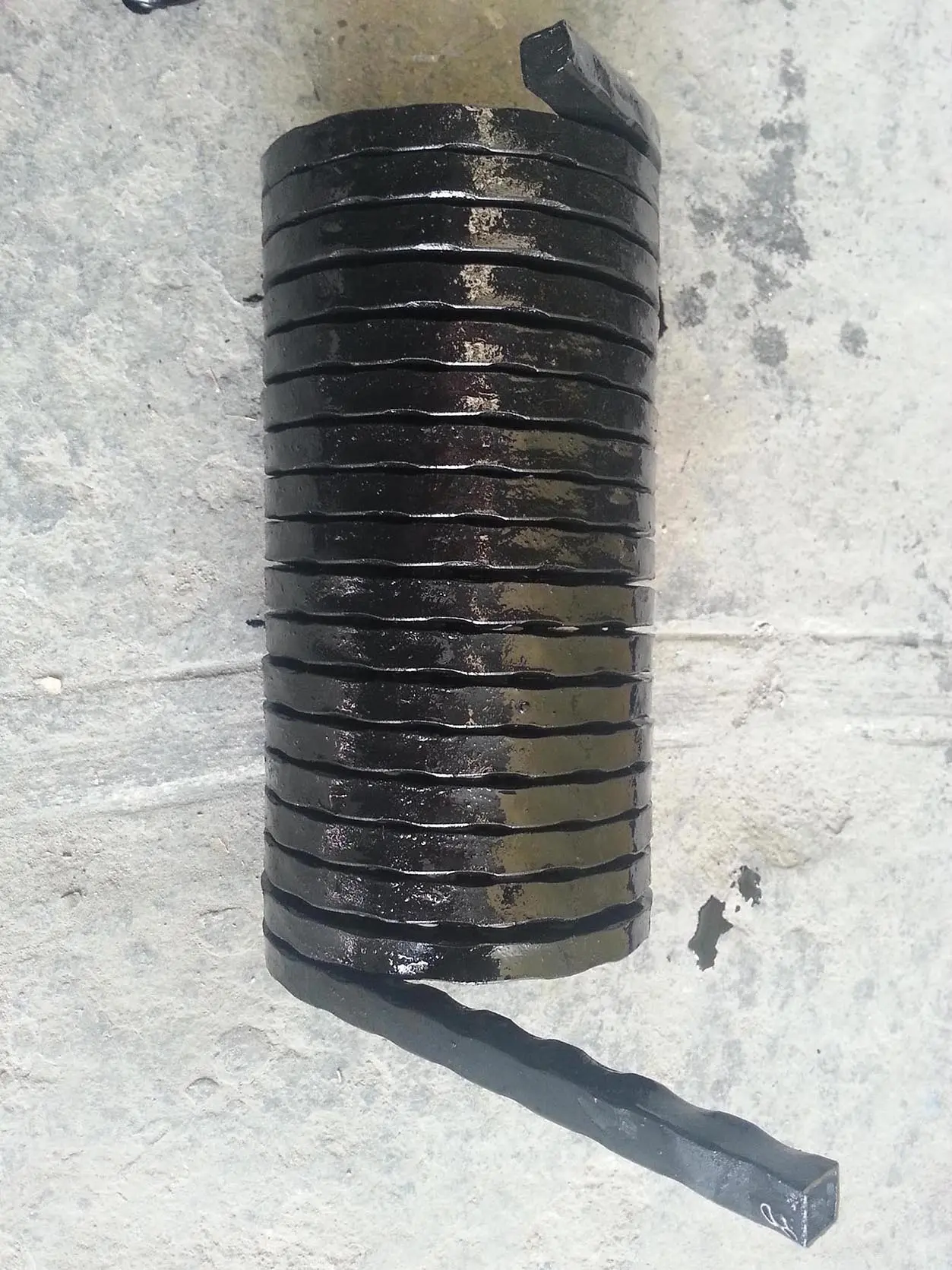

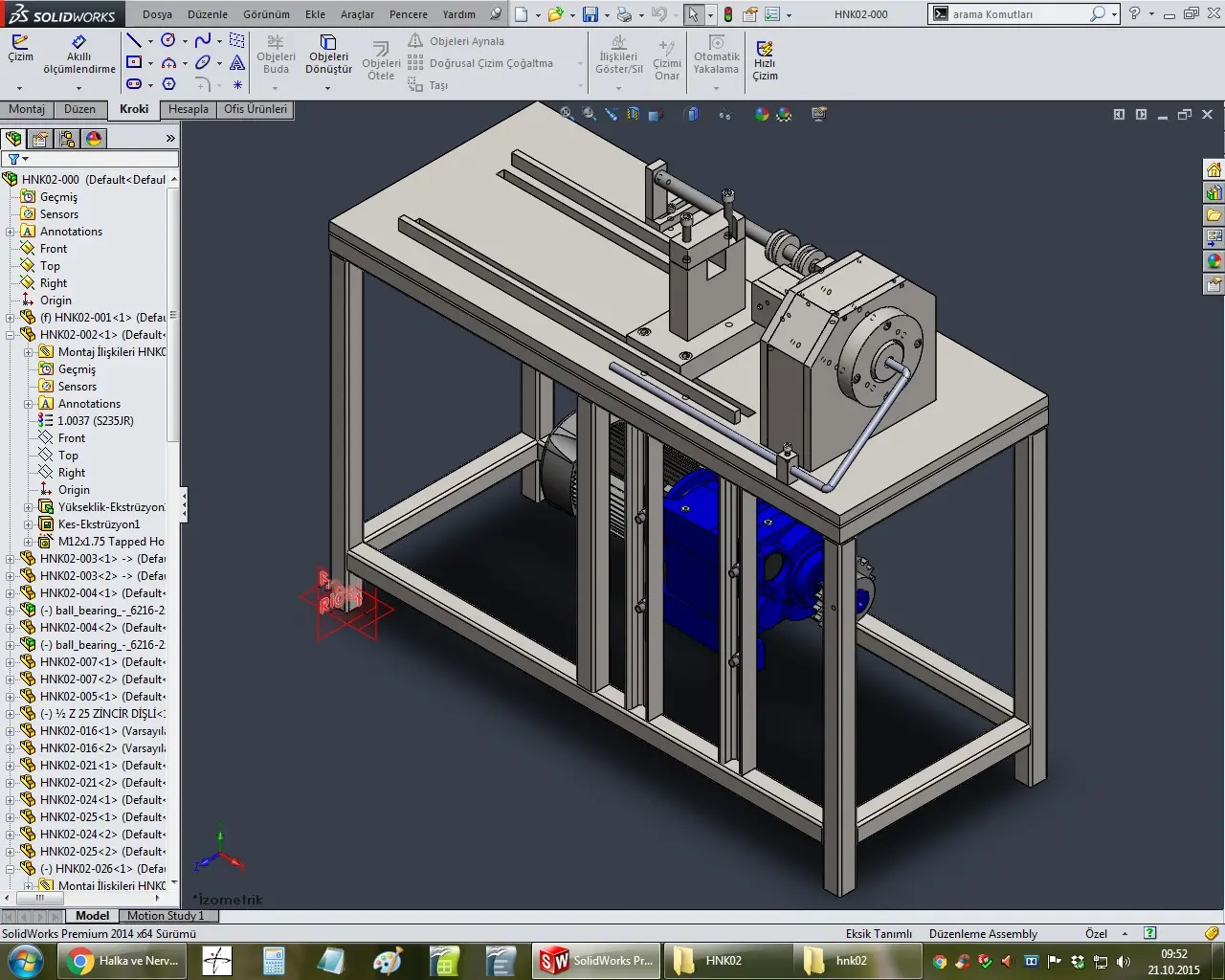

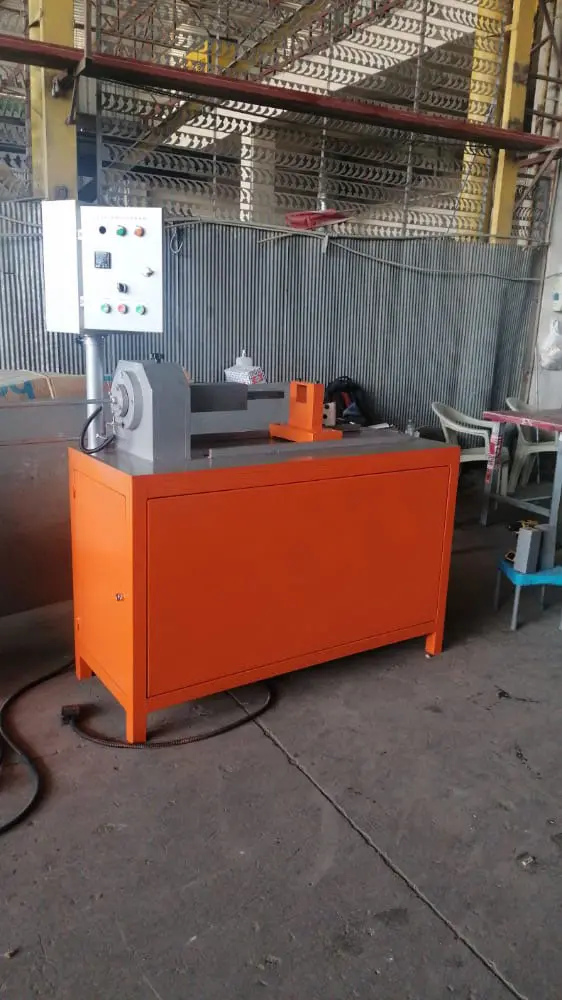

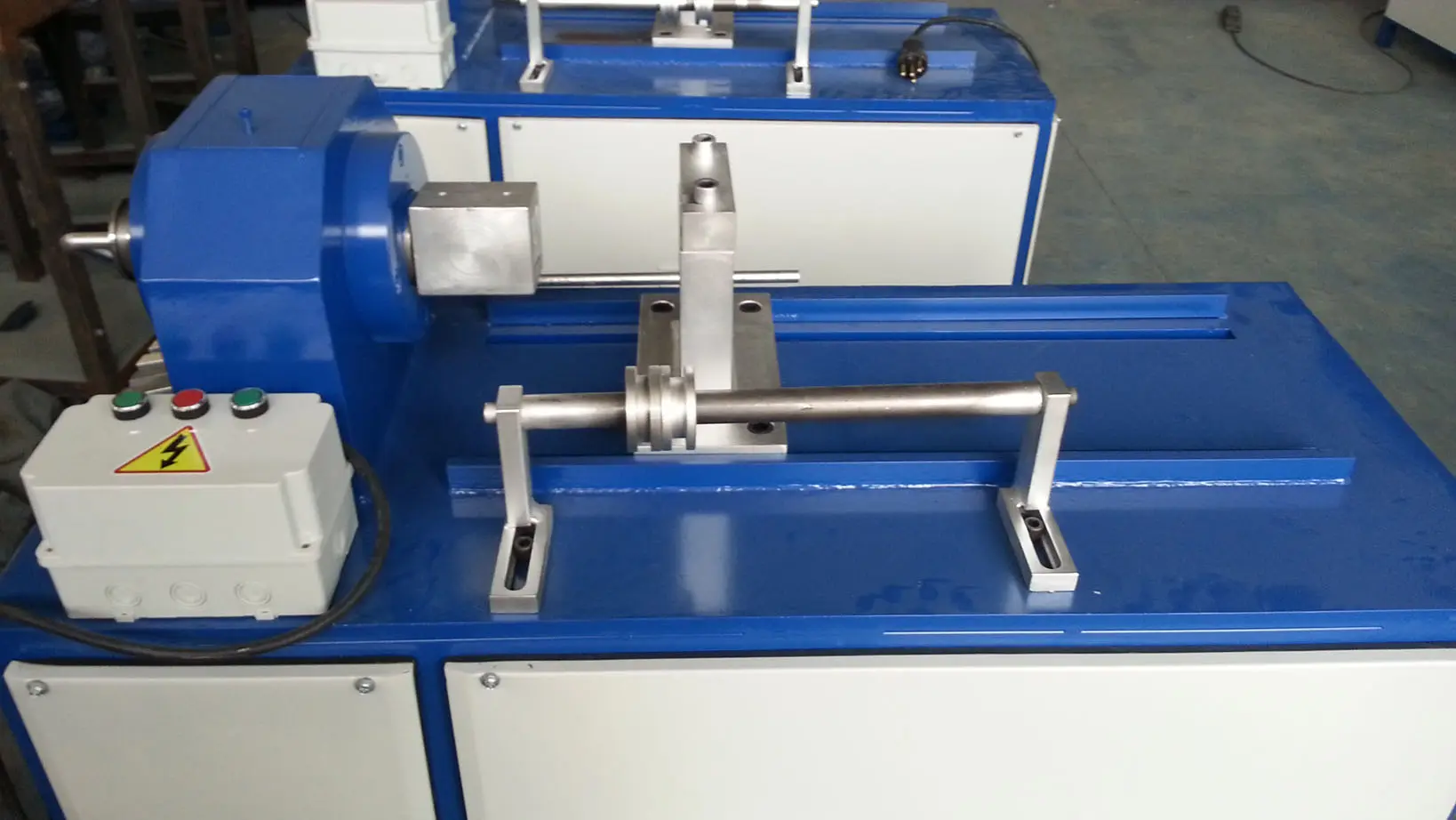

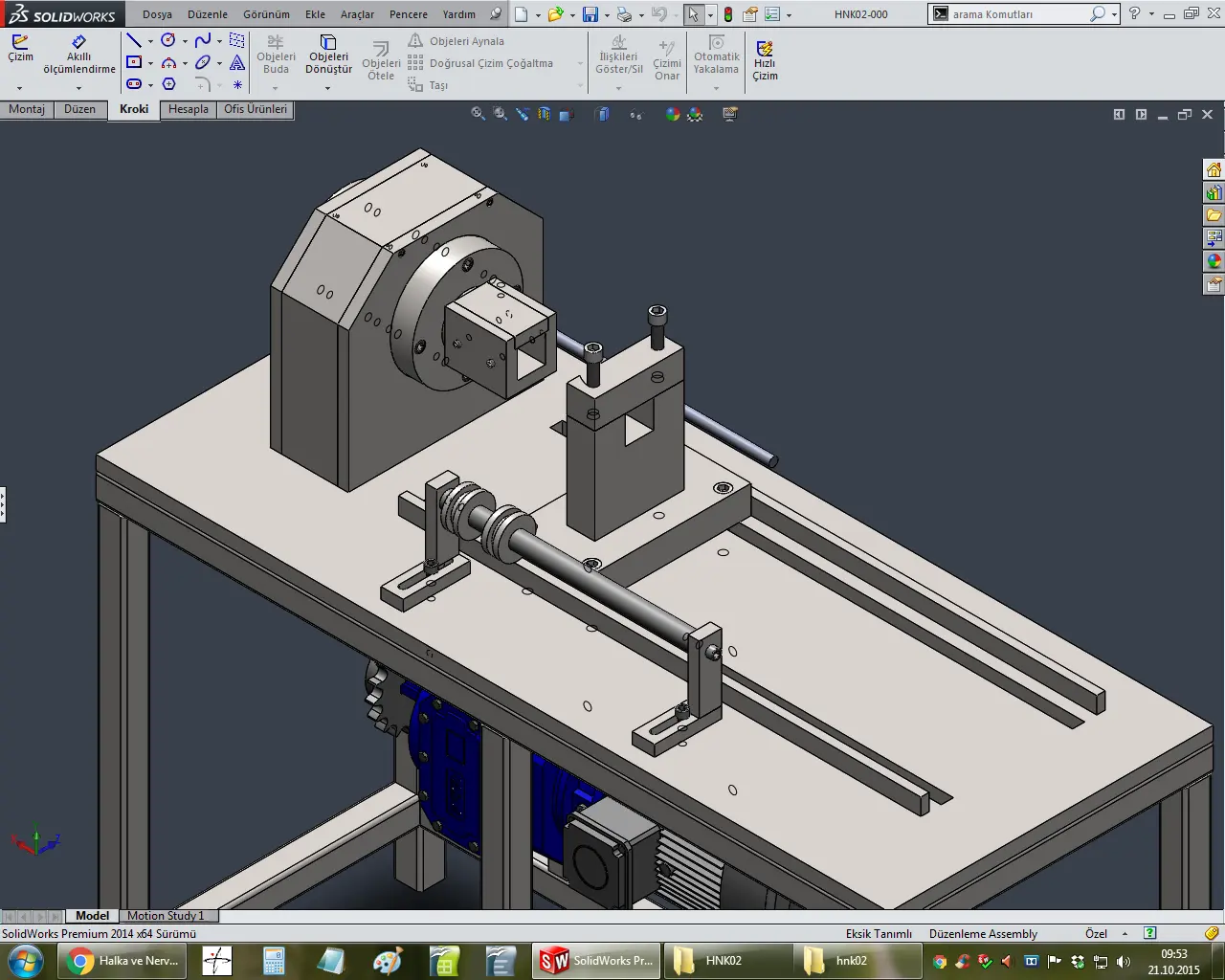

The 12-24mm square blade is used in the production of rings with ribs, ranging from 10cm to 12cm in diameter. If desired, additional molds can be used to add ribs to both the blade and the fillet. It can produce ribs of the desired length on any part of the iron. When you purchase our machine, you will also receive a cutting and bending adjustment table. The Wrought Iron Ring Rib Cone machine is a fantastic machine with two functions and an economical cost. In designing this machine, we studied the machine designs of the German company Glaser, resulting in an excellent machine. When combined with a 4 kW motor with conical gears, and all these mechanical parts are combined with automation, it results in a flexible, interchangeable, efficient, and fast machine. With such infrastructure, you can easily perform processes like ribbing; you can apply a ribbing process to any point on a 6-meter iron. Using the 10 cm and 12 cm dies that come with the machine, you can turn all irons up to 24 mm into rings, such as 10 × 10 mm, 12 × 12 mm, 14 × 14 mm, 16 × 16 mm, and so on. With different die sizes, it is possible to produce larger or smaller wrought iron rings. After the initial setup, the machine operates entirely automatically, providing you with a very fast, practical, and effective production environment throughout the day.

	Description
CODE	HNK02
Treatment	Thermal Treatment, Vacuum in Molds
Production Capacity	4800 rings / 8 hours 960 ribs
Control Unit	Switch + NC + Pedal
Max. Bending Thickness	24mm
Molds	12mm & 24mm square Ribs 10cm – 12cm Ring
Motor / Hydraulic	4 kw / 22 rev 380V 3 Phase Motor
Dimensions (Width x Length x Height cm.)	155x65x125cm
Weight	450kg
Warranty	Our product is under company warranty for 12 months from the delivery date. Electrical components and the motor are not covered by the warranty. When necessary, Cengizler Machinery Company sends a technician to resolve issues. The customer is responsible for the technician's travel, accommodation, meals, daily allowance, and the transportation cost of required spare parts.
Delivery Terms	Mersin Factory

The 4 Key Advantages of the Ring and Twisting Machine are:
✔ Thick irons can be bent thanks to the powerful reducer.

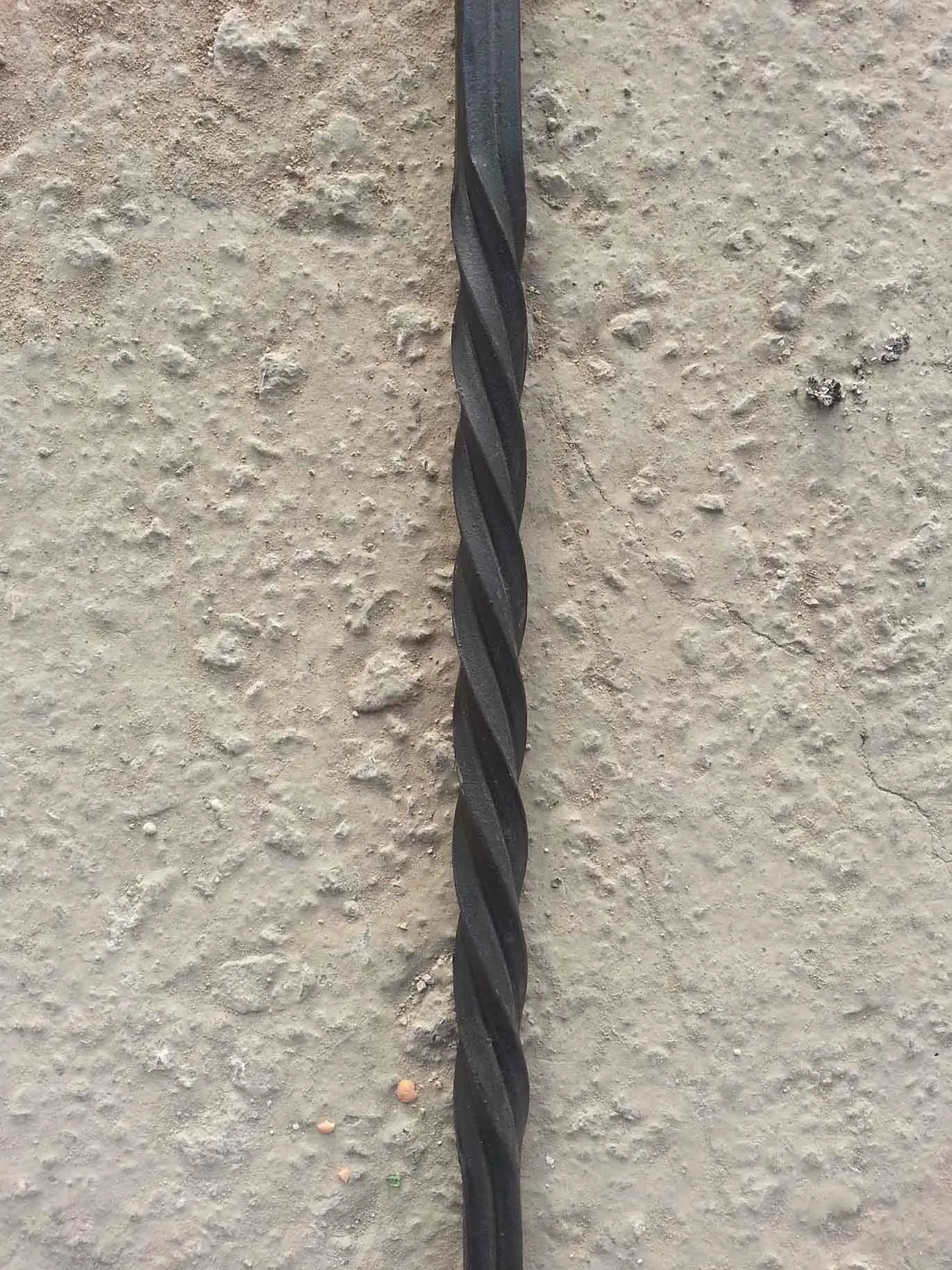

✔ You can Twist the iron at any point you desire.
✔ Electrical automation and counter
✔ Molds can be produced for all intermediate dimensions.

Why Should You Chose This Product?
✔ It can work for both standard and non-standard dimensions.
✔ The emergency button is available in our machine for emergency situations.

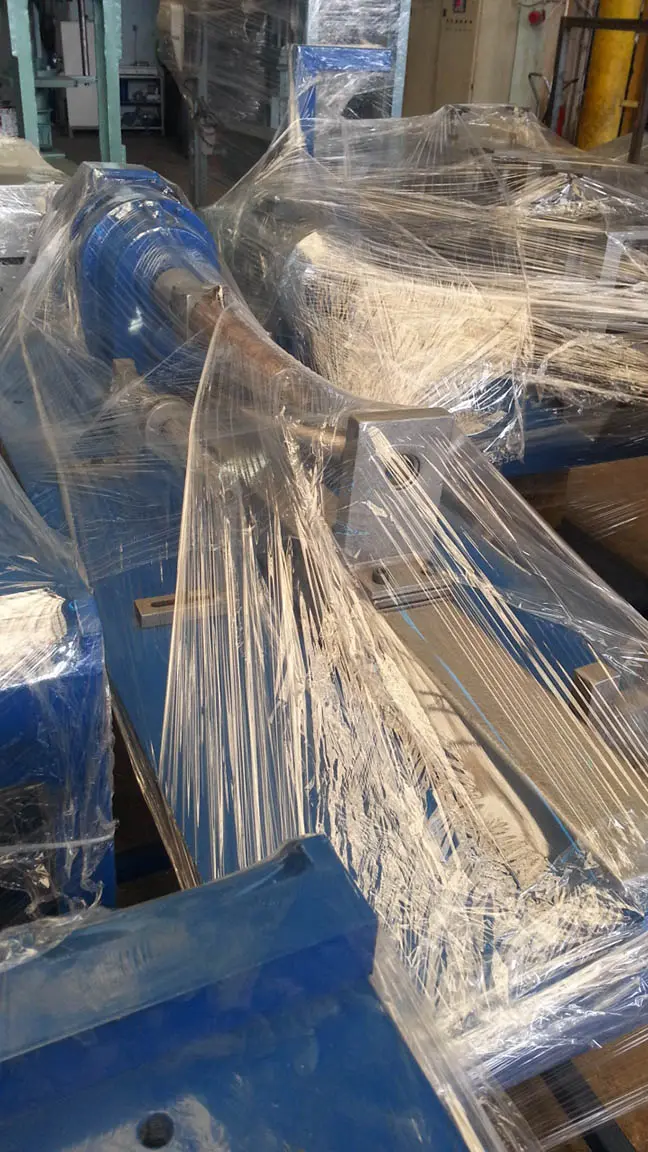

✔ We manufacture steel box for transportation, ensuring that your machinery remains undamaged during shipment.

The Most Popular Machine in Turkey. 4 Reasons
✔ Educational and Consulting Services: We provide training and consultancy services to customers for the correct and effective use of our products.
✔ We are proud: Our machines are operating in more than 50 countries.
✔ Professional After-Sales Support and Service: We offer after-sales support and service to our customers.
✔ The machine you purchase is covered by our companys warranty for 12 months.
